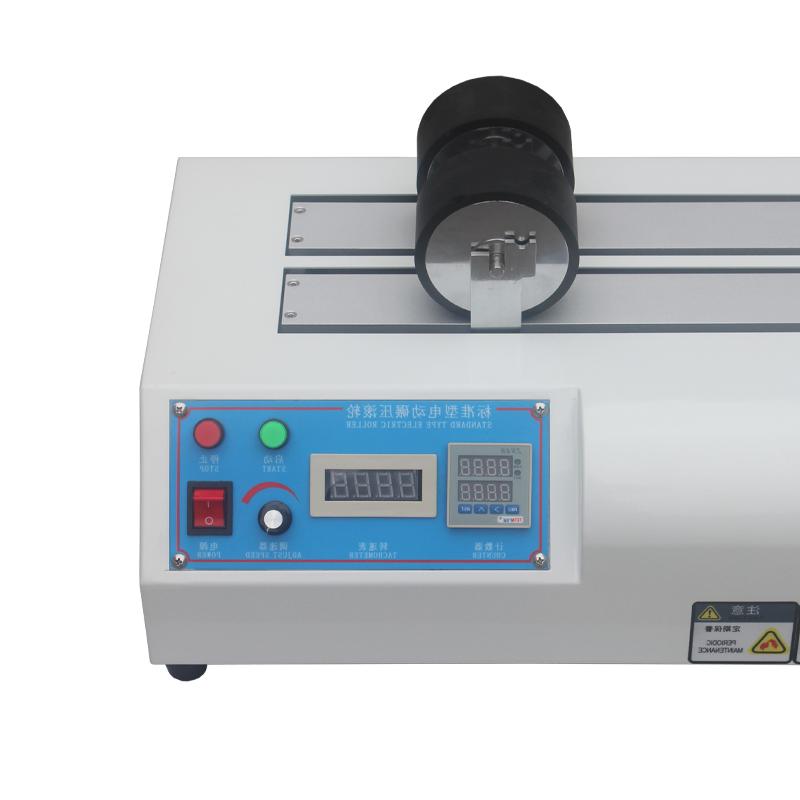

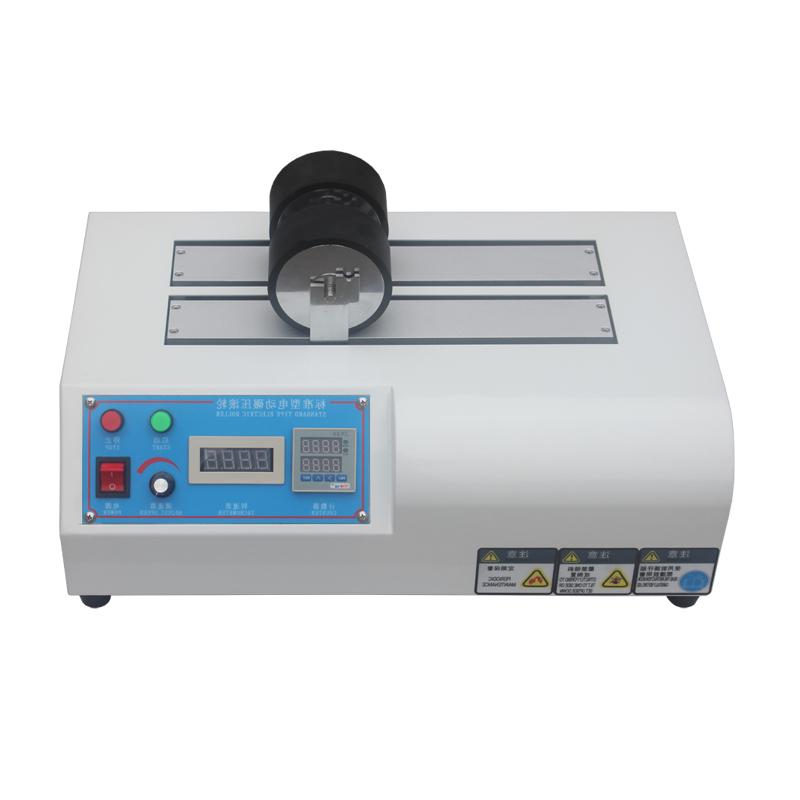

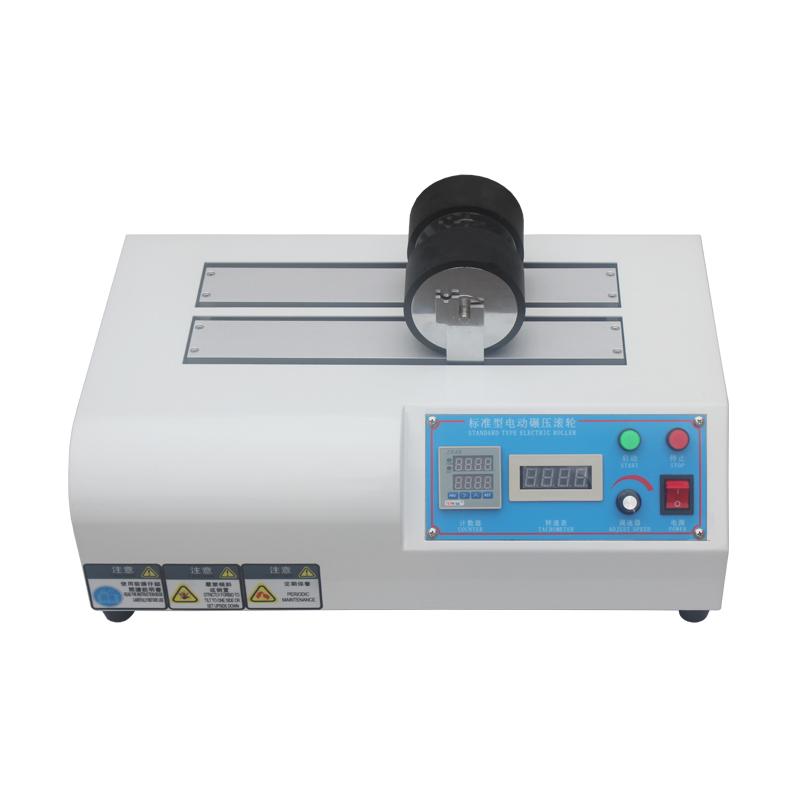

Bolide NBC-5602B Electric Roller Testing Machine, Double Station 2000g Load 300mm/min

Name: Bolide NBC-5602B Electric Roller Testing Machine, Double Station 2000g Load 300mm/min
Brand: BoLaiDe
SKU: NB045718
Price: 582.0 USD
Availability: InStock

$ 582.00Ex works

The dual-station design can simultaneously carry out two sets of tests, the roller load is 2000g +/- 5g, and the rolling speed is 300mm/min, which conforms to CNS-11888 and PSTC-8 standards to ensure uniform preparation of the sample.

Model

NBC-5602B

Get Quote

Category : Other Instruments

Brand : BoLaiDe

SKU : NB045718

Service :The delivery and service By NBCLab.Com

Overview

NBC-5602B is a double-station electric roller testing machine, which can be used for the preparation of adhesive tape Peel Strength, Tack holding and other test specimens. At a fixed pressure and speed, the adhesive tape sample is flat and evenly adhered to the standard test substrate.

Features

1. Double station design, allowing two sets of tests to be conducted simultaneously 2. Electric rolling roller, easy to operate 3. Fixed pressure and speed control to ensure test conformity 4. Suitable for Adhesive Tape Peel Strength and Tack Preparation

Principle

Through the electric rolling roller at a fixed pressure and speed, the adhesive tape sample is flattened and evenly adhered to the standard test substrate, providing standardized specimens for subsequent Peel Strength, Tack and other tests.

Standards

CNS-11888、PSTC-8

Steps

1. Prepare adhesive tape samples and standard test substrates 2. Place the specimen on the substrate 3. Start the device and press it at a speed of 300mm/min 4. Evenly rolling at 2000g +/- 5g fixed pressure 5. Complete the specimen preparation for subsequent tests

Notice

• Power supply voltage is 1, AC220V, 50/60Hz, 2A • Check whether the roller load meets the requirements of 2000g +/- 5g before use • Note that the rubber Hardness of the roller is kept at Hs80 +/- 5 (Shore A type) • Keep the equipment clean to avoid affecting the test results • Pay attention to safety during operation to avoid pinching

Roller load
2000g±5g
Roller Size
Φ84*45mm
Rubber Hardness
HS80 +/- 5 (Shore A)
thickness
About 6mm
Rolling speed
300mm/min
Number of rounds
2 groups
Dimension
520*400*250mm
weight
20kg
Power supply Voltage
1∮，AC 220V，50/60Hz，2A
