Overview

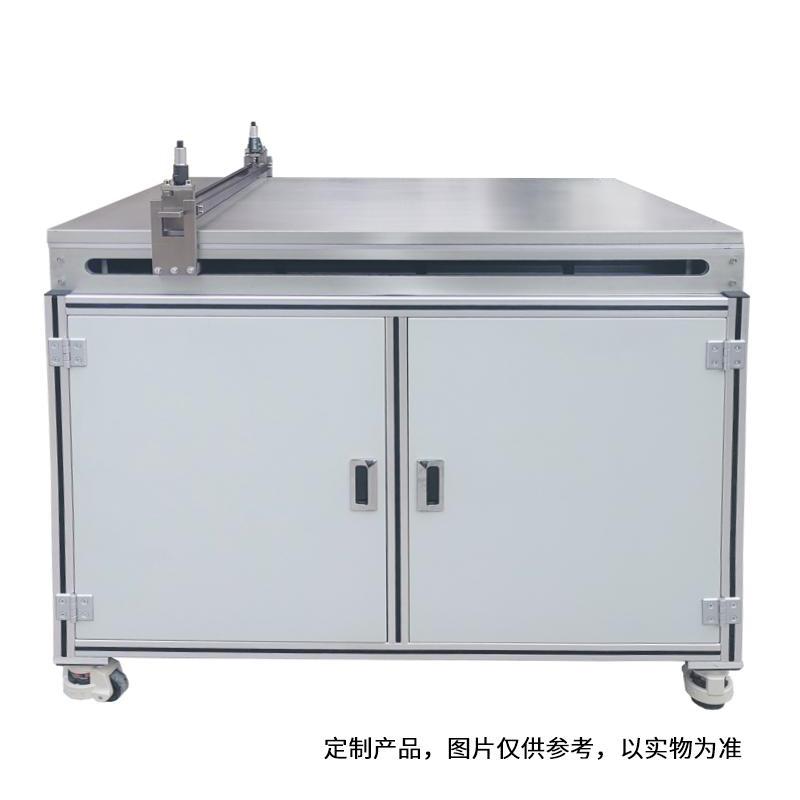

TBJ-X1-DJ6 Floor-Standing drawdown blade Vacuum chuck Film Applicator is a customized Floor-Standing Coater with Vacuum chuck function, effective coating area 600 * 900mm, using green digital differential. Commonly used in laboratory film, suitable for Moulding in Coating, inks, Polymer Materials, Films, Glues, Pressure sensitive adhesives and other industries.
Features
1. Vacuum chuck function ensures Spreader stability
2. High Accuracy Blade Coating, accuracy up to +/- 0.003mm
3. Spreader thickness range, 0~ 10mm
4. Adjustable coating speed, 5~ 180mm/s (< 5mm/s can be customized)
5. Infinitely variable speed control
6. Aluminum alloy coating table material
7. Customizable automatic inking system, air jet system device, UV solid inclusion device
Principle
The Film Applicator uses Blade Coating method, Vacuum chuck fixed substrate, using precision drawdown blade to control the thickness of Spreader, with digital differential to precisely adjust the coating speed and thickness to achieve uniform film.
Applications
Coatings, inks, polymer materials, films, glues, Pressure sensitive adhesives
Steps
1. Prepare the substrate and place it on the coating table
2. Vacuum chuck system fixed substrate
3. Set the required Spreader thickness and rate parameters
4. Start the Spreader program for automatic filming
5. Turn off the device to remove the sample after completing the Spreader
Notice
• Power supply voltage 220V 50Hz before use
• Spreader thickness setting must not exceed 10mm range
• Vacuum chuck system needs regular inspection and maintenance
• Customization functions need to be clearly stated when ordering
• Dimensions of equipment are non-standard customization, subject to actual order
