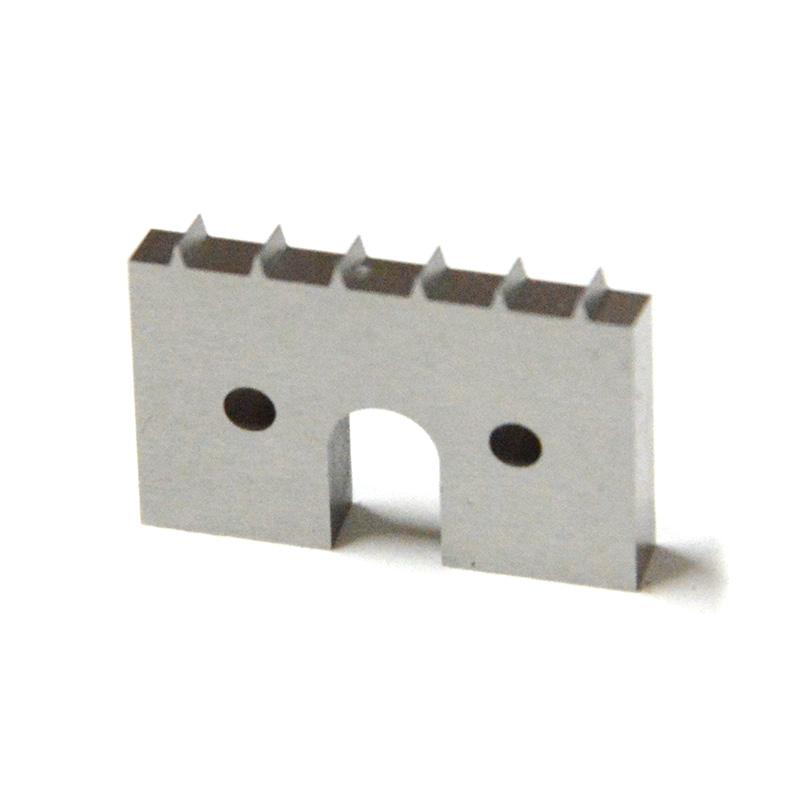

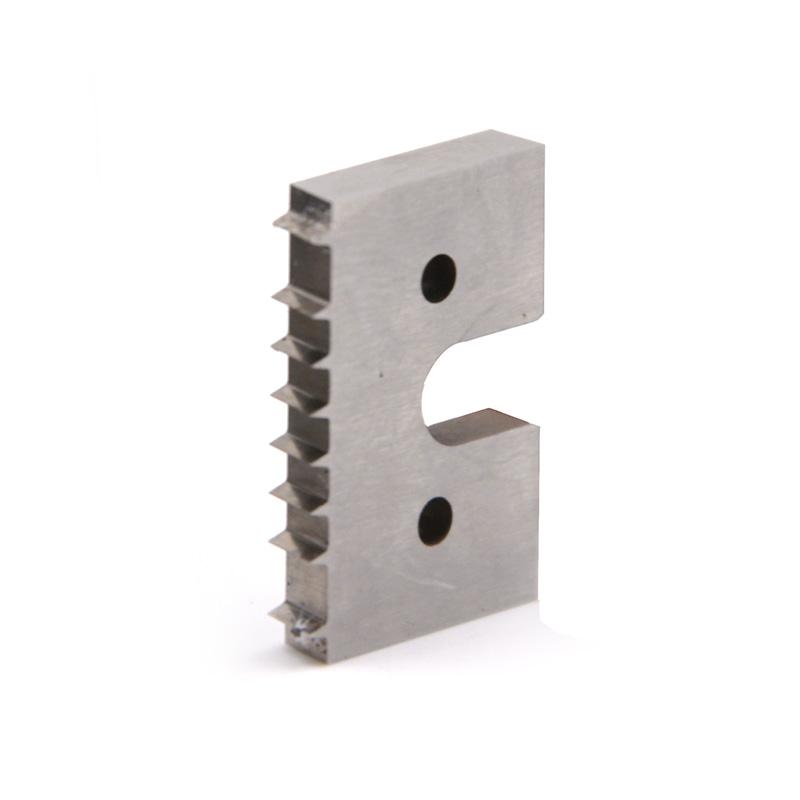

TQC sheen SP1706 cross-cut cutter head ASTM3359 11 teeth 1.5mm pitch stainless steel

Name: TQC sheen SP1706 cross-cut cutter head ASTM3359 11 teeth 1.5mm pitch stainless steel
Brand: TQC sheen
SKU: NB004574
Price: 391.0 USD
Availability: InStock

$ 391.00Ex works

11 teeth design with 1.5mm spacing, can accurately test 121-250 µm film thickness coating adhesion, stainless steel material to ensure durability, in line with ASTM standards.

Model

SP1706

Get Quote

Category : Paint Film Cross-Cut Cutter

Brand : TQC sheen

SKU : NB004574

Service :The delivery and service By NBCLab.Com

Overview

The TQC sheen SP1706 cross-cut cutter head is a precision tool designed for coating adhesion testing. It is made of stainless steel and complies with ASTM D3359 standard. It is suitable for coating test environments with film thickness 121~ 250 µm.

Features

1. Made of stainless steel to ensure durability and accuracy 2.11 tooth design, 1.5mm pitch, ASTM D3359 compliant 3. Optimized for 121~ 250 µm film thickness environment 4. Precision cutting requirements for coating adhesion testing

Principle

The cross-cut cutter head is equally spaced across the coating surface with 11 precisely arranged teeth to form a standard cross-cut pattern for evaluating adhesion performance between the coating and the substrate. The 1.5mm pitch design ensures test accuracy in the 121 to 250 µm film thickness range.

Applications

Coating adhesion testing, Coating mass testing, Surface coating evaluation

Standards

ASTM D3359

Steps

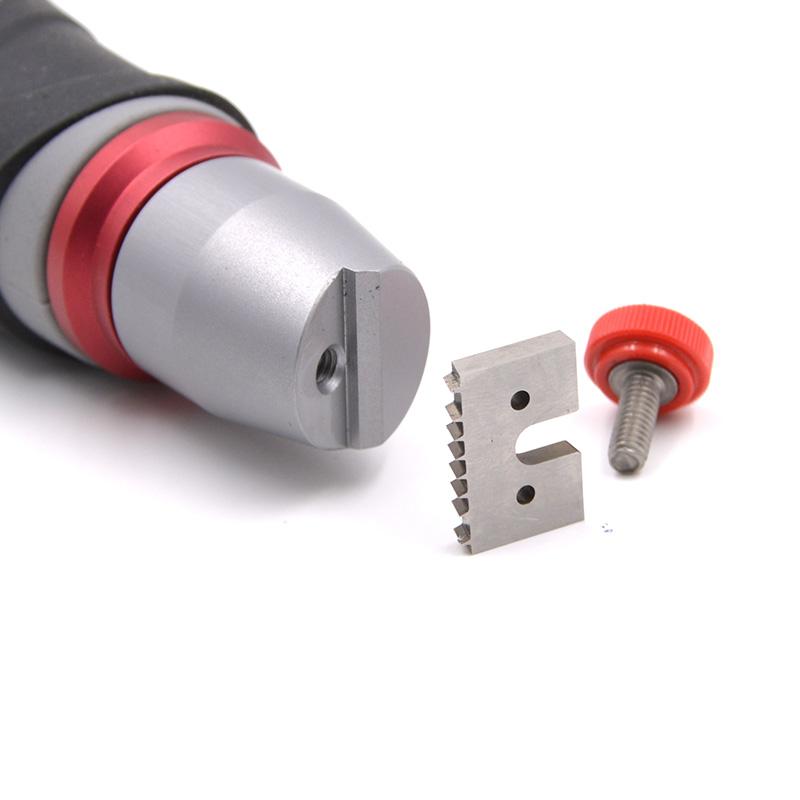

1. Install the cutter head to the corresponding cross-cut handle 2. Apply uniform pressure on the surface of the coating to be tested for cutting 3. Ensure that the cutting depth penetrates the coating to the bottom material 4. Adhesion assessment after forming a complete cross-cut pattern

Notice

• Only suitable for coating testing in the 121~ 250 µm film thickness range • Check whether the cutter head is intact and nondestructive before use • Maintain uniform pressure and speed when cutting • Clean the cutter head in time after the test to avoid coating residue Store in a drying environment to prevent corrosion

Number of teeth
11 teeth
Tooth spacing
1.5mm
Cutting head material
stainless steel
application standard
ASTM D3359
Applicable film thickness environment
121~250µm
