Overview

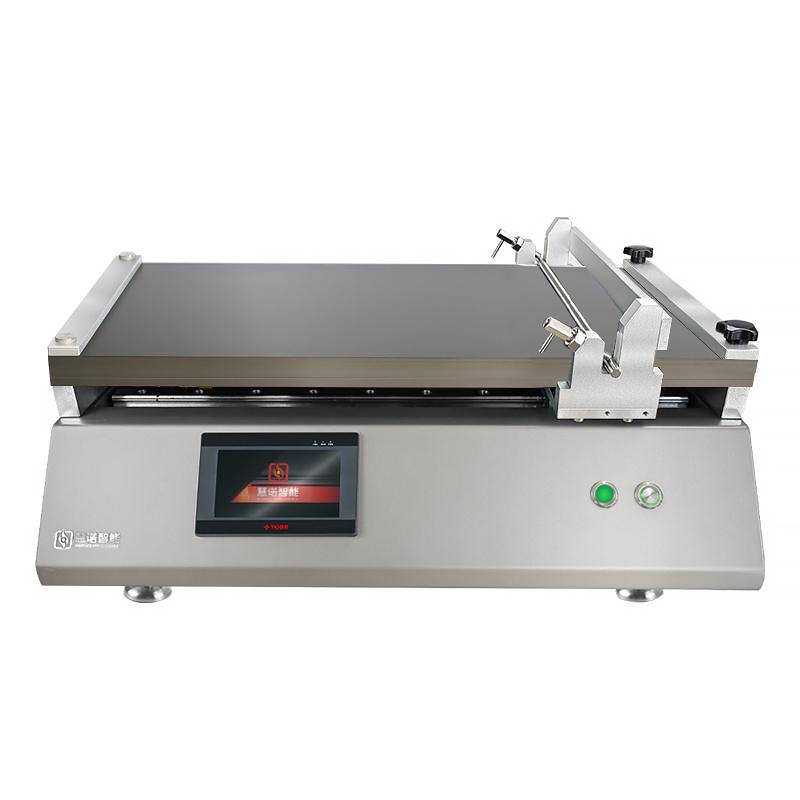

Automatic Film Applicator is a device used for intermediate coating film in laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate by controlling the Spreader head and Spreader parameters to form the desired film. This Film Applicator is a bar type Automatic film applicator with heating function, innovative bar Installation method and clamshell drawdown blade greatly improve Spreader efficiency, easy to clean, support speed control and application length adjustment, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as university research institutes, New material, hot-melt adhesive, glue, Resin, etc.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. With heating and Vacuum chuck function
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
7. Servo motor, stable operation, higher film accuracy
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. This bar type Automatic film applicator adopts the innovative bar Installation method and the clamshell drawdown blade head, which are driven by a servo motor to achieve High Accuracy film.
Applications
Moulding proofing in laboratories such as university research institutes, New materials, hot-melt adhesives, glues, Resin, Coating, inks, paints, lithium batteries, Pressure sensitive adhesives, polymer materials, pharmaceuticals, etc
Steps
1. Prepare the substrate and samples
2. Set Spreader parameters (application length, Spreader speed)
3. Install bar film applicator
4. Start the device for automatic filming
5. Clean the equipment after finishing the film
Notice
• Make sure the power supply of the device is connected correctly before use
• Pay attention to the heating temperature during operation to avoid burns
• Spreader the bar and countertops in time after completion
• Select the appropriate Spreader parameters according to the sample characteristics
• Regularly check the operating status of the equipment to ensure film accuracy
