Overview

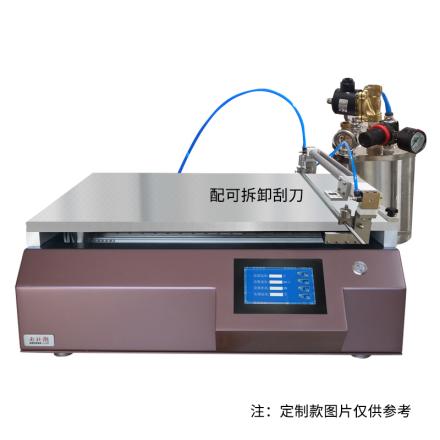

Automatic Film Applicator is a device used for intermediate coating film in laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate by controlling the Spreader head and Spreader parameters to form the desired film. This Film Applicator is a drawdown blade type automatic Lab Film Applicator with Vacuum chuck function, innovative bar Installation method and clamshell drawdown blade head greatly improve Spreader efficiency, easy to clean, support speed control and application length adjustment, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as university research institutes, New material, electricity, glue, Resin, etc.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. With heating and Vacuum chuck function
4. Flap drawdown blade design, cleaning fast and convenient
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
7. Servo motor, stable operation, higher film accuracy
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. High Accuracy automatic film is realized by using Blade Coating mode, driven by servo motor, combined with Vacuum chuck to fix the substrate.
Applications
Moulding proofing in laboratories of university research institutes, New materials, Lithium batteries, glues, Resin, Coatings, inks, paints, Stock, Lithium batteries, Pressure sensitive adhesives, Resin, glues, polymer materials, pharmaceuticals, etc
Steps
1. Prepare the substrate and samples
2. Place the substrate on the Spreader table and start Vacuum chuck fixation
3. Set application length and Spreader speed parameters through Touchscreen
4. Install drawdown blade and adjust film thickness
5. Start the film program, the device automatically completes the Spreader
6. After the Spreader is completed, turn up the drawdown blade for cleaning
Notice
• Before use, please ensure that the power supply of the equipment meets the requirements (220V/50HZ or customized voltage)
• Check whether the Vacuum chuck function is normal before Spreader
• The drawdown blade should be cleaned in time after use to keep it clean
• Do not touch the running drawdown blade during operation
• Customized parameters need to be clearly stated when booking
