Overview

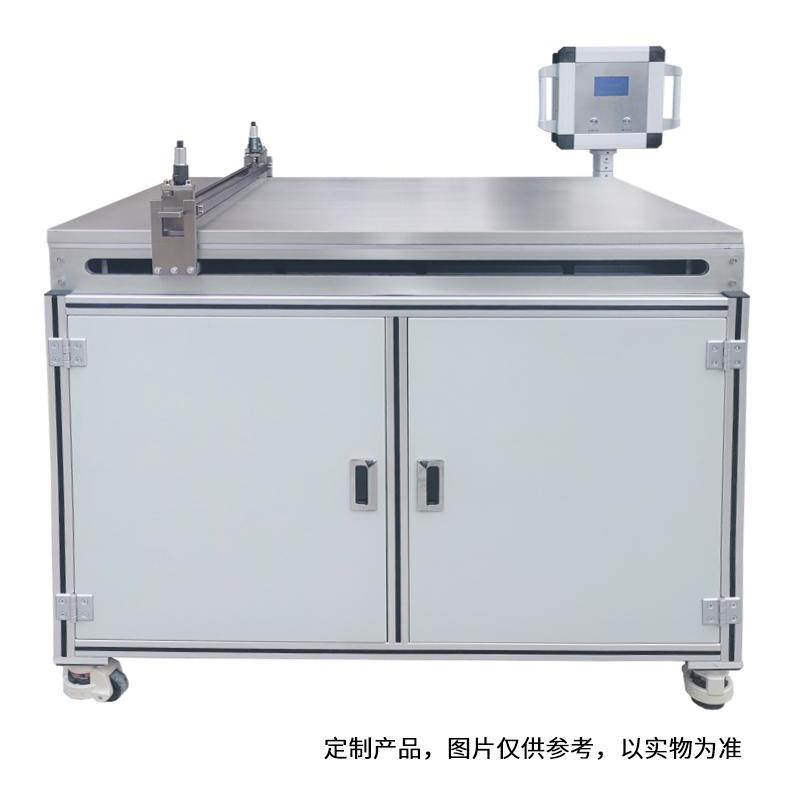

NBC-X4-DJ7 Floor-Standing Automatic film applicator is a drawdown Bar & Blade Vacuum chuck heating Film Applicator with automatic feeding system, effective coating area 700 * 1300mm, standard 3L volume Mixing Tank, heating temperature up to 180 ℃. Commonly used in laboratory film, suitable for Coating, inks, polymer materials, films, glues, Pressure sensitive adhesives and other industries Moulding.
Features
1. Blade Coating accuracy +/- 0.02mm, meyer rod coating accuracy 0.001mm
2. Spreader thickness range 0~ 10mm
3. The coating speed is 5~ 180mm/s (< 5mm/s can be customized)
4 heating Temperature range RT +~ 180 ℃, temperature accuracy +/- 3 ℃
5. Equipped with Automatic Feeding System, Mixing Tank Volume 3L
6. Vacuum Area 1300 * 700mm
7. Speed stepless variable speed control, speed regulation accuracy 1mm/s
8. Support a variety of customized functions: automatic inking system, air jet system device, UV solid inclusion device
Principle
The device adopts bar + Blade Coating mode, which fixes the substrate through Vacuum chuck, and realizes accurate Spreader by using drawdown blade and bar. The automatic feeding system adopts the principle of air source pressure outflow, and realizes feeding by reciprocating linear motion. The amount of material can be adjusted by adjusting the air pressure and the running speed of the discharge port.
Applications
Coatings, inks, polymer materials, films, glues, Pressure sensitive adhesives
Steps
1. Spreader substrate and place on Vacuum chuck table
2. Select the appropriate bar specification according to the requirements to determine the thickness of the Spreader
3. Add Coatings to 3L Mixing Tank
4. Set the heating temperature (up to 180 ° C)
5. Adjust the coating speed (5~ 180mm/s)
6. Set the feeding system parameters (air pressure and running speed)
7. Start the Device for Auto Spreader
8. Turn off the device and clean the workbench after completing the Spreader
Notice
• The air source pressure of the feeding system needs to be kept at 0.6Mpa, and it needs to be equipped with a φ 8 trachea
• The maximum pressure of the Mixing Tank is 8Mpa, and this limit must not be exceeded when using it
• The power supply of the equipment is 220V 50Hz, and the voltage needs to be stable
• The coating table is made of aluminum alloy to avoid scratches on hard objects during use
• The heating temperature is up to 180 ° C, pay attention to high temperature protection during operation
• Mixing Tank is made of 304 stainless steel with a wall thickness of 4mm, which needs to be checked regularly
• Dimensions are non-standard customization, subject to actual order
• Check whether the safety valve, pressure regulating valve, pressure gauge and air discharge valve are normal before use
