Overview

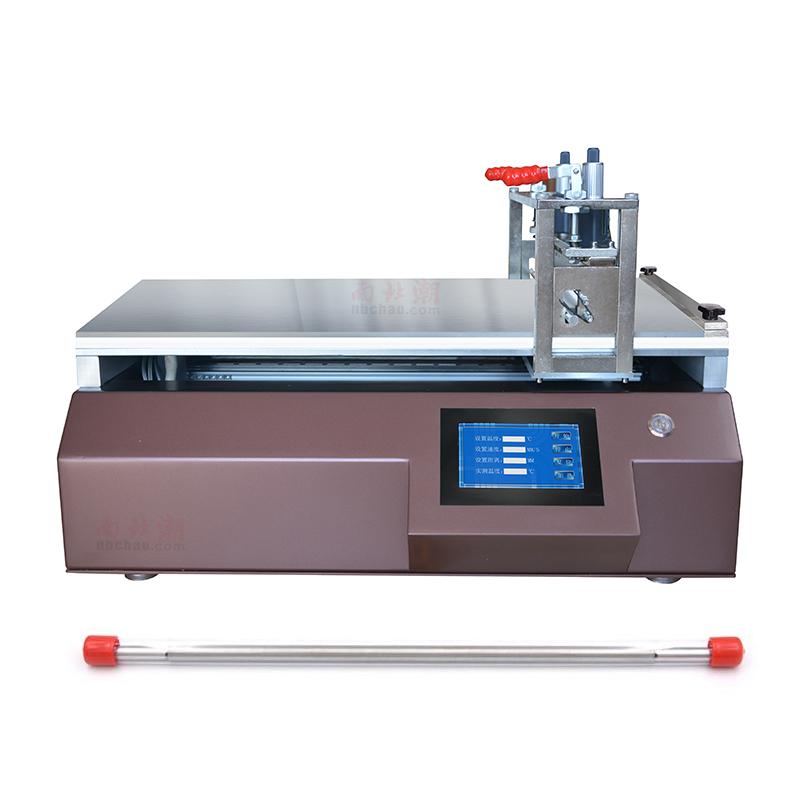

TBJ-X3-DJ18 Multifunctional Automatic Film Applicator integrates Vacuum chuck, bar, drawdown blade and heating four-in-one functions. The design Spreader area is 600 * 700mm and supports customization. The series adopts imported accessories and is affordable. It is widely used in R & D institutions of international multinational enterprises and well-known universities and scientific research institutions at home and abroad. Through precise control of speed and stable pressure, it ensures the uniformity and Stability of Spreader and gluing.
Features
1. Four-in-one function: Vacuum chuck, bar, drawdown blade and heating.
2. Spreader area can be customized, the effective coating area is 700 * 600mm.
3. Using imported accessories, the price is affordable.
4. Precise Control of Speed and Stable Pressure to Ensure Spreader Uniformity and Stability.
5. Optional accessories are rich, including leakage tank, substrate fixing fixture, etc.
6. Support custom functions, such as jet system devices, UV solid inclusion devices, etc.
Principle
Automatic Film Applicator fixes the substrate through Vacuum chuck, uses bar or drawdown blade for Spreader, Blade Coating accuracy up to +/- 0.003mm, thickness range 0~ 10mm, and supports lift adjustment. The coating speed is stepless variable speed control in the range of 5~ 180mm/s, combined with heating function, Temperature range RT +~ 180 ℃, to ensure uniform and stable Spreader process.
Applications
International multinational enterprise R & D institutions, well-known universities at home and abroad, scientific research institutions
Steps
1. Prepare the substrate and place it on the Spreader stage.
2. Select the bar or Blade Coating method as required.
3. Set coating speed and thickness parameters.
4. Start the Vacuum chuck function to fix the substrate.
5. If necessary, turn on the heating function and set the temperature.
6. Start the Spreader process and monitor Spreader uniformity.
7. After completion, turn off the device and clean the Spreader tool.
Notice
• Make sure the substrate is flat before Spreader to avoid uneven thickness affecting the effect.
• When using the heating function, pay attention to the Temperature Uniformity control within +/- 3 ° C.
• Regularly check the Vacuum chuck system to ensure that the aperture and spacing meet the standards.
• Follow safety regulations during operation to avoid power overload.
• Optional accessories such as leakage tank and fixture should be selected according to actual needs.
