Overview

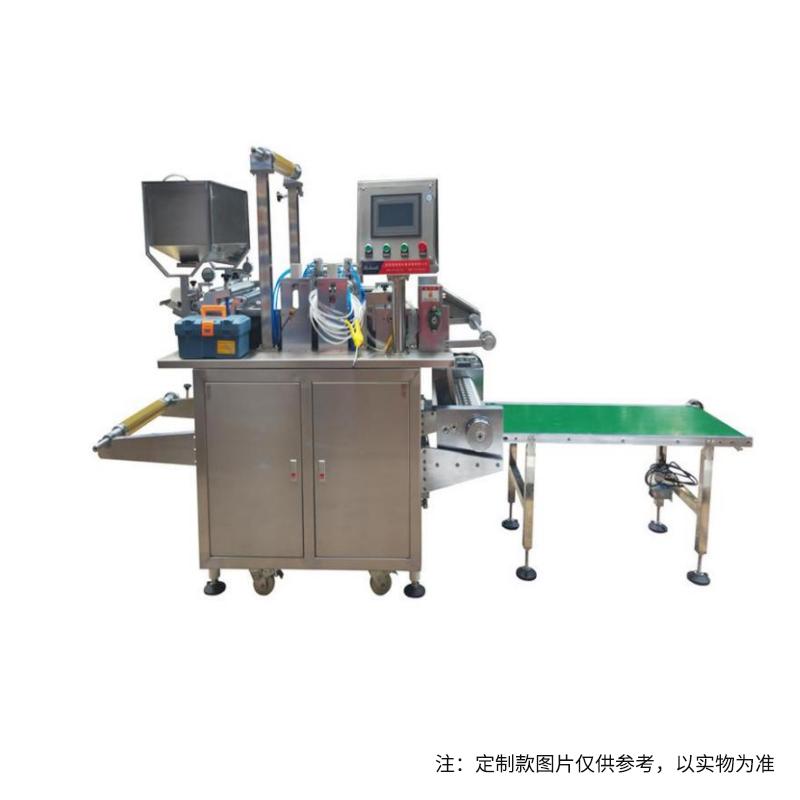

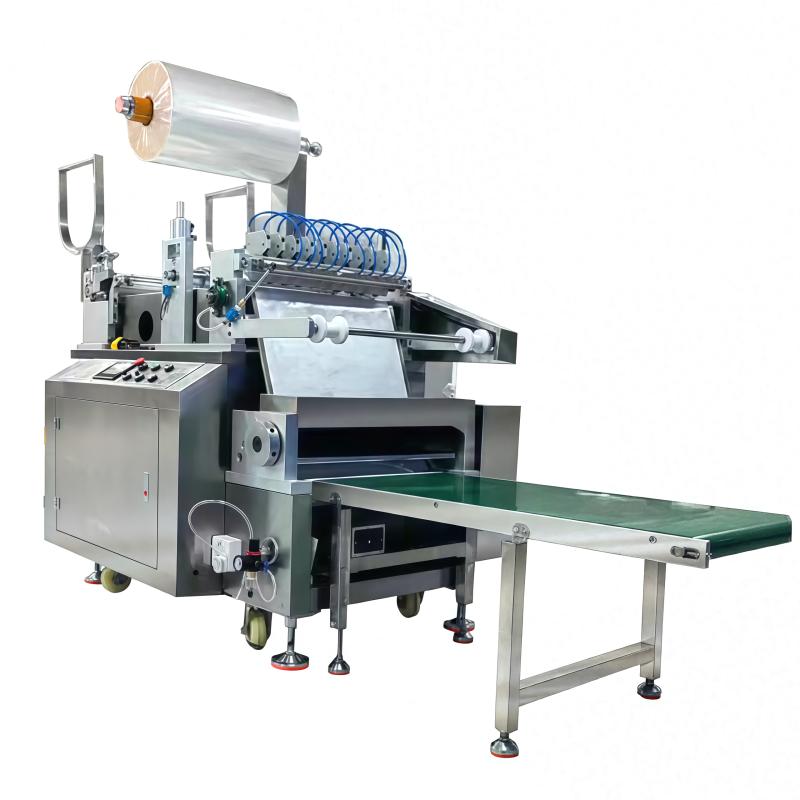

Spreader cutting machine is a special pilot film Applicator for pharmaceutical patches. It integrates Spreader, cutting, drying and unrolling functions. It is suitable for paste, pharmaceutical patch and hydrogel sticker Moulding Spreader. This machine has slitting function and supports UV curing. It is often used in medical, cosmetics, hygiene products and other fields.
Features
1. Automatic Coil Film Applicator, Integrated Spreader, Cutting, Drying, Unwinding Functions
2. Support UV curing
3. Control system
4. Unwinding system with tension control
5. Touchscreen Control mode (Kunlun Tongtai)
6. Equipped with toolbox, including Thickness gauge, screw driver, tracheal interface and other tools
7. Air-rising shaft design for easy operation
Principle
The equipment completes the film process through the process of unwinding → Spreader → Fitting → Drying → Slitting. The unwinding system has tension control to ensure smooth transportation of materials; after Spreader, it enters the drying stage, and finally it is sliced by hob type cross cutting and vertical cutting knife.
Applications
Medical, cosmetics, hygiene products
Steps
1. Unwinding: Start the unwinding system and control the tension
2. Spreader: Perform Material Spreader Operation
3. Fitting: Fit the Spreader material
4. Drying: enter the drying process
5. Slitting: Complete the slitting through cross-cutting and vertical cutting knives
Notice
• Power supply voltage is 220V
• Check whether the air lift shaft and tools are complete before operation
• Control the production speed within the range of 0-5m/min
• Note that the effective application width does not exceed 500mm
• Device weight is 1200kg before use to ensure ground load-bearing capacity
