Overview

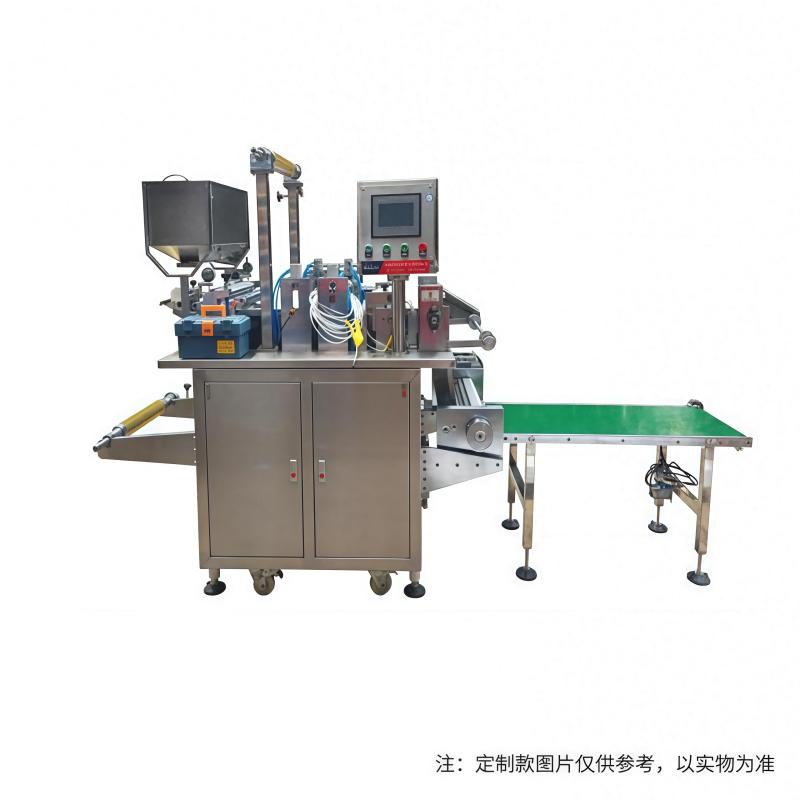

Spreader cutting machine is an automatic coil film equipment, which integrates Spreader, cutting, drying and unrolling functions. It is suitable for paste, pharmaceutical patch and hydrogel sticker Moulding Spreader. This machine has slitting function and supports UV curing, which is often used in medical, cosmetics, hygiene products and other fields.
Features
1. Spreader, cutting, drying, unwinding integrated design
2. Support UV curing function
3. Control system
4. Unwinding system with tension control
5. Equipped with Touchscreen control interface
6. Hob type cross-cutting system
7. 3 vertical cutters can be installed
8. Provide complete toolbox configuration
Principle
The equipment completes the paste production through the process flow of unwinding → Spreader → Laminating → Slitting. The coils are output by the unwinding system, coated by the Spreader device, followed by Laminating treatment, and finally precise cutting is completed by the slitting system.
Applications
Medical, cosmetics, hygiene products
Steps
1. Unwinding: Release the coil through the Tension Control system
2. Spreader: material coating on the surface of the coil
3. Laminating: Laminating the material after Spreader
4. Slitting: Complete product cutting through cross-cutting and vertical cutting systems
