$ 47881.00Ex works
Spreader thickness range of 10-250μm, Dry-Film accuracy of +/- 3 microns, equipped with automatic constant tension control and four Oven section thermostatic, ensure uniform and stable Spreader, Oven with waste heat recovery system energy saving about 30%.
Category : R2R Coater
Brand : BoLaiDe
SKU : NB045795
Service :The delivery and service By NBCLab.Com

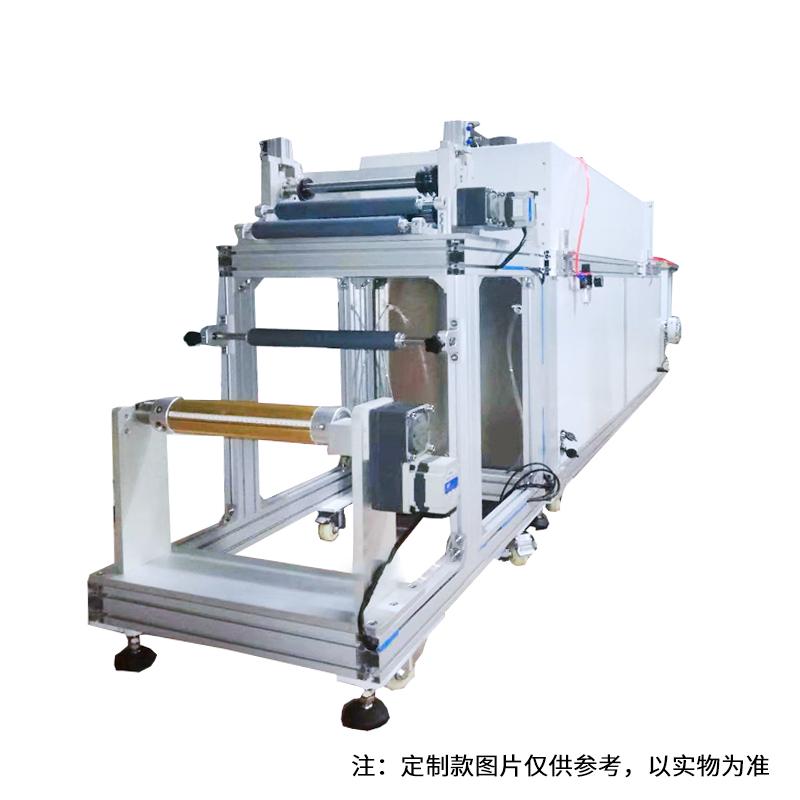

The Rxf-08/350 Pro Slot Die Film Applicator is a factory-sold Spreader device designed to coat liquid materials on flat coils such as PET and form finished New material through drying box curing. The device uses a fully automated process flow including tension control, slot-die Spreader, heating drying and automatic winding for efficient continuous coil Spreader production.
1. Using slot-die coating method, effective application width ≤ 350mm, Spreader thickness range 10-250μm, Dry-Film accuracy +/- 3 microns. 2. Fully automatic constant tension control to ensure stable production, equipped with automatic deviation correction and cut-off detection system. 3. The oven adopts electric heating, Temperature range RT +~ 160 ℃, can be segmented thermostatic, temperature difference +/- 3 degrees, equipped with energy-saving waste heat recovery system, energy saving about 30%. 4. The glue supply system is Basis Weight glue supply, the glue container is 30 liters, and the sealing design ensures a stable glue supply. 5. Control mode adopts PLC and 10-inch Touchscreen, easy to operate, support variable frequency motor and servo motor drive. 6. The equipment has a compact structure. It is recommended that the plant size be 15 meters long, 3 meters wide, and 3 meters high. It can be installed above the second floor.
After the film Applicator is fed through the coil, the substrate protective film is disbonded under tension control, and then the slurry is uniformly coated on the substrate by the slot-die coating method. Laminating is optional and enters the heating drying box for curing. After drying, Laminating again and automatically correcting the deviation, and finally winding into the finished product. The whole process is automatically controlled by PLC to ensure Spreader accuracy and production continuity.
PET flat coil Spreader, New material manufacturing, coil processing
Power supply standard 380V x 50Hz x 3-phase, three-phase five-wire AC380V
1. Prepare the coil to ensure that the discharge diameter does not exceed Ø 600mm. 2. Start the device and set the Spreader parameters through the PLC Touchscreen, including the speed of 1-20 meters per minute. 3. Perform substrate protective film disbonding and slot-die Spreader, automatic glue supply. 4. Laminating optional, into the oven heating drying, the temperature can be controlled in sections. 5. Laminating and automatic correction after drying, and finally winding the finished product, the winding diameter does not exceed Ø 600mm. 6. Monitor tension, air volume and temperature to ensure stable production.
• The speed of the equipment only ensures that the tension and air volume of the equipment are thermostatic and stable when producing the substrate. The actual production speed is determined by the customer according to the glue formula and production process factors. • The total installed power of electric heating is tentatively estimated to be at the peak of 40KW, and the specific installed Power is subject to the formal design. • Pay attention to oven temperature control during operation to avoid overheating. • The rewinding load should not exceed 100KG to ensure safe operation. • Regularly check the exhaust system and fan to keep the equipment clean.
