$ 60630.00Ex works
Using slot-die coating method, application width ≤ 500mm, thickness range 10-250μm; equipped with automatic deviation correction and constant tension system, Oven temperature RT +~ 160 ℃, support segmented thermostatic, ensure Spreader accuracy +/- 3 microns.
Category : R2R Coater
Brand : BoLaiDe
SKU : NB045796
Service :The delivery and service By NBCLab.Com

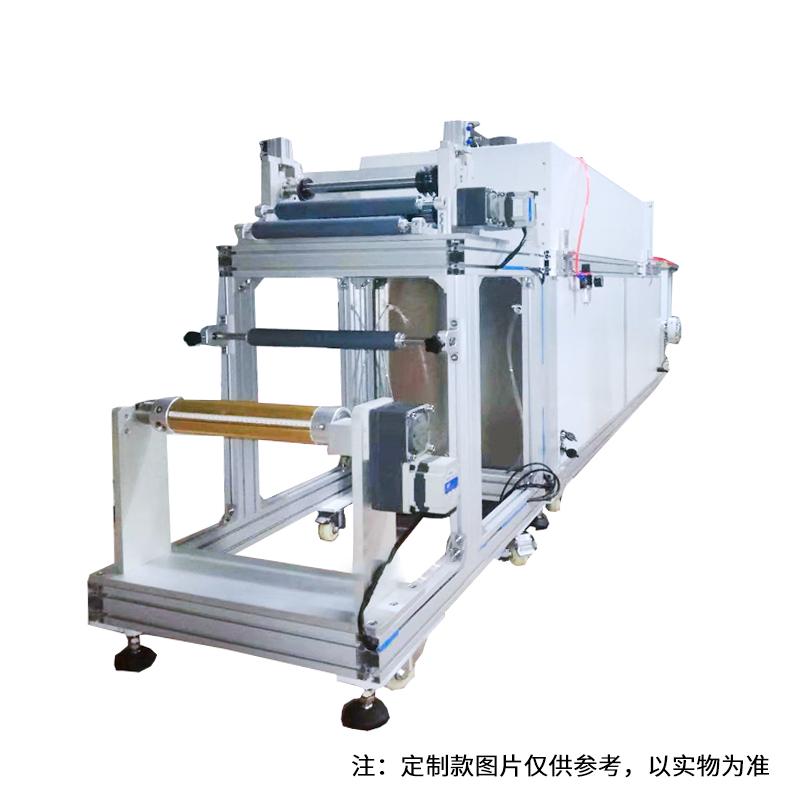

Slot die coil Film Applicator Rxg-01/500cs pro is a factory outlet equipment designed to Spreader liquid materials on flat coils such as PET, which are cured in a drying box to form finished New material. The equipment uses a fully automated process flow, including tension control, automatic glue supply, heating and drying, and automatic deviation correction to ensure Spreader accuracy and Stability.
1. Using slot-die coating method, effective application width ≤ 500mm, Spreader thickness range 10-250μm, Dry-Film accuracy +/- 3 microns. 2. Equipment speed 1-20 meters per minute, mechanical speed up to 20 meters per minute, support automatic constant tension control. 3. Oven configuration 4 * 2m, Temperature range RT +~ 160 ℃, can be segmented thermostatic, temperature difference +/- 3 degrees, using electric heating and energy saving waste heat recovery system, energy saving about 30%. 4. The glue supply system adopts a sealing container with a capacity of 30 liters, which supports Basis Weight glue supply and automatic glue supply. 5. Control mode is PLC control, equipped with 10 inch Touchscreen, automatic operation and automatic detection of material cutting. 6. The rewinding and unwinding station design is flexible, with 4 stations for front discharge and 2 stations for rear rewinding, supporting automatic deviation correction and Laminating functions.
The process flow of the equipment includes the operation of the Spreader substrate coil under tension control. After the substrate protective film is disbonded, the glue is automatically supplied by the slot-die coating method. Laminating is optional and then enters the heating and drying stage. Laminating and automatic deviation correction are carried out. The whole process is controlled by PLC to ensure that the Spreader is uniform, the drying is stable, and the high-mass finished material is formed.
PET flat coil Spreader, New material manufacturing, Industrial coil processing
Power supply 380 volts x 50 Hz x 3 phase
1. Install the coil and activate the tension control. 2. disbonding substrate protective film. 3. Start the slot-die Spreader and automatic glue supply system. 4. Laminating operation is optional. 5. Enter the heating and drying stage, adjust the oven temperature and wind speed. 6. Laminating and automatic correction. 7. Final winding of finished materials.
• The power supply of the equipment is three-phase five-wire AC380V, and the control power supply is 24V. It is necessary to ensure that the power supply matches. • Spreader speed and actual production speed are affected by glue formula and production process factors, and the equipment only ensures that the tension and air volume are thermostatic and stable. • The oven temperature is adjustable, but it should be noted that the temperature difference is controlled within +/- 3 degrees to avoid overheating. • The rewinding and unwinding load does not exceed 100KG, and the maximum coil diameter is Ø 600mm. • Pay attention to the operation of the exhaust system during operation, and the exhaust motor can be adjusted to ensure safe ventilation. • The recommended plant size is 15 meters long, 3 meters wide and 3 meters high, and can be installed above the 2nd floor.
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
