Overview

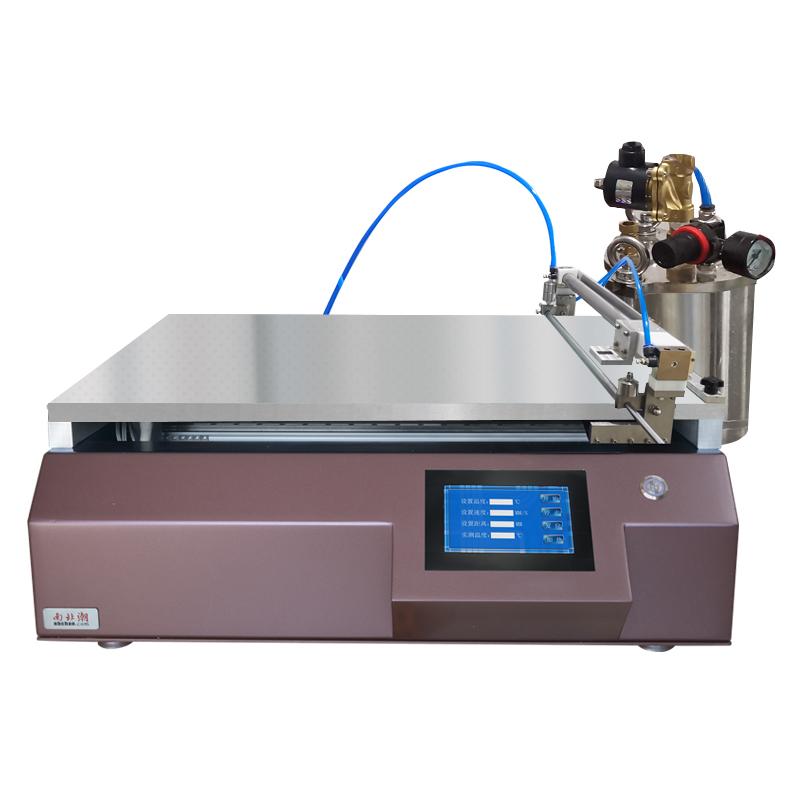

TBJ-X2-DJ7 Automatic Film Applicator is a small Lab Film Applicator for China experiments. It adopts imported accessories and has a good price. It is favored by multinational R & D institutions, universities and scientific research institutions at home and abroad. The equipment ensures the uniformity and smoothness of Spreader coating by controlling speed and stable pressure. Customized models have bar coating method, integrated heating, lame plating, Vacuum chuck, automatic feeding function, effective coating area is 500 * 600mm, suitable for film, release paper, aluminum foil copper foil and other substrates.
Features
1. Using imported accessories, the price is good and cheap; 2. Support bar Spreader and automatic lame plating; 3. Integrated heating, lame plating, Vacuum chuck, automatic feeding function; 4. Large effective coating area, 500 * 600mm; 5. Wide coating speed range, 5~ 180mm/s, support customization; 6. Heating Temperature range RT +~ 200 ℃, Temperature Uniformity +/- 3 ℃; 7. Optional automatic inking system and a variety of Accessories; 8. Feeding system can adjust the amount of material, using reciprocating linear motion.
Principle
Automatic Film Applicator achieves uniform Spreader by controlling the speed of the Spreader and applying a steady pressure. The bar coating method combines the automatic lame plating function to ensure the effect of gluing. The Vacuum chuck system fixes the substrate, the heating system provides temperature control, and the automatic feeding system drives the reciprocating linear motion through the air source pressure. Adjust the air pressure and the discharge port speed to control the amount of material to ensure the smoothness and accuracy of the Spreader process.
Applications
Film, Release Paper, Aluminum Foil Copper Foil Substrate Spreader
