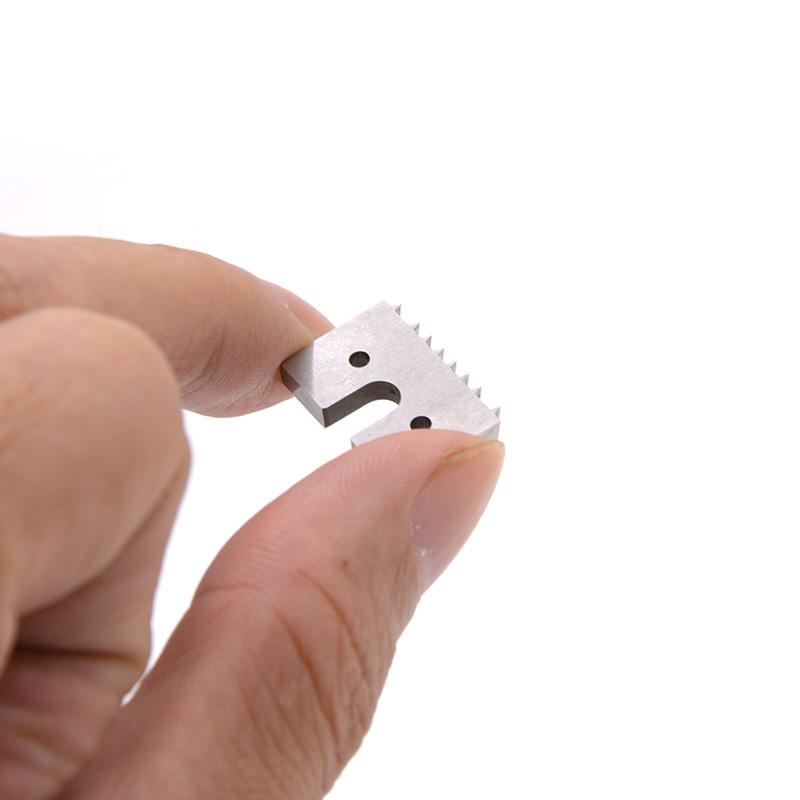

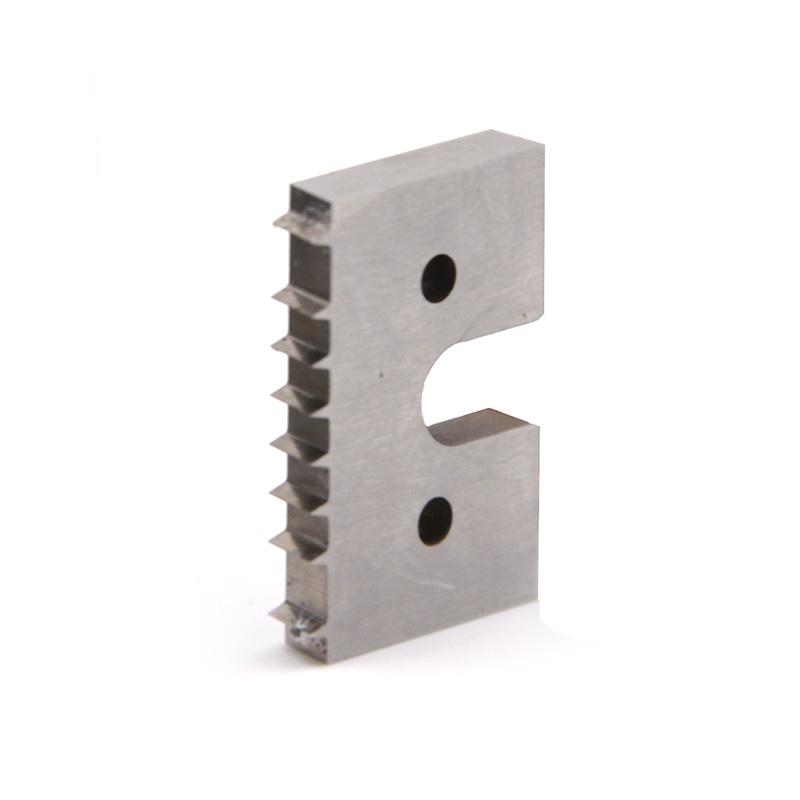

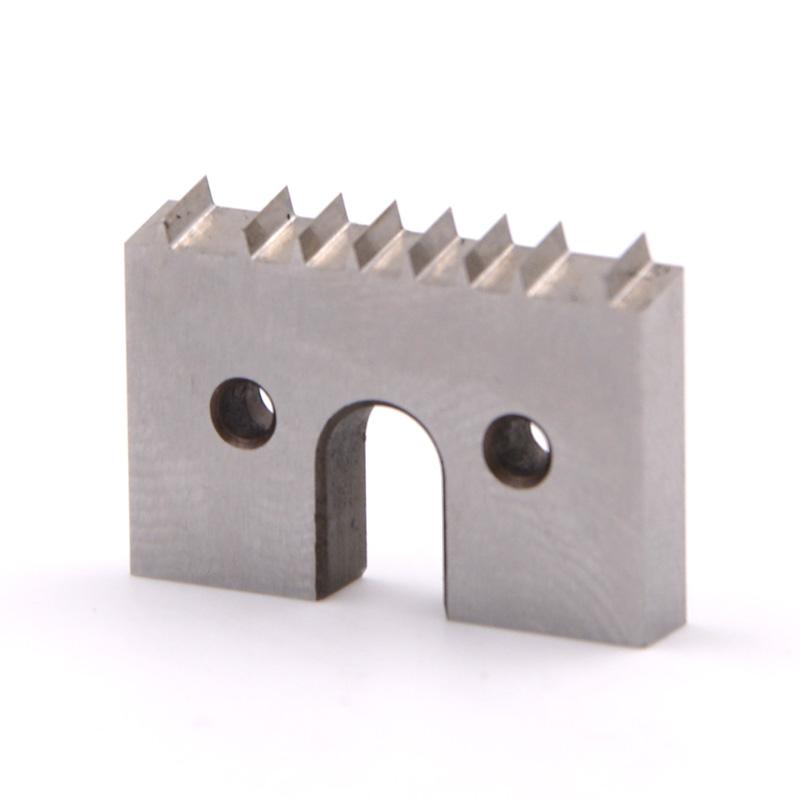

TQC sheen SP1704 cross-cutting cutter head, stainless steel 6 teeth 3mm pitch

Name: TQC sheen SP1704 cross-cutting cutter head, stainless steel 6 teeth 3mm pitch
Brand: TQC sheen
SKU: NB004580
Price: 374.0 USD
Availability: InStock

$ 374.00Ex works

Constructed from stainless steel, with a 6-tooth design and a 3mm tooth pitch, it meets the ISO/DIN 2409 test standard for coating adhesion evaluation in the 121-250 µm film thickness range.

Model

SP1704

Get Quote

Category : Paint Film Cross-Cut Cutter

Brand : TQC sheen

SKU : NB004580

Service :The delivery and service By NBCLab.Com

Overview

The TQC sheen SP1704 cross-cut cutter head is a professional testing tool according to ISO/DIN 2409 standard. It is made of stainless steel and has 6 cutter teeth with a spacing of 3mm. It is suitable for adhesion testing in 121~ 250 µm film thickness environments.

Features

1. Compliant with ISO/DIN 2409 international standards 2. Made of stainless steel, strong durability 3.6 tooth design, spacing 3mm, suitable for specific film thickness range 4. Optimized for 121~ 250 µm film thickness environment

Principle

The cross-cut cutter head through its six pitch of 3mm stainless steel cutter teeth to draw a standard grid on the coating surface, to determine the adhesion performance between the coating and the substrate by evaluating the coating peeling of the grid area.

Applications

Coating adhesion testing, mass testing

Standards

ISO/DIN 2409

Steps

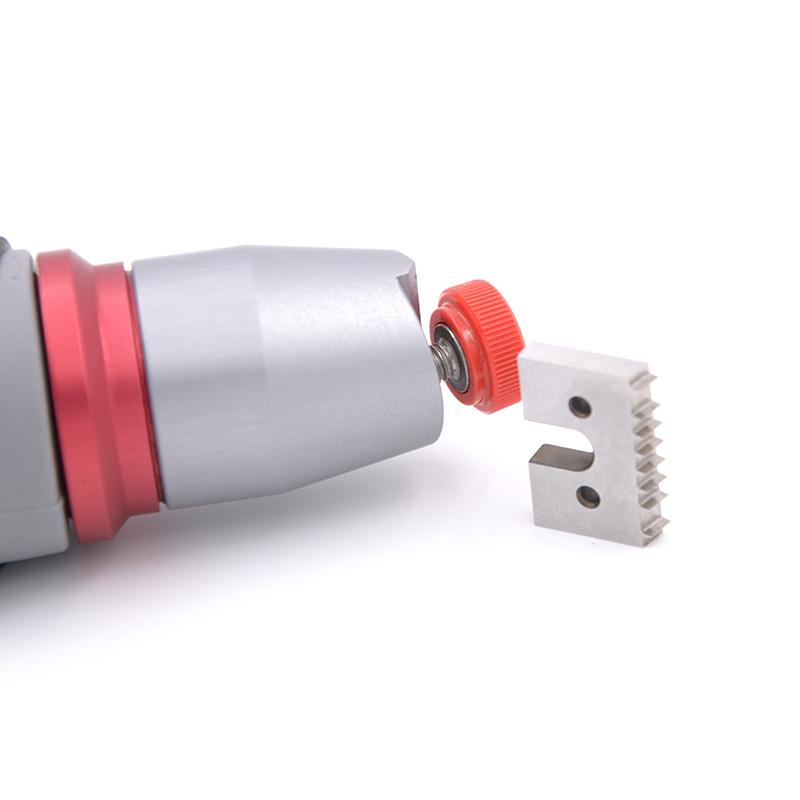

1. Install the cutter head on the handle of the cross-cut cutter 2. Draw a grid at uniform pressure on the coating surface 3. Assess grid area coating adhesion

Notice

• Only suitable for 121~ 250µm film thickness environment • Make sure the knife head is clean and free of damage before use • Maintain uniform pressure during operation • Regularly check the abrasion of the cutter head

Number of teeth
6 teeth
Tooth spacing
3mm
Cutting head material
stainless steel
application standard
ISO/DIN 2409
Applicable film thickness environment
121~250µm
