Overview

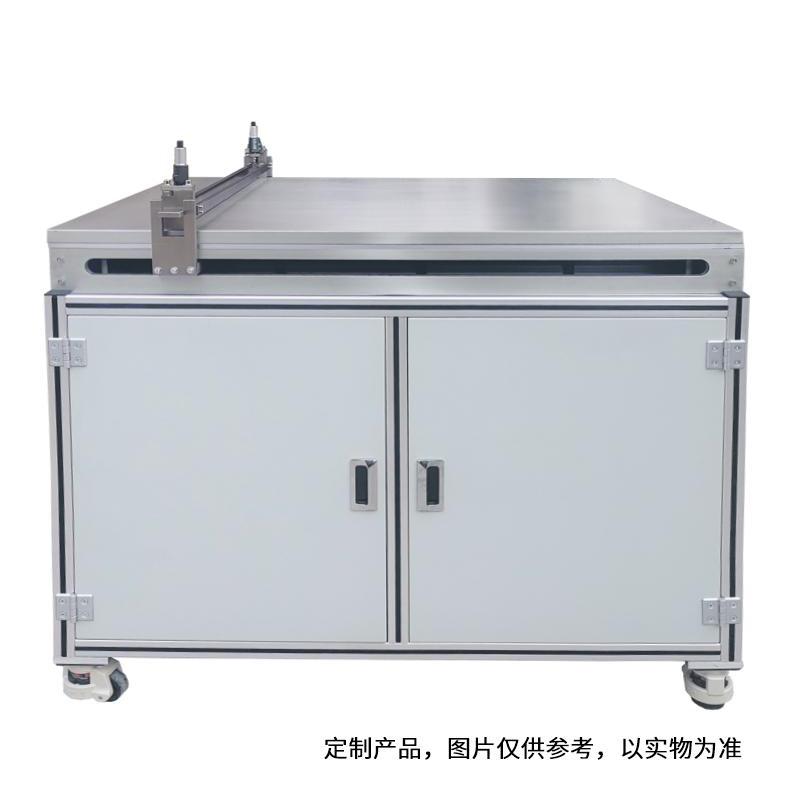

TBJ-B2-DJ5 Floor-Standing drawdown Bar & Blade Film Applicator is a China automatic film equipment, using bar and drawdown blade two coating methods, effective coating area is 600 * 700mm, Floor-Standing structure design, specially developed for laboratory film proofing. Suitable for Moulding in Coating, inks, polymer materials, films, glues, Pressure sensitive adhesives and other industries.
Features
1. Support bar and drawdown blade two coating methods
2. effective coating area of 600 * 700mm
3. Floor-Standing structure design, stable and reliable
4. Wide coating speed range, 5~ 180mm/s (less than 5mm/s can be customized)
5. Spreader accuracy, bar and Blade Coating accuracy are +/- 0.05mm
6. Spreader thickness range is wide, 0~ 10mm, drawdown blade can be lifted
7. The speed control adopts stepless speed change, and the speed regulation accuracy reaches 1mm/s
8. The coating table material is aluminum alloy, durable and flat
9. Customizable features include automatic feeding, jet system devices, UV solid inclusion devices
Principle
The Film Applicator uses bar and drawdown blade coating methods to achieve uniform film. The bar Spreader determines the thickness of the Spreader according to the bar model, the Blade Coating controls the thickness by lifting the drawdown blade, and the coating speed is precisely adjusted by the stepless transmission system to ensure the stability and accuracy of the Spreader process.
Applications
Coatings, inks, polymer materials, films, glues, Pressure sensitive adhesives
Steps
1. Prepare the Spreader material and place it on the Spreader table
2. Select the coating method (bar or drawdown blade) and install the corresponding accessories
3. Set Spreader Thickness and Rate Parameters
4. Start the device for Spreader operation
5. Clean Equipment After Spreader
Notice
• Make sure the power supply is 220V 50Hz before use to avoid voltage mismatch
• Spreader thickness and rate settings must be within the allowable range of the device, Blade Coating thickness 0~ 10mm, speed 5~ 180mm/s
• Regularly check the coating table and coating rods to keep them clean to prevent contamination of samples
• Customized functions such as automatic feeding, jet system, UV solid inclusion device need to confirm specifications in advance
• Non-standard customized Dimensions are subject to the actual order, pay attention to reserve installation space
• Pay attention to safety during operation and avoid contact with moving parts during high-speed operation
