Overview

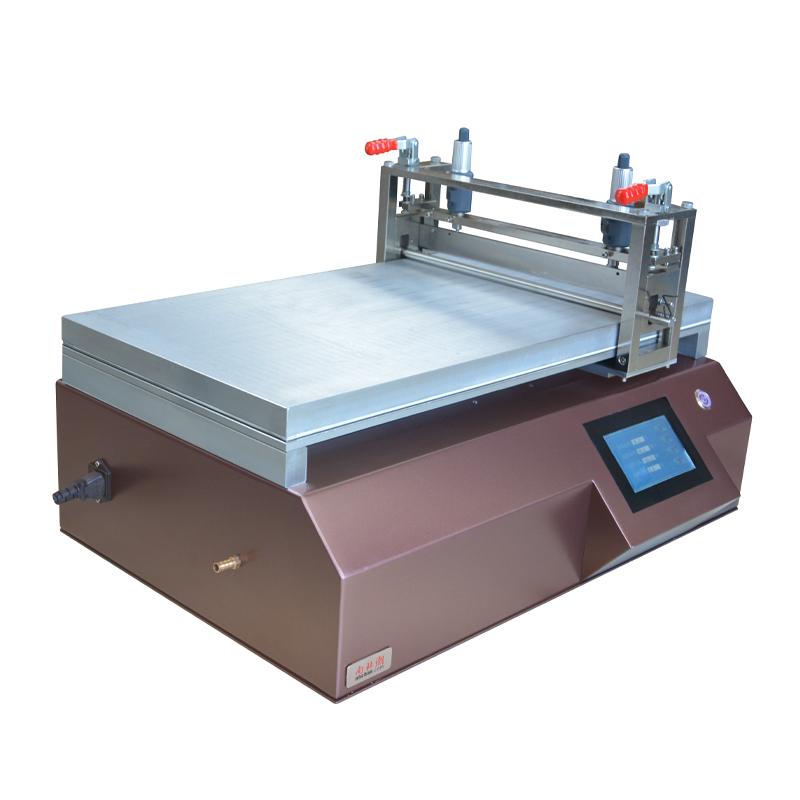

TBJ-X2-DJ8 Automatic Film Applicator is a China intelligent program-controlled small Spreader device. It adopts imported accessories and is inexpensive. It is widely favored by multinational R & D institutions, universities and scientific research institutions. The device ensures the uniformity and smoothness of Spreader coating by controlling speed and stable pressure. It has the function of drawdown Bar & Blade Vacuum chuck. It supports remote computer setting Spreader parameters such as speed, length and temperature. It is suitable for Moulding proofing such as film and release paper.
Features
1. High flat aluminum alloy baseplate to ensure Spreader Stability

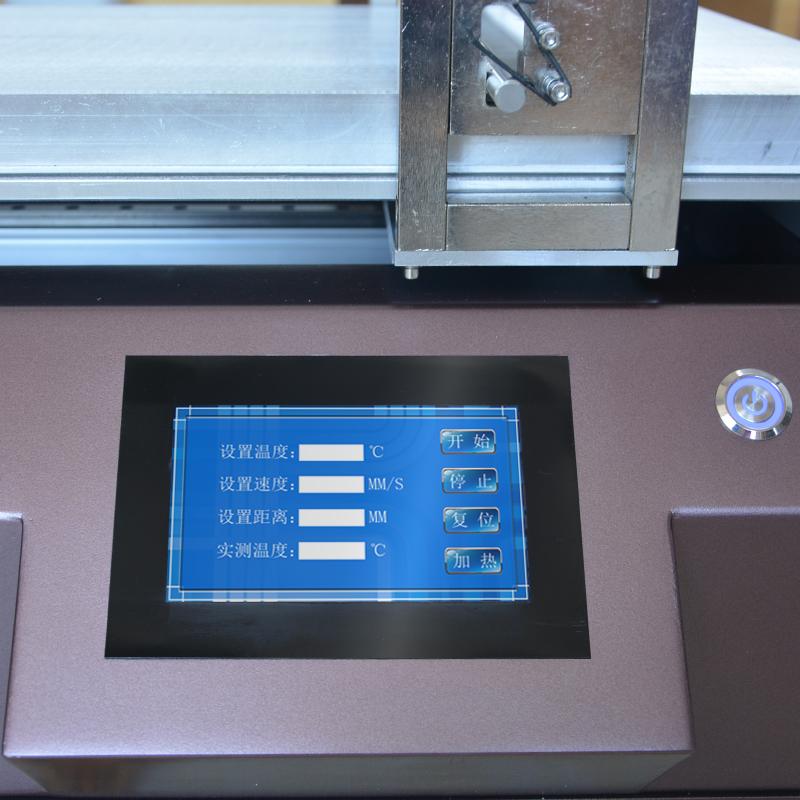

2. Touchscreen control operation, user-friendly interface
3. High Accuracy bar, Spreader accuracy up to +/- 0.001mm
4. Blade Coating thickness range 0~ 10mm, can be adjusted
5. coating speed range 5~ 180mm/s, support stepless speed

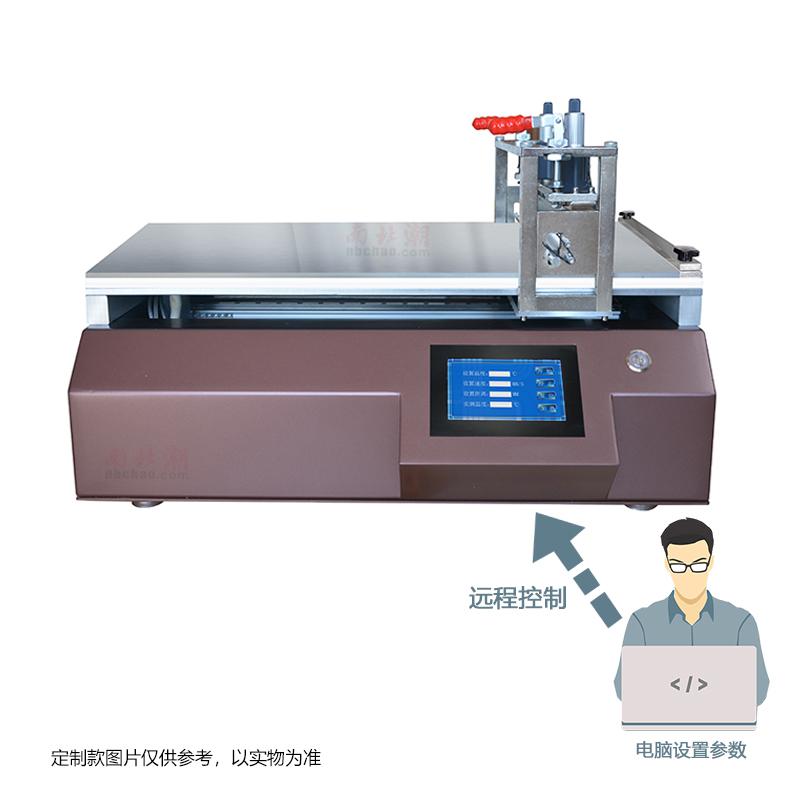

6. Support remote computer intelligent program control, can set film speed, length and temperature
7. Vacuum chuck function, effective coating area 400 * 300mm
8. Optional accessories are abundant, such as leakage tank, substrate fixing fixture, etc
9. Customizable features include jet system, UV solid inclusion device, and automatic inking system
Principle
TBJ-X2-DJ8 Automatic Film Applicator uses the combination of bar and drawdown blade coating method to control the speed and pressure of Spreader to achieve uniform film on the basis of Vacuum chuck fixed substrate. The equipment adopts an intelligent program control system, and users can set parameters through Touchscreen or remote computer to drive the Spreader mechanism to complete the Spreader process at the preset speed and length to ensure film thickness and uniformity.
Applications
Moulding proofing of film, release paper, etc
Steps
1. Prepare the Spreader substrate and place it on the Spreader stage
2. Set Spreader parameters, including speed, length, and temperature, through Touchscreen or a remote computer

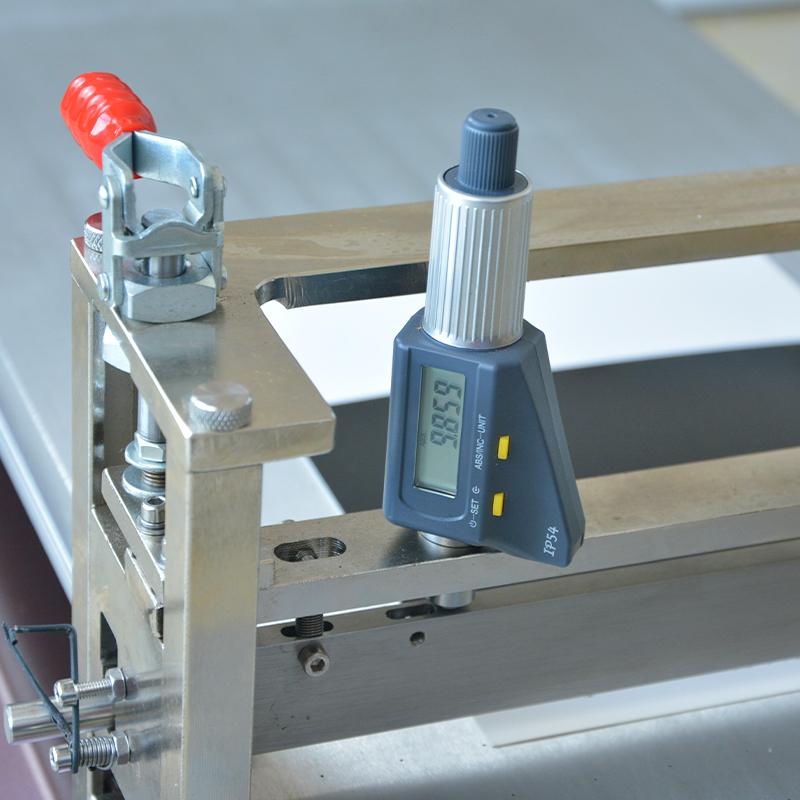

3. Select and install the appropriate bar or drawdown blade, adjust the thickness of the Spreader

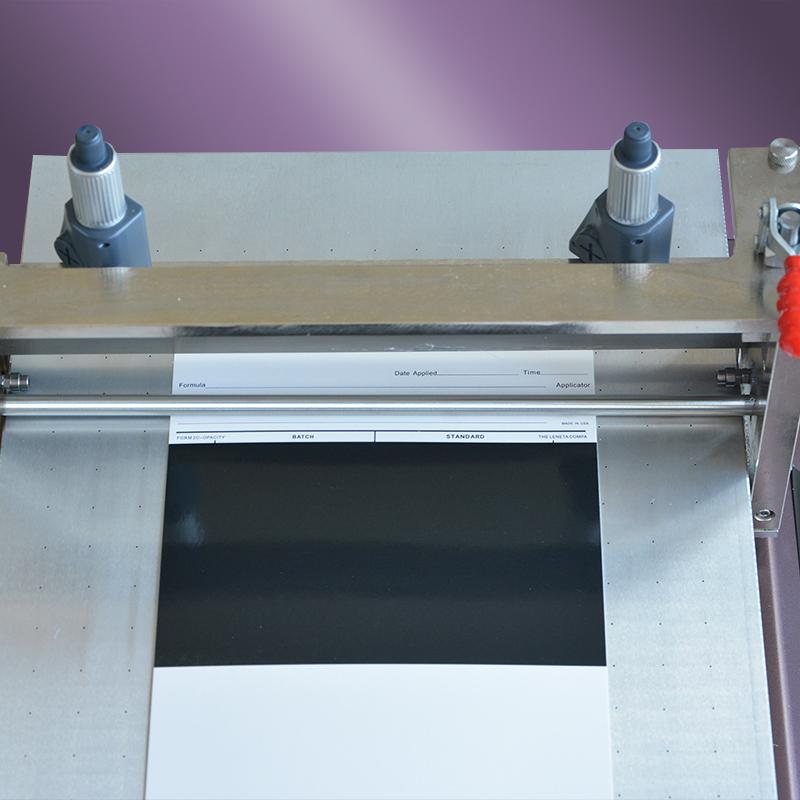

4. Vacuum chuck function fixed substrate
5. Start the Spreader process, and the device automatically runs according to the set parameters
6. After the Spreader is completed, remove the sample and perform subsequent processing
Notice
• Make sure the power supply of the device is 220V 50Hz before use to avoid voltage mismatch
• Spreader process pay attention to the coating speed range, less than 5mm/s need to be customized
• Regularly check the Vacuum chuck system to ensure that the hole spacing and aperture are normal
• Select the appropriate bar model according to the thickness requirements of the Spreader
• Avoid Spreader material overflow during operation, optional leakage tank can be used
• For uneven thickness substrates, silicone pads and weight accessories are recommended
• Customized functions need to be confirmed with the supplier in advance, such as jet systems or UV devices
• Net weight of the equipment 65KG, pay attention to safety when handling
