Overview

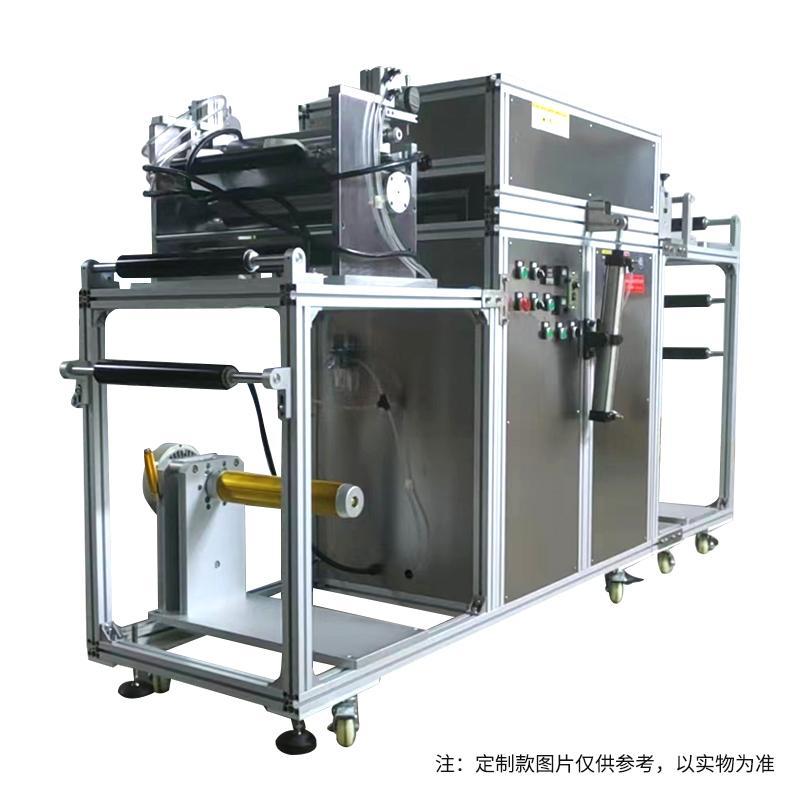

Automatic film applicator Rgd-02/500 is a small oven coil automatic film laminating machine, suitable for water-based adhesive Spreader paper, film, aluminum foil, plastic, non-woven fabrics and other non-elastic materials. The equipment has a complete Spreader process of unrolling → scraping → drying → scraping → drying → Laminating → winding.
Features
1. The body is composed of aluminum alloy + high electrostatic spray plate, and the structure is sturdy and durable
2. Equipped with a gluing width adjustment device, composed of food-grade plastic and adjustable braces

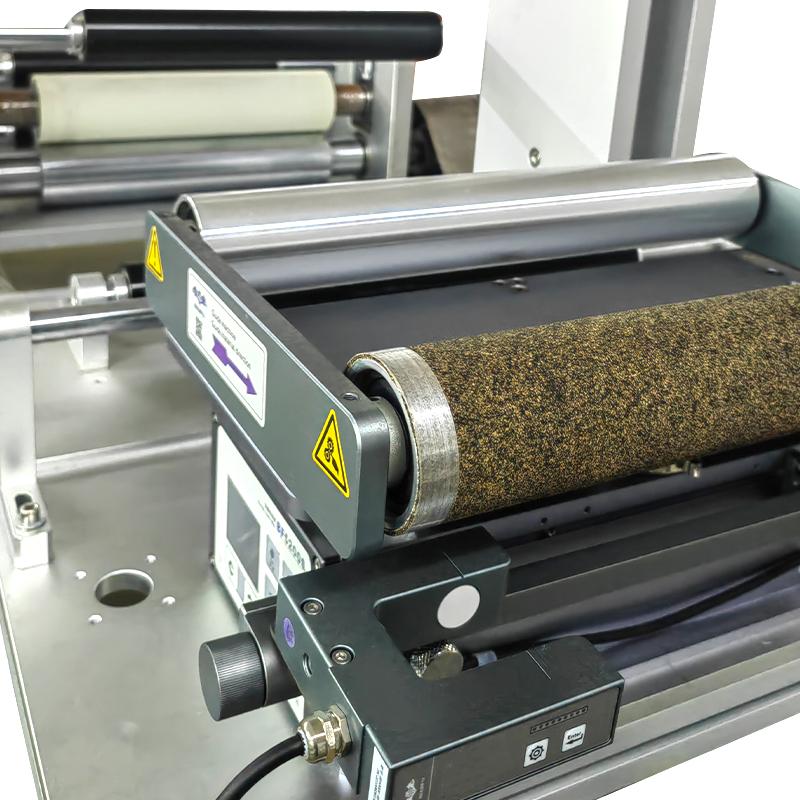

3. Equipped with two discharge racks with automatic deviation correction device to ensure material alignment

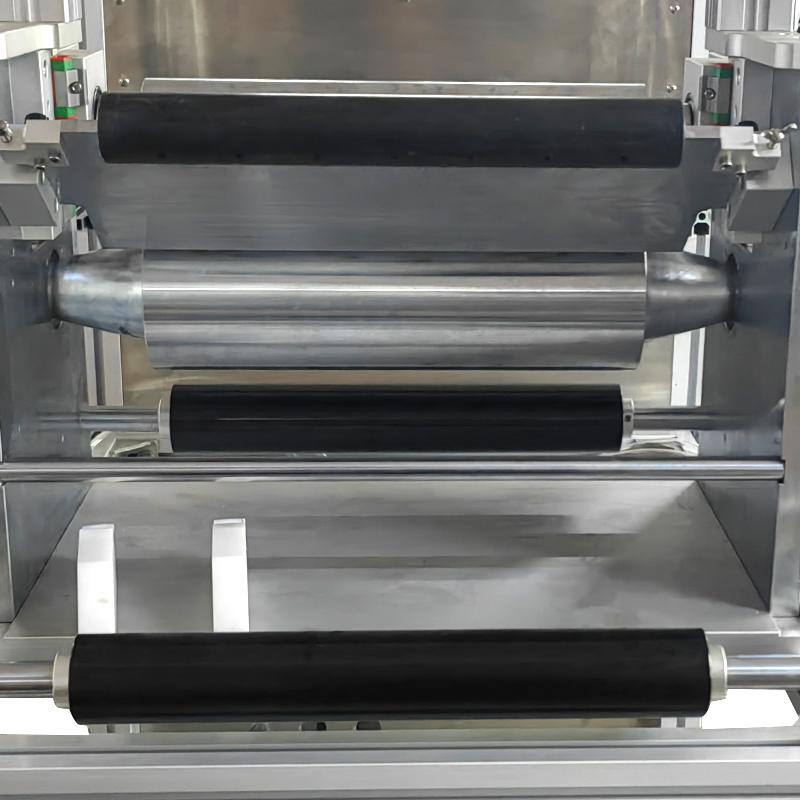

4. The coating roller group is made of double-drum precision machining parts, with smooth transmission
5. Equipped with a thickness adjustment dial meter to precisely control the thickness of the Spreader
6. The transmission platform is made of stainless steel to ensure smooth transmission of the substrate
7. The traction roller set is well designed and easy to operate
Principle
The device sends the substrate into the coating roller group for scraping through the discharge rack, and the thickness of the Spreader is adjusted by the dial table. After the coating, the substrate is smoothly transferred to the drying tunnel through the transmission platform. After two scraping and drying processes, Laminating treatment is carried out, and finally the winding is completed through the traction roller group.
Applications
Paper, film, aluminum foil, plastic, non-woven fabric and other non-elastic materials
Steps
1. Place the substrate on the discharge rack
2. Adjust the glue width and thickness to the required parameters
3. Drag the substrate between the upper and lower rollers of the traction roller
4. Tighten the rack handwheel to make the traction roller contact the upper and lower rollers
5. Start the equipment, the substrate goes through gluing, drying, Laminating and other processes
6. Rewind after finishing Spreader
Notice
• When adjusting the glue thickness, the specific thickness should be determined according to the instructions of the percentage table
• When operating the traction roller, tighten the handwheel to ensure that the upper and lower rollers are in contact
• Check whether all components are normal before the equipment runs
• Pay attention to observe the material alignment during the Spreader process
• The temperature adjustment of the drying tunnel should be within the range of RT +~ 200 ° C
