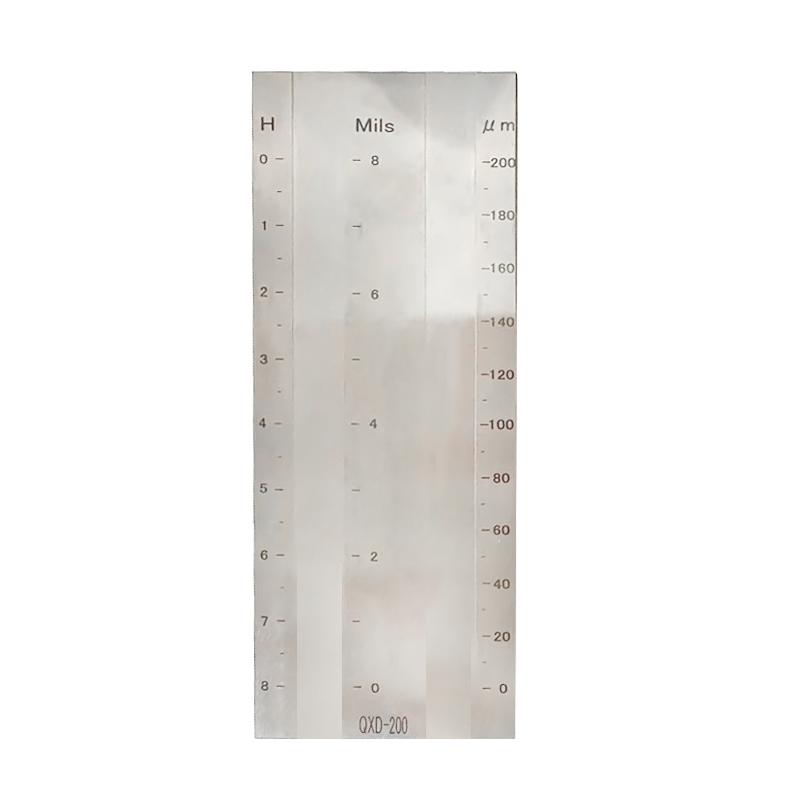

HuiNuo QXD-200 304 stainless steel GrindoMeter double-channel 0~ 200μm range

Name: HuiNuo QXD-200 304 stainless steel GrindoMeter double-channel 0~ 200μm range
Brand: HuiNuo
SKU: NB045836
Price: 248.0 USD
Availability: PreOrder

$ 248.00Ex works

Double groove structure improves test accuracy, range 0~ 200μm, Graduation 10μm, support μm, Hegman, mils three units, 304 stainless steel material to ensure wear resistance and corrosion resistance.

Model

QXD-200

Get Quote

Category : Fineness Gauge

Brand : HuiNuo

SKU : NB045836

Service :The delivery and service By NBCLab.Com

Overview

The Grindometer is an instrument for the measurement of Particle size distribution or particle size of substances such as Coatings, inks, pigments, cosmetics, etc. It is used to evaluate the particle size and dispersion of the sample by Spreader the sample on a flat substrate and then scraping the material flat using a scraper. The China QXD-200 double-channel grind fineness gauge is a standard double-channel Grindometer with a range of 0~ 200μm, Graduation is 10μm, and the groove size is 140 × 12.5mm. It is made of 304 stainless steel.

Features

1. Made of wear-resistant and corrosion-resistant 304 stainless steel 2. Double groove design for more accurate testing 3. With three units of μm, Hegman, and mils

Principle

Spreader the sample on a flat substrate, and then using a scraper to scrape the material flat, to evaluate the particle size and dispersion of the sample according to the thickness of the material remaining on the scraper or the distribution of particles.

Applications

Coatings, pastes, plastics, inks, paper

Standards

Meet the standard

Steps

1. Spreader the sample on a flat substrate 2. Use a scraper to scrape the material flat 3. Evaluate the sample particle size and dispersion according to the thickness or particle distribution of the residual material on the scraper

Scraper Type
double-channel
Number of grooves
2
Range
0~200μm
Graduation
10μm
Scale unit
μm、Hegman、mils
Scraper Size
175*62.5*10mm
Groove Size
145*11.5mm
scraper material
304 stainless steel
Drawdown blade material
304 stainless steel
