TQC sheen SP1703 cross-cutting cutter head, stainless steel 6 teeth 2mm pitch

Name: TQC sheen SP1703 cross-cutting cutter head, stainless steel 6 teeth 2mm pitch
Brand: TQC sheen
SKU: NB004584
Price: 374.0 USD
Availability: InStock

$ 374.00Ex works

Made of stainless steel, 6-tooth design, 2mm spacing, ISO/DIN 2409 standard, suitable for soft substrate film thickness testing to ensure cutting accuracy and durability.

Model

SP1703

Get Quote

Category : Paint Film Cross-Cut Cutter

Brand : TQC sheen

SKU : NB004584

Service :The delivery and service By NBCLab.Com

Overview

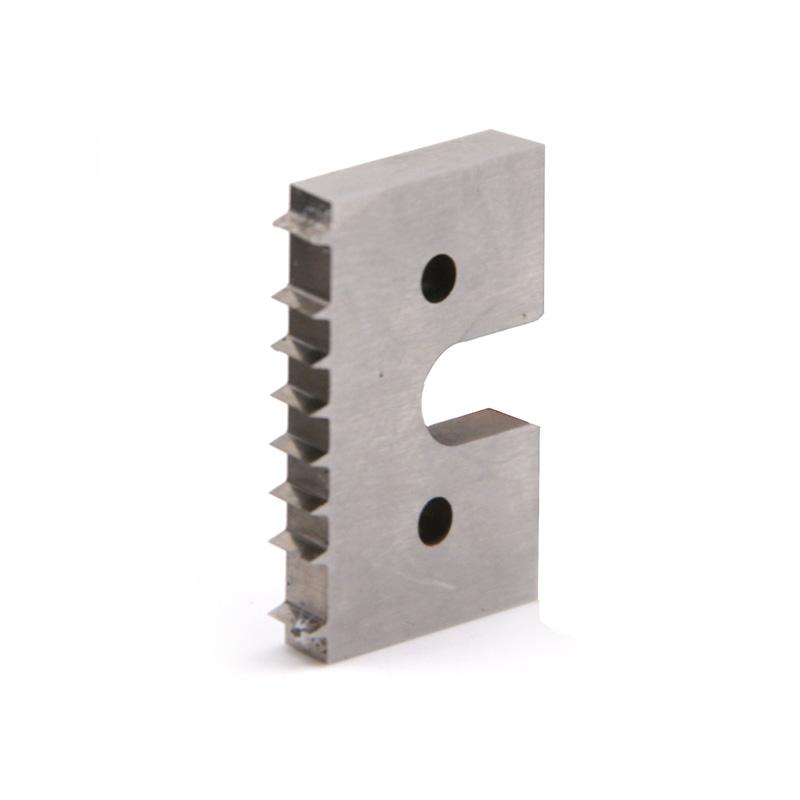

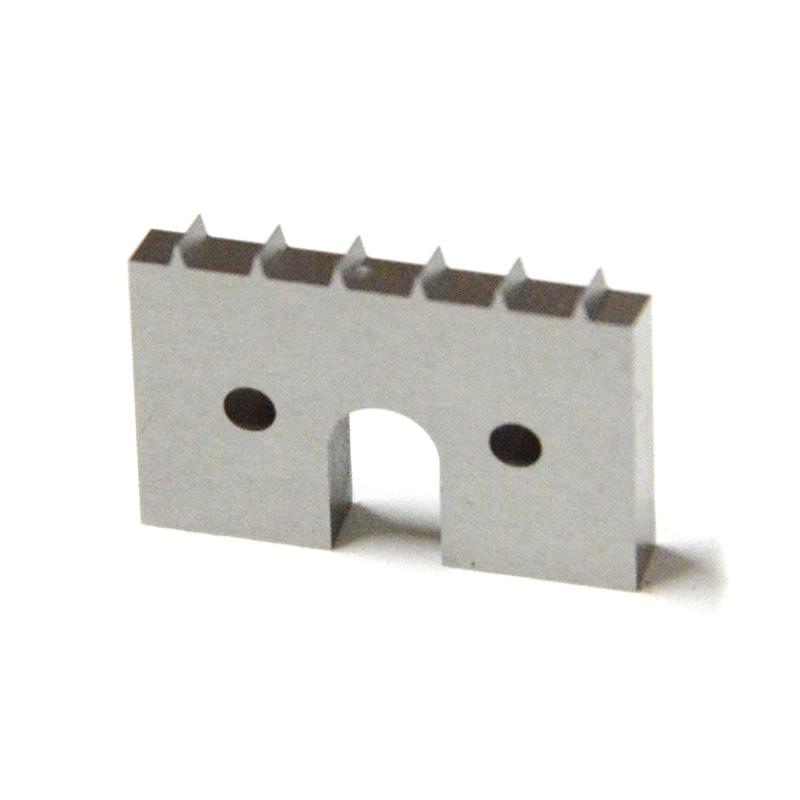

The TQC sheen SP1703 cross-cut cutter head is a professional coating adhesion testing tool for coating film thickness testing on soft substrates. The cutter head is made of stainless steel and meets the requirements of ISO/DIN 2409.

Features

1.6 Tooth design to ensure Test accuracy 2.2Mm cutter pitch for specific film thickness range 3. Stainless steel material guarantees durability 4. Compliance with international standards ISO/DIN 2409 5. Designed for soft substrate coating testing

Principle

The cross-cut cutter head evaluates the adhesion performance between the coating and the substrate by cutting a regular grid pattern on the coating surface. The coating adhesion mass is judged by observing the flaking of the coating after cutting.

Applications

Coating adhesion testing, mass testing, laboratory analysis

Standards

ISO/DIN 2409

Steps

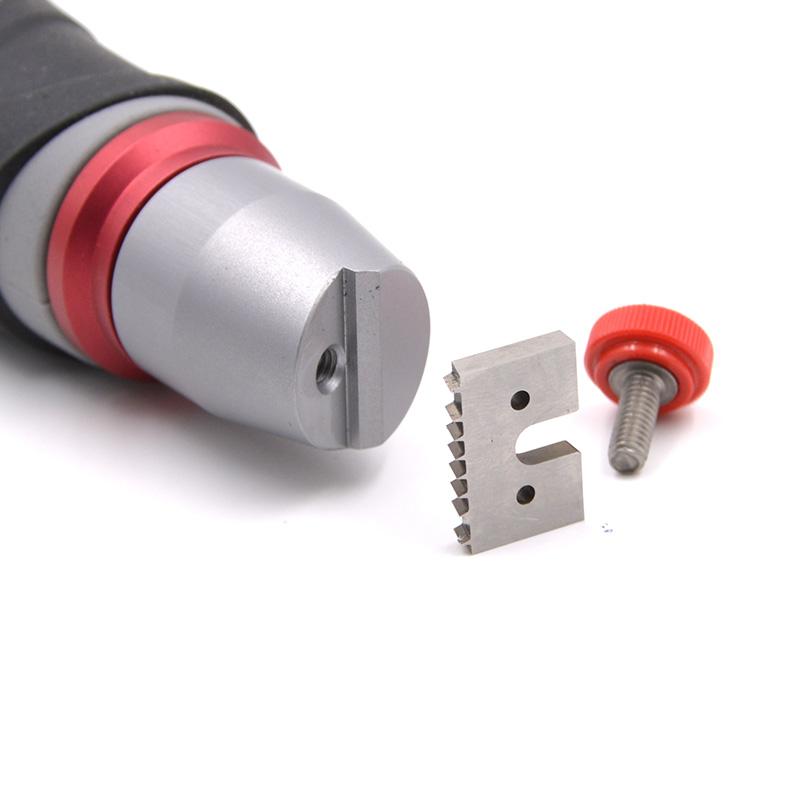

1. Install the cutter head on the handle of the cross-cut cutter 2. Apply uniform pressure to the coating surface for cutting 3. Form a regular grid pattern 4. Assess coating flaking 5. Determine the adhesion grade according to the standard

Notice

• Only for soft substrates with film thickness < 60 µm or coatings of 61-120 µm • Make sure the knife head is clean and free of damage before use • Keep the pressure even when cutting • Avoid using on hard surfaces • Regularly check the abrasion of the cutter head

Number of teeth
6 teeth
Tooth spacing
2mm
Cutting head material
stainless steel
application standard
ISO/DIN 2409
Applicable film thickness environment
< 60 µm (soft substrate) > 61 to 120 µm
