Overview

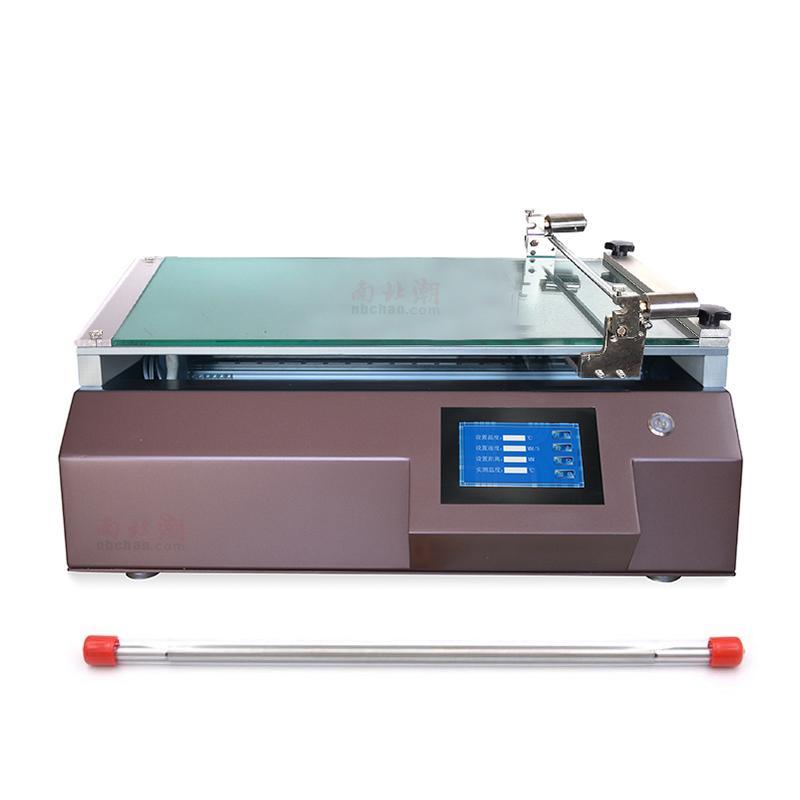

Touch Lab TBJ-A1 bar Lab Film Applicator is China Automatic Film Applicator, model TBJ-A1-DJ8. The product is driven by a servo motor to realize High Accuracy film. The Spreader speed range is 1~ 500mm/s, and precise wet-film can be Spreader on different substrates. Suitable for Moulding proofing of thin films, polymer materials, Coating inks, Stock, silicone, etc.
Features
1. Use servo motor drive to achieve higher accuracy film
2. Spreader speed range 1~ 500mm/s stepless speed regulation
3. Spreader accuracy up to +/- 0.001mm
4. Spreader displacement digital display, displacement accuracy control at different speeds
5. Optional accessories are abundant, including leakage tank, substrate fixing fixture, etc
6. Support custom functions, such as jet system devices, UV solid-containing devices, and automatic inking systems
Principle
The Automatic Film Applicator performs Spreader through the servo motor drive bar to realize stepless variable speed control. It can move at a precise speed on the Glass plate Spreader stage and Spreader out uniform wet-film on different substrates. Spreader displacement is displayed through the digital display system to ensure film accuracy.
Applications
Moulding Proofing of Films, Polymer Materials, Coating inks, Stocks, Silicone, etc
Steps
1. Prepare the Spreader substrate and place it on the Spreader stage
2. Optional accessories such as leakage tank or base fixture are installed as required
3. Set Spreader speed and parameters
4. Start the device for Spreader operation
5. Clean the equipment after completion
Notice
• Make sure the power supply is 220V 50Hz before use
• Spreader attention to the substrate fixed to prevent displacement
• Regularly clean coating tables and bars
• Choose whether to use silicone pad and weight according to the thickness of the substrate
• Customized functions need to be confirmed in advance
