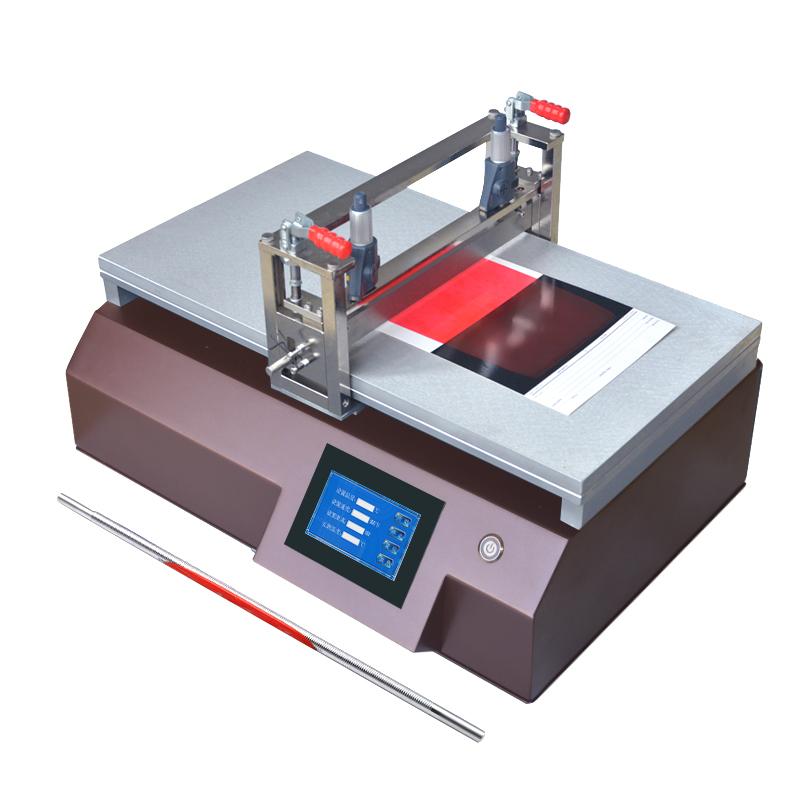

China TBJ-X3-DJ21 Automatic Film Applicator Small Lab Film Applicator

Name: China TBJ-X3-DJ21 Automatic Film Applicator Small Lab Film Applicator
Brand: zy
SKU: NB045857
Price: 4375.0 USD
Availability: PreOrder

$ 4375.00Ex works

Spreader accuracy of +/- 0.003mm, Spreader thickness range of 0~ 10mm, coating speed 5~ 180mm/s, equipped with Vacuum chuck and heating function, improve film repRoducibility.

Model

Get Quote

Category : Automatic Film Applicator

Brand : zy

SKU : NB045857

Service :The delivery and service By NBCLab.Com

Overview

TBJ-X3-DJ21 Automatic Film Applicator is a small experimental Lab Film Applicator with imported accessories and low price, which is favored by multinational R & D institutions, universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure, the uniformity and smoothness of Spreader's gluing are guaranteed, the problem of artificial film inconsistency is solved, and the film reproducibility is significantly improved. Standard 1 China bar and 1 imported bar with an accuracy of up to 1 μm.

Features

1. Using imported accessories, the price is good and cheap; 2. Control speed and stable pressure to ensure the uniformity and smoothness of Spreader; 3. Improve film reproducibility and reduce manual differences; 4. Standard 1 China bar and 1 imported bar with accuracy up to 1μm; 5. Support a variety of Optional accessories and customized functions.

Principle

Automatic Film Applicator achieves accurate Spreader wet-film on different substrates by controlling the Spreader speed and the pressure applied to the film applicator. The main factors affecting the film include Spreader speed and pressure, and the automatic operation of the machine avoids manual inconsistencies and ensures uniform and stable coatings.

Applications

Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions

Blade Coating accuracy
±0.003mm
Spreader thickness Range
0~ 10Mm drawdown blade can be lifted
coating speed
5~ 180mm/s (< 5mm/s can be customized)
Coating Size
300*400mm
Drawdown blade material
316 stainless steel
Vacuum Area
300 * 400Mm (can be customized)
Vacuum aperture diameter
Φ1.2mm
Vacuum hole pitch
20*20mm
Coating rod specification
1 China bar + 1 imported bar with accuracy up to 1μm, effective application width 300mm (Spreader thickness determined according to bar model)
Host power supply
220V 50Hz
Dimension
630*410*520mm
weight
Net weight 65kg
speed control
Infinitely variable speed
Coating table material
aluminum alloy
Heating Temperature Range
RT+~180℃
Temperature Uniformity
±3℃
Power
1500W
Vacuum pump Size
380*180*280mm
Optional Accessories
Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and weight (for applications with uneven thickness of Spreader substrate), application width control baffle
customizable function
Jet system device, UV solid inclusion device, automatic inking system
