Overview

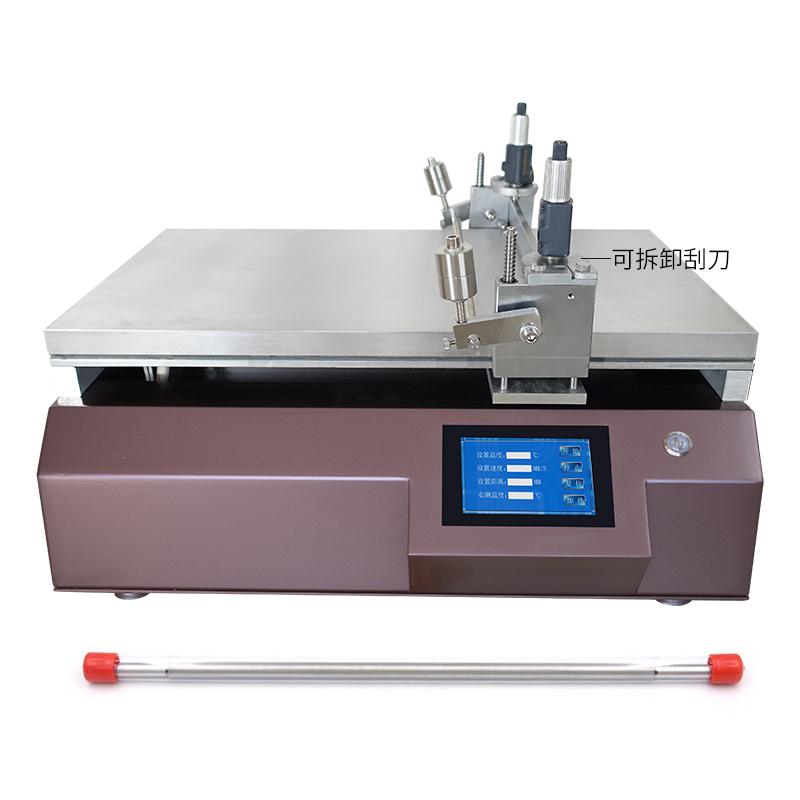

TBJ-X3-DJ22 Automatic Film Applicator adopts imported accessories, which is cheap and favored by multinational R & D institutions, universities and scientific research institutions at home and abroad. The uniformity and smoothness of Spreader glue coating are guaranteed by controlling speed and stable pressure, which solves the problem of inconsistent artificial film and improves film reproducibility. The equipment is an integrated automatic film applicator with Vacuum chuck, heating, bar and drawdown blade. It adopts 316 stainless steel detachable drawdown blade and has heating function. It is suitable for experimental Spreaders that need to be heated and dried.
Features
1. Adopt imported accessories, the price is good and cheap; 2. Control speed and stable pressure to ensure the uniformity and smoothness of Spreader; 3. Improve film reproducibility and reduce manual differences; 4. Vacuum chuck, heating, bar, drawdown blade integrated design; 5.316 stainless steel removable drawdown blade, easy to clean and replace; 6. With heating function, support heating drying experiment; 7. Infinitely variable coating speed, range 5~ 180mm/s; 8. Accessories are rich, such as liquid leakage tank, substrate fixing fixture, etc.; 9. Customizable features include an air jet system, a UV inclusion device, and an automatic inking system.
Principle
Spreader precision wet-film on different substrates is achieved by the Automatic Film Applicator by controlling the speed of the Spreader and the steady pressure applied to the film applicator. The Vacuum chuck system fixates the substrate, the heating function assists the Spreader process, and the combination of bar and drawdown blade ensures the thickness and uniformity of the Spreader, thereby improving the conformity and reproducibility of the film.
Applications
Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions, laboratories Spreader experiments
Steps
1. Prepare the substrate and place it on the Vacuum chuck table; 2. Install the bar or drawdown blade as needed; 3. Set the coating speed and pressure parameters; 4. Start the equipment for Spreader; 5. Use the heating function for drying (if necessary); 6. Remove the drawdown blade for cleaning after completion.
Notice
* Ensure that the power supply of the equipment is connected correctly before operation; * Pay attention to the speed and pressure settings during the Spreader process to avoid uneven; * Regularly clean and replace the drawdown blade to maintain hygiene; * When using the heating function, pay attention to temperature control to prevent overheating; * Customized functions need to be selected according to actual needs; * Vacuum chuck system needs to check whether the aperture and aperture are suitable.
