Overview

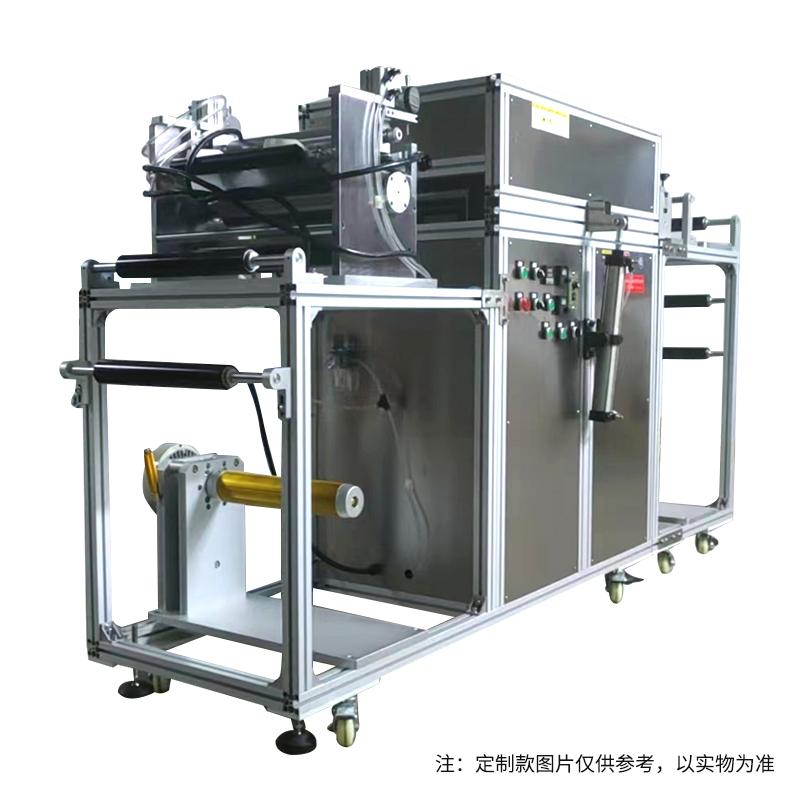

Automatic film applicator Rgd-01/800 is a factory direct oven coil Automatic film applicator, suitable for non-elastic materials such as water-based adhesive Spreader paper, film, aluminum foil, plastic, non-woven fabrics. The equipment integrates the functions of unwinding, scraping, drying, and winding, which can realize efficient and automated Spreader operations.
Features
1. Solid body composed of aluminum alloy and high electrostatic spray plate
2. Glue width adjustment device equipped with food-grade plastics and adjustable braces
3. Double discharge rack design with automatic deviation correction device to ensure material alignment
4. Double drum precision machining coating roller group, smooth transmission
5. Equipped with thickness adjustment dial meter to precisely control Spreader thickness
6. Stainless steel transmission platform to ensure smooth transmission of the substrate
7. Spreader work is completed by power transmission
8. Drying Temperature range RT +~ 200 ℃ to meet different process requirements
Principle
The device sends the substrate into the coating roller group for scraping through the discharge rack, and the thickness of the Spreader can be precisely adjusted through the dial table. The substrate after the Spreader is smoothly transferred to the drying tunnel through the stainless steel transmission platform for drying, and finally the traction roller group completes the winding work. During the whole process, the deviation correction device can automatically adjust the material alignment to ensure the Spreader mass.
Applications
Paper, film, aluminum foil, plastic, non-woven fabric and other non-elastic materials
Steps
1. Place the substrate on the discharge rack
2. Adjust the glue width and thickness to the required parameters
3. Drag the substrate between the upper and lower rollers of the traction roller
4. Tighten the rack handwheel to make the traction roller contact the substrate
5. Start the Device to Start the Auto Spreader Process
6. Monitor Spreader Thickness and Dryer Temperature
7. Wrap up the material after completing the Spreader
Notice
• Spreader thickness adjustment needs to be precisely controlled according to the indicator
• The contact pressure of the traction roller should be appropriate to avoid damage to the substrate
• Drying tunnel temperature should be set reasonably according to material characteristics
• Check whether all components are normal before the equipment runs
• Spreader operation for non-elastic materials only
