Overview

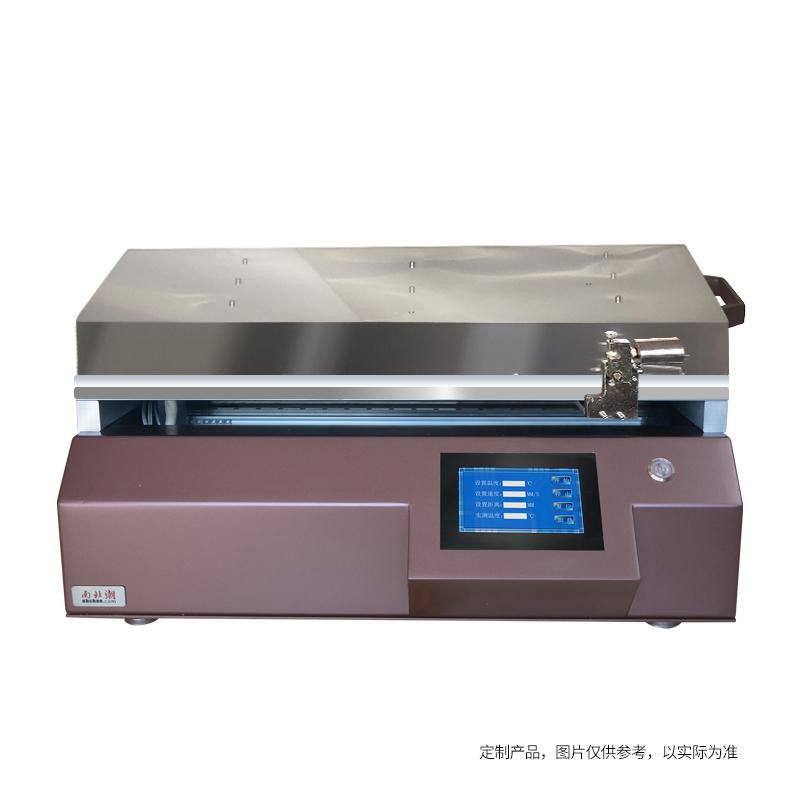

TBJ-B1-DJ5 Automatic Film Applicator is a China small Spreader test equipment, all imported accessories, low price, favored by multinational R & D institutions, well-known universities and scientific research institutions at home and abroad. The equipment ensures the uniformity and smoothness of Spreader coating by controlling the speed and stable pressure of Spreader, effectively solves the problem of artificial film inconsistency, and significantly improves film reproducibility.
Features
1. Using imported accessories, cost-effective
2. Spreader accuracy up to +/- 0.003mm, thickness range 0~ 10mm
3. drawdown blade can be lifted, coating speed 5~ 180mm/s (< 5mm/s can be customized)
4. Digital Spreader Speed, Infinitely Variable Speed Control
5. Equipped with 400 * 300mm Vacuum chuck and UV light curing system
6. Multiple Optional Accessories and Customization
Principle
Automatic Film Applicator achieves accurate wet-film Spreader on different substrates by precisely controlling the speed of the Spreader and the stable pressure applied to the film applicator. Its Working Principle is based on mechanical automation replacing manual operation to eliminate the problem of coating inconsistencies caused by human factors and ensure the uniformity and reproducibility of the Spreader process.
Applications
Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions
Steps
1. Prepare the Spreader substrate and place it on the Spreader stage
2. Set Spreader speed and thickness parameters according to requirements
3. Start Vacuum chuck fixed substrate
4. Automatic Spreader Operation
5. For curing, start the UV light curing system
6. Remove the sample after completing the Spreader
Notice
• Make sure the power supply of the device is 220V 50Hz before use
• Spreader check drawdown blade condition and cleanliness
• Select the corresponding weight configuration according to the thickness of the substrate
• Pay attention to safety protection during UV curing
• Maintain equipment regularly to ensure Spreader accuracy
• Customized functions need to confirm technical parameters in advance
