Overview

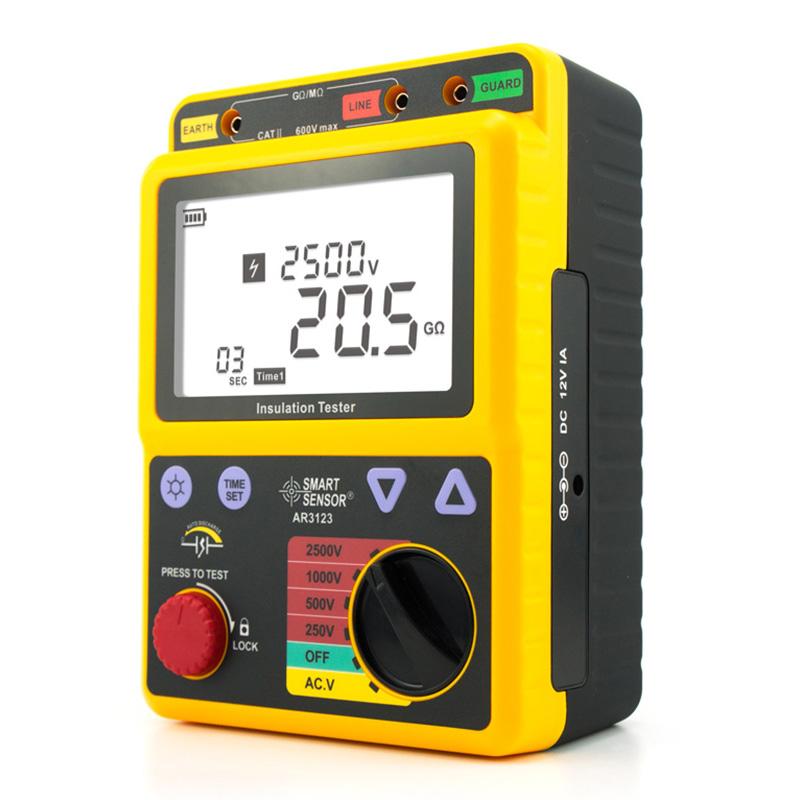

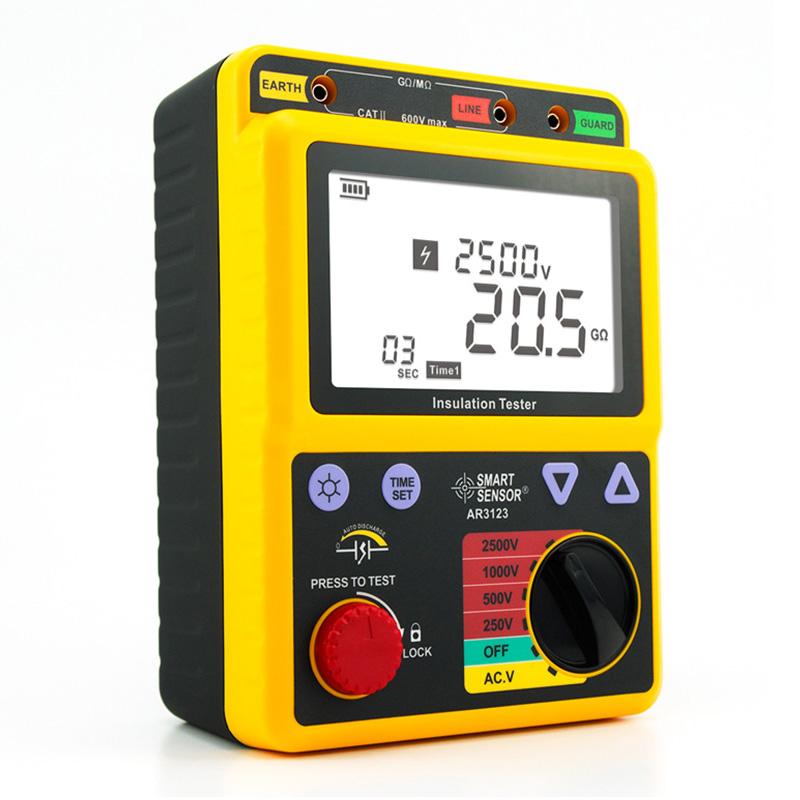

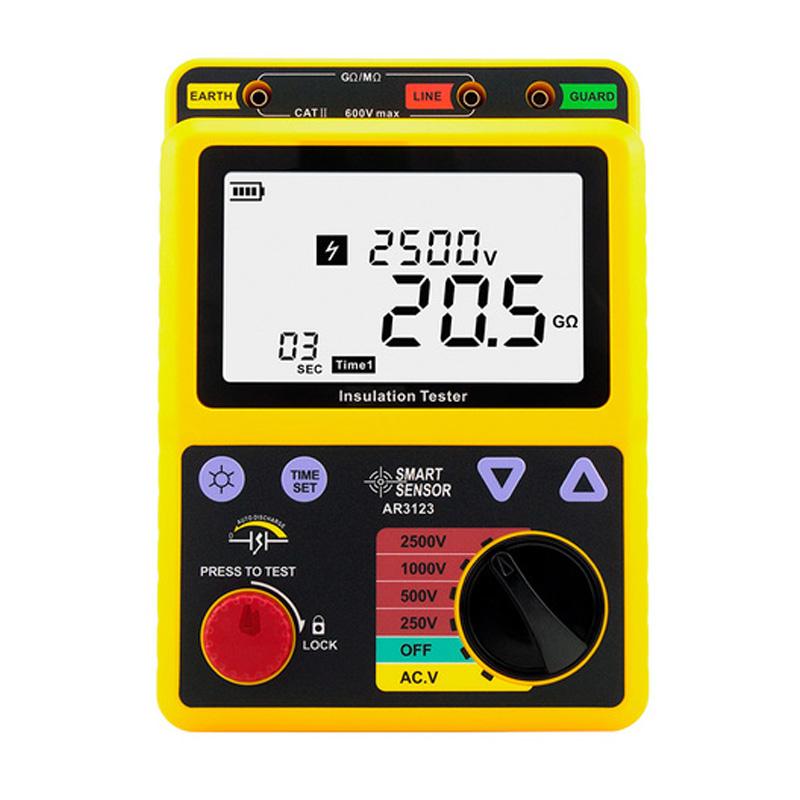

AR3123 high voltage insulation resistance meters are widely used to measure the insulation resistance of generators, motors, power transformers, wiring, appliances, and other electrical devices. They are often used in routine maintenance procedures to indicate changes in motor insulation resistance over time. Large changes in insulation resistance may indicate potential failures, so regular calibration is required to ensure meter accuracy.
Features
1. Multi-gear output voltage selection: 250V, 500V, 1000V, 2500V
2. Measurement range: up to 99.9GΩ
3. High Accuracy measurement ： +/- 5% rdg +/- 3dgt
4. With AC/DC voltage test function: 30~ 600V
5. Perfect overload protection: insulation resistance range AC 1200V/10 seconds, voltage range AC720V/10 seconds
6. High voltage performance: AC 8320V/5 seconds
7. LCD backlight display for easy observation
8. Equipped with high voltage probe
9. Support polarization index measurement
10. External power supply, portable design
Principle
The high voltage insulation resistance meter calculates the insulation resistance value according to Ohm's law by applying a high voltage DC voltage to the tested equipment, measuring the leakage current flowing through the insulating material. By monitoring the change trend of insulation resistance, the insulation condition and potential failure risk of electrical equipment can be evaluated.
Applications
Electric power industry, industrial production, building electrical, aerospace, scientific research, railway system, power equipment manufacturing
Standards
Specific standards not mentioned in the product literature
Steps
The specific operation steps are not provided in the product information.
Notice
No specific precautions are provided in the product documentation
