Overview

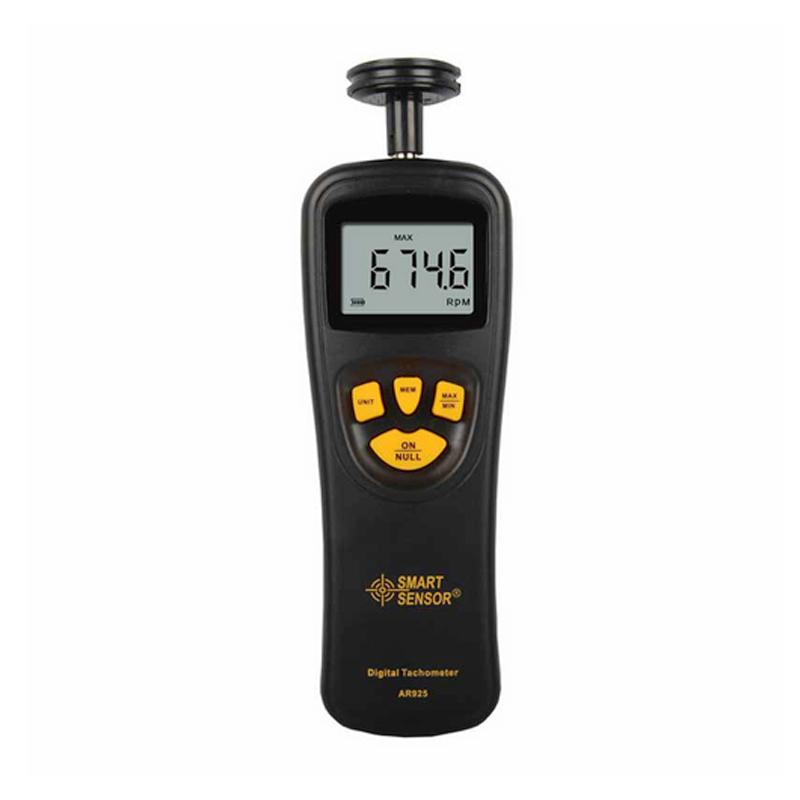

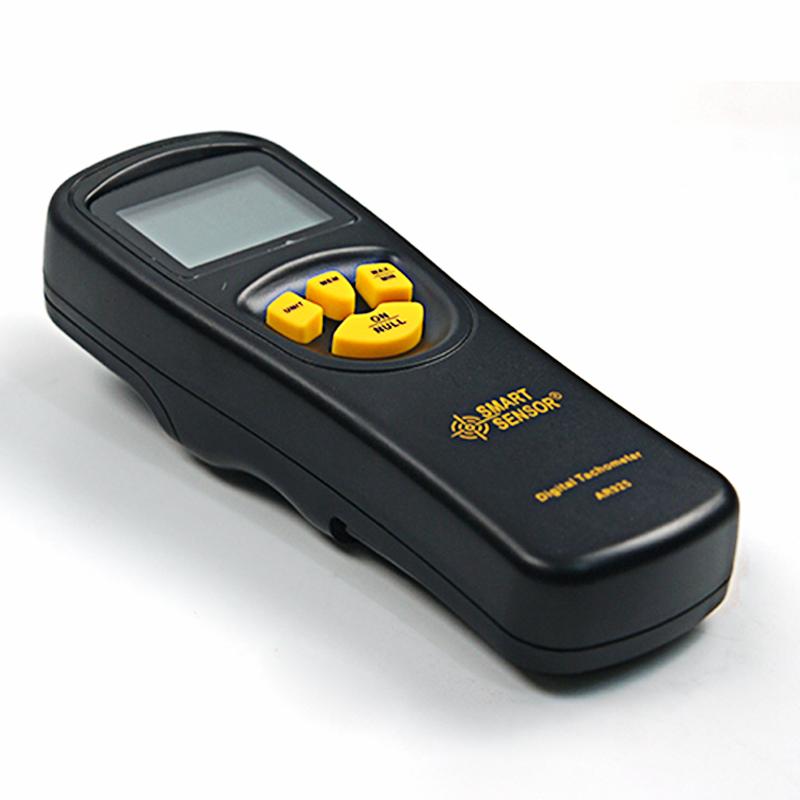

The AR925 Rotation speedometer is a handheld centrifugal Rotation speedometer under the brand SMART SENSOR, which is used to determine the Rotation speed, linear speed or Frequency of motors. The product is widely used in the machinery industry, including motors, fans, paper, plastics, chemical fibers, washing machines, automobiles, aircraft, steamships and other manufacturing fields.
Features
1. Measurement range: 0.5~ 19999RPM Rotation speed, 0.05~ 19999.9m/min line speed, 0.2~ 6560Ft/min line speed
2. High resolution: 0.1RPM, 1RPM; 0.01m/min, 0.1m/min, 1Ft/min
3. Measurement accuracy ： +/- ( 0.05% + 1 word) measurement error
4. Fully functional: with maximum/MIN Minimum recording, multi-Probe configuration, low power prompt, data locking, LCD backlight and other functions
5. Portable design: Net weight only 132g, size 155 * 55 * 35mm, powered by 3 * 1.5V AAA battery
Principle
The AR925 Rotation speed meter uses Contact Measurement mode to accurately determine the Rotation speed, Linear Speed or Frequency of swirl/spin equipment through a measurement system with a sampling Frequency of 0.8 seconds.
Applications
Automotive industry, industrial sector, scientific laboratories, marine and marine engineering, wind power sector, oil and gas industry
Steps

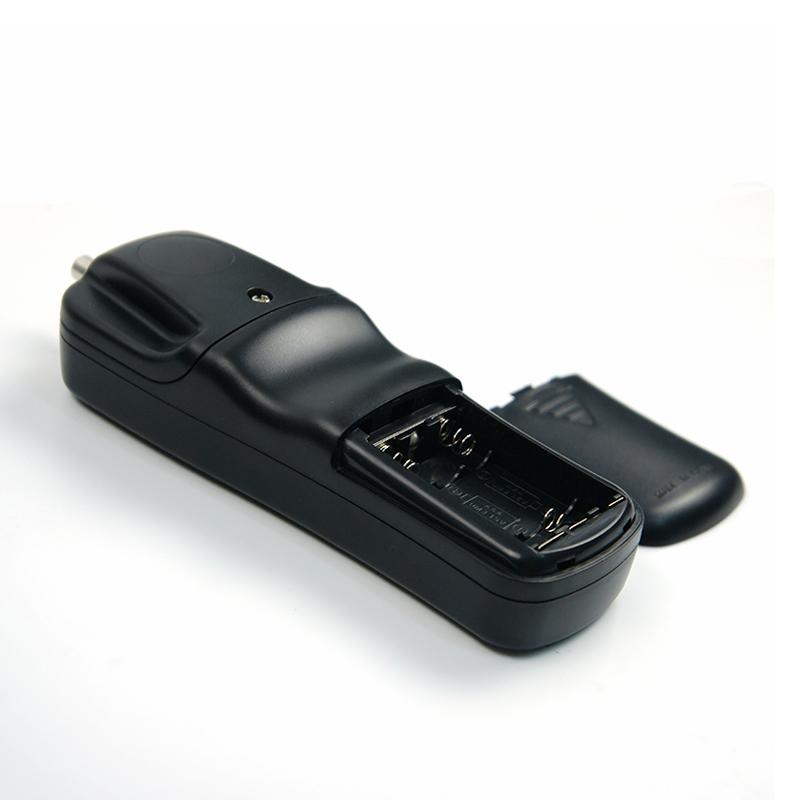

1. Install 3 * 1.5V AAA battery
2. Choose the right measurement Probe
3. Probe into contact with the object under test
4. Read the measurement data on the LCD display
5. Data lock function can be used to record measurement results
Notice
• Ambient Temperature 0~ 50 ℃, Storage Temperature -20~ 70 ℃
• Pay attention to the battery level, and replace the battery in time when there is a low power prompt
• Probe in good contact with the measured object during measurement
• Avoid use in environments beyond the specified Temperature range
• Please remove the battery when not in use for a long time
