Overview

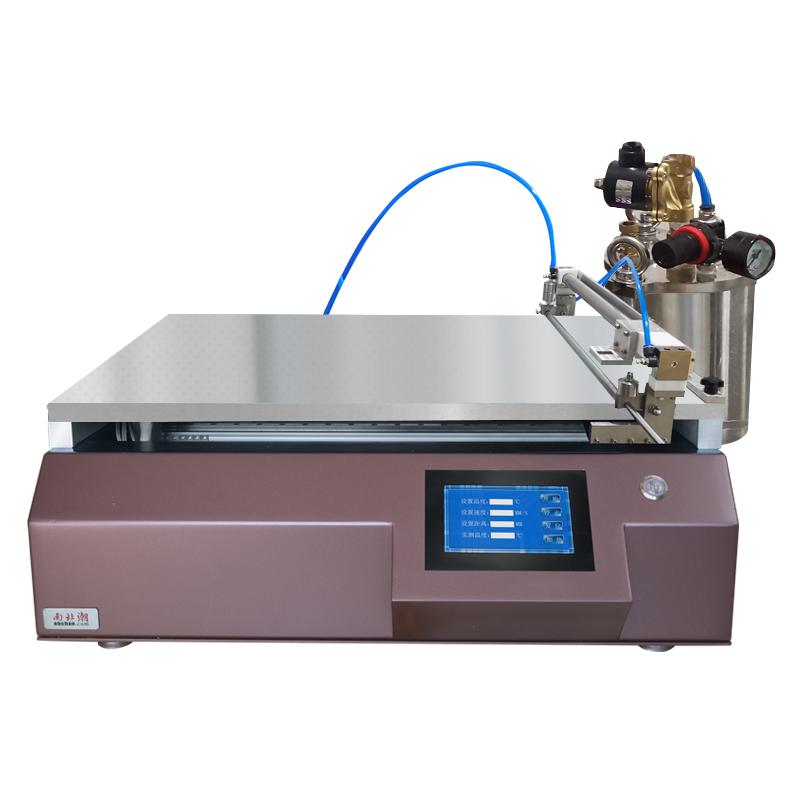

TBJ-X3-DJ23 Automatic Film Applicator is a customized experimental small Coater with automatic feeding system, with heating and Vacuum chuck functions, Coating size 300 * 600mm, support bar and drawdown blade coating methods, standard High Accuracy Mayer Rods. The equipment uses imported accessories to ensure Spreader uniformity and smoothness through control speed and stable pressure, improving film reproducibility.
Features
1. Support bar and drawdown blade two coating methods, standard High Accuracy Mayer Rods
2. With automatic feeding system, using reciprocating linear motion, the amount of material can be adjusted
3. With heating function, Temperature range RT +~ 180 ℃, uniformity +/- 3 ℃
4. Equipped with Vacuum chuck system, effectively fixed substrate
5. Adjustable coating speed 5~ 200mm/s, support stepless speed control
6. Touchscreen control, easy to operate
7. Provide a variety of customization options, such as automatic lame plating, UV curing, etc
Principle
The Spreader effect is ensured by controlling the speed of the Spreader and the stable pressure applied to the film applicator. The substrate is fixed by Vacuum chuck, and the automatic feeding system realizes the outflow feeding through the air source pressure. The reciprocating linear motion mode is used for accurate feeding.
Applications
Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions
Steps
1. Prepare the substrate and place it on the Spreader stage
2. Vacuum chuck fixed substrate
3. Set Spreader parameters (speed, pressure, etc.)
4. Start the automatic feeding system
5. Select coating method (bar or drawdown blade)
6. Start the Spreader Process
7. Remove the sample after completing the Spreader
Notice
• Make sure the power supply of the device is connected correctly before use
• Pay attention to the air pressure adjustment range of the feeding system during operation
• Regularly check the working status of the Vacuum chuck system
• Select appropriate Spreader parameters based on substrate thickness
• Pay attention to the temperature control range when heating
• Mixing Tank Pressure shall not exceed the maximum value of 8Mpa
