Overview

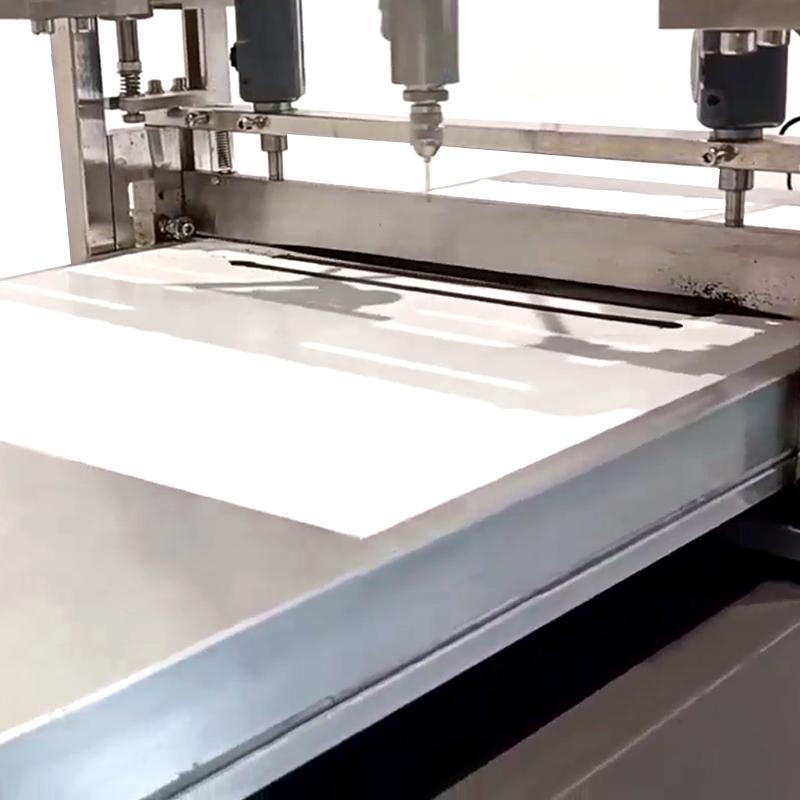

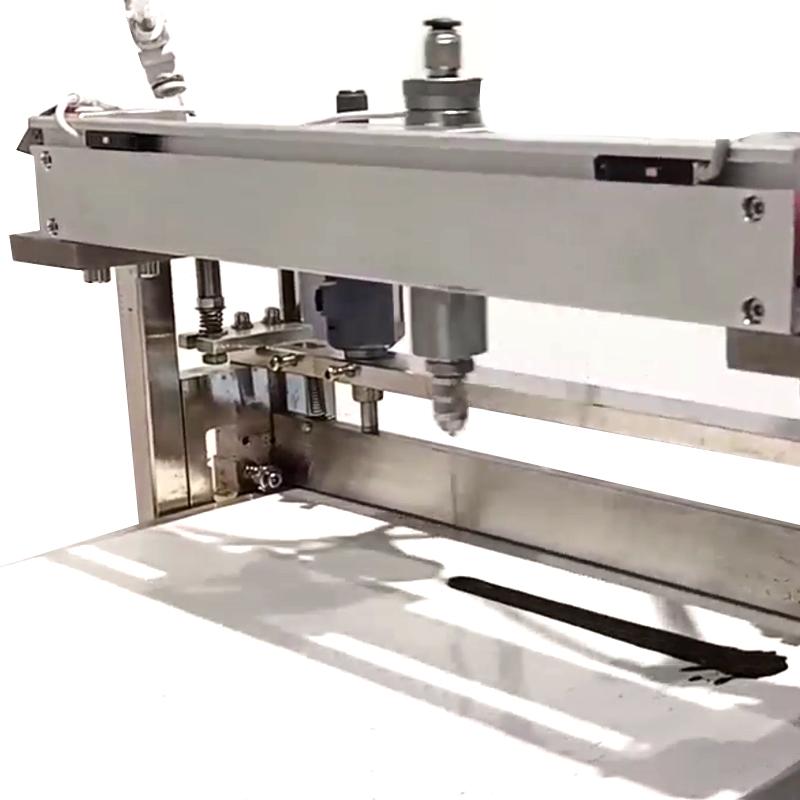

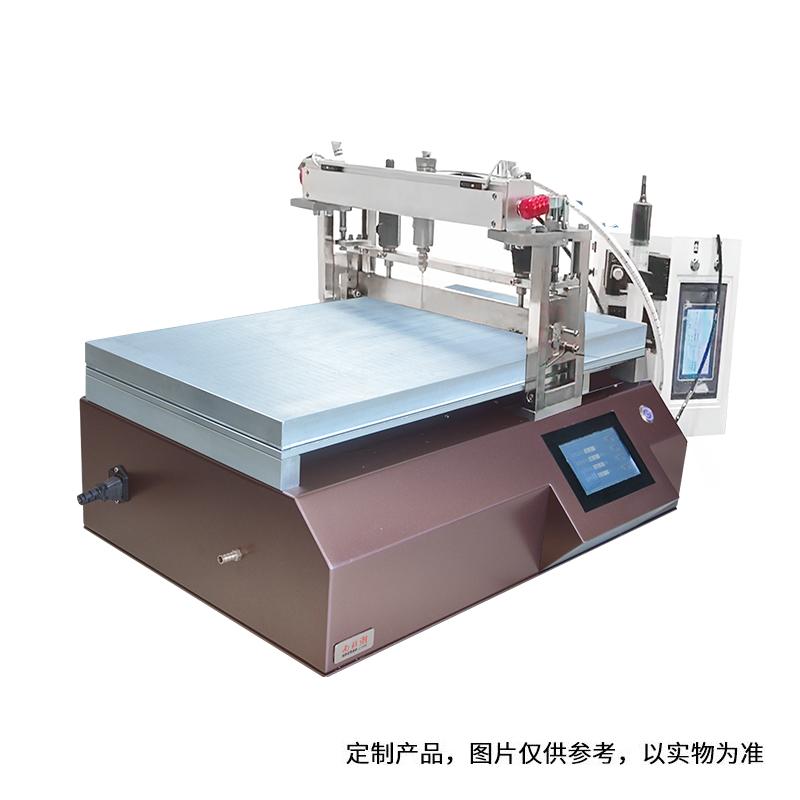

TBJ-B2-DJ10 Injection Automatic Feeding Film Applicator is a drawdown Bar & Blade integrated automatic Coater, using Glass baseplate, film format 400 * 400mm, syringe pump Flow rate can be adjusted according to actual needs, injection Travel 400mm. The device solves the problem of artificial film inconsistency by automatically controlling Spreader speed and pressure, significantly improves film reproducibility, standard bar imported film accuracy up to 1μm.
Features
1. Various coating methods: bar, drawdown blade, injection automatic feeding integrated design
2. Spreader thickness range: Blade Coating 0.001~ 10mm adjustable, bar Spreader 1~ 571.5μm
3. High Accuracy Control: Blade Coating accuracy +/- 0.003mm, meyer rod coating accuracy +/- 0.001mm
4. Flexible rate adjustment: coating speed 5~ 200mm/s, stepless speed control
5. Intelligent operation: Touchscreen control, digital display time display
6. Automatic feeding system: Flow rate of syringe pump adjustable, range 0.831nL-150.5ml/min
7. Stable structure: Glass coating table, mechanical fixture, rated linear thrust > 280N
Principle
Automatic film applicator automatically Spreaders accurate wet-film on different substrates by precisely controlling the speed of the Spreader and the pressure applied to the film applicator. The syringe pump automatically feeds according to the set Flow rate, and the drawdown blade or bar moves evenly at an adjustable speed to ensure coating conformity and reproducibility.
Applications
Coatings testing, coating prepatives, materials research, quality control, Spreaders
