Overview

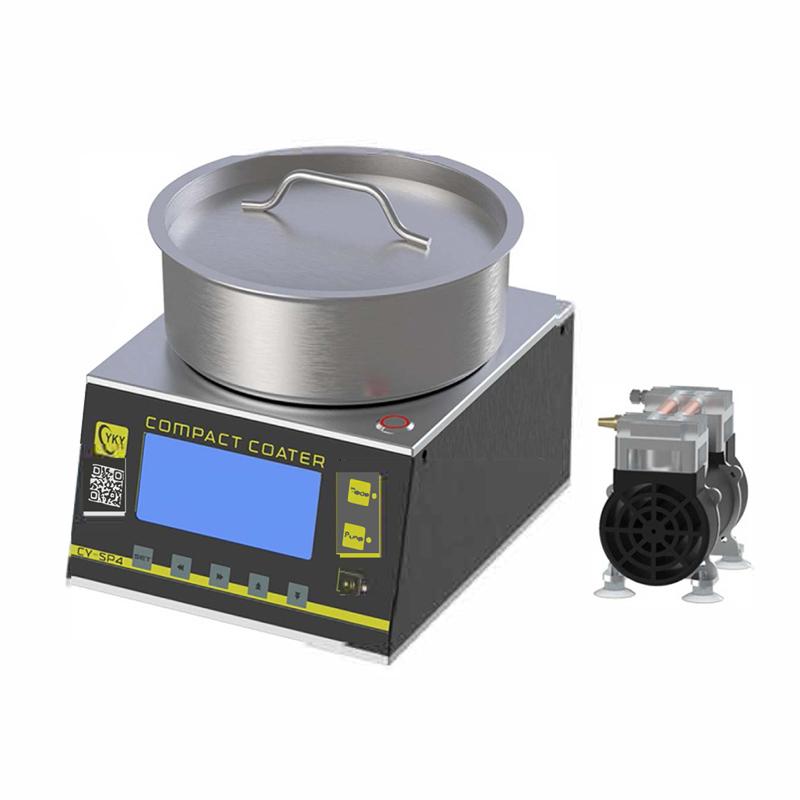

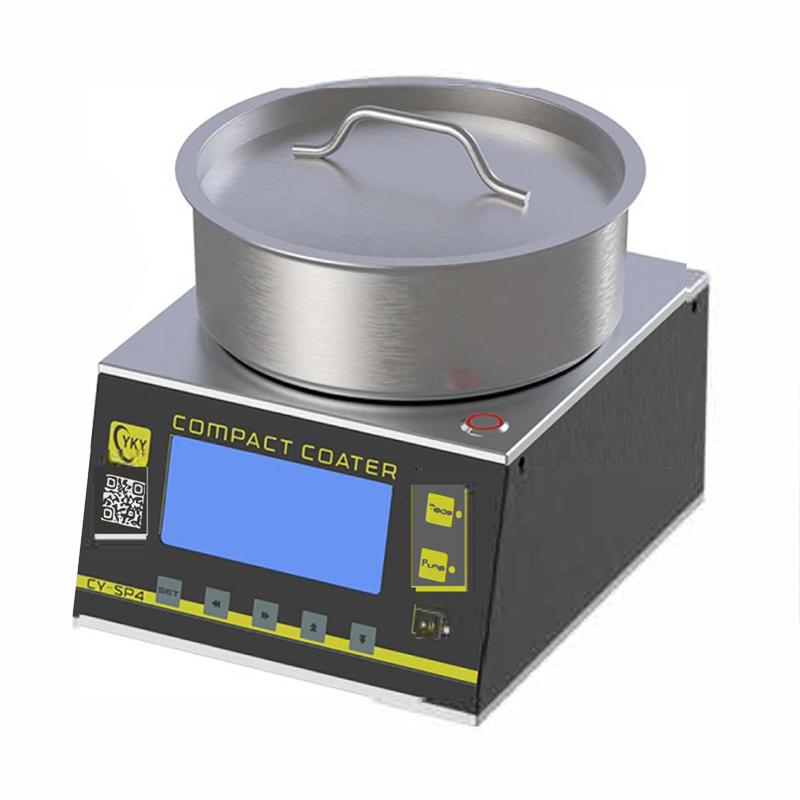

CY-SPC4-SS spin Coater is a miniaturized homogenizing equipment of Chengyue brand. It adopts aluminum alloy structure and 304 stainless steel cavity. Appearance is beautiful and sturdy. The instrument is equipped with a precision motor with a maximum Rotation speed of 8000 rpm. It is controlled by buttons and a high-brightness LCD screen. It supports direct homogenizing and pre-stored homogenizing. Linear dispersion for program-controlled homogenizing, which guarantees performance and function while reducing volume. It is suitable for laboratory use.
Features
1. Miniaturized design, the overall use of aluminum alloy structure, 304 stainless steel cavity, Appearance beautiful and strong
2. Adopt advanced precision motor, maximum Rotation speed 8000 rpm
3. Control relies on buttons and highlighted LCD screen, easy to operate
4. Support direct homogenizing and pre-stored homogenizing Linear dispersion for programmable homogenizing
5. Compact size, complete performance functions, suitable for laboratory purchase
Principle
The spin Coater uses a high-speed swirl/spin motor to drive the substrate, using centrifugal force to uniformly coat the liquid or colloidal material on the substrate to form a film. The instrument can control the Rotation speed, Acceleration and time parameters to achieve a precise film coating process.
Applications
Photoresist spin coating, bio-foster base fabrication, sol-gel method of polymer film fabrication
Steps
1. Prepare the substrate and coating materials
2. Place the substrate in the spinning Coater cavity
3. Manually drop glue or use a precision syringe pump to drop glue
4. Set homogenizing parameters or select pre-stored homogenizing Linear dispersion
5. Start the homogenizing process
6. Wait for the homogenization to complete and remove the substrate.
Notice
• Only suitable for substrates with a diameter of ≤ 4 inches (100mm)
• Power supply voltage AC220V, 50Hz
• Pay attention to safety during operation and avoid contact with high-speed swirling/spinning parts
• Regularly clean the cavity to maintain equipment hygiene
• Vacuum pump requires AC220V 50/60Hz power supply
