Overview

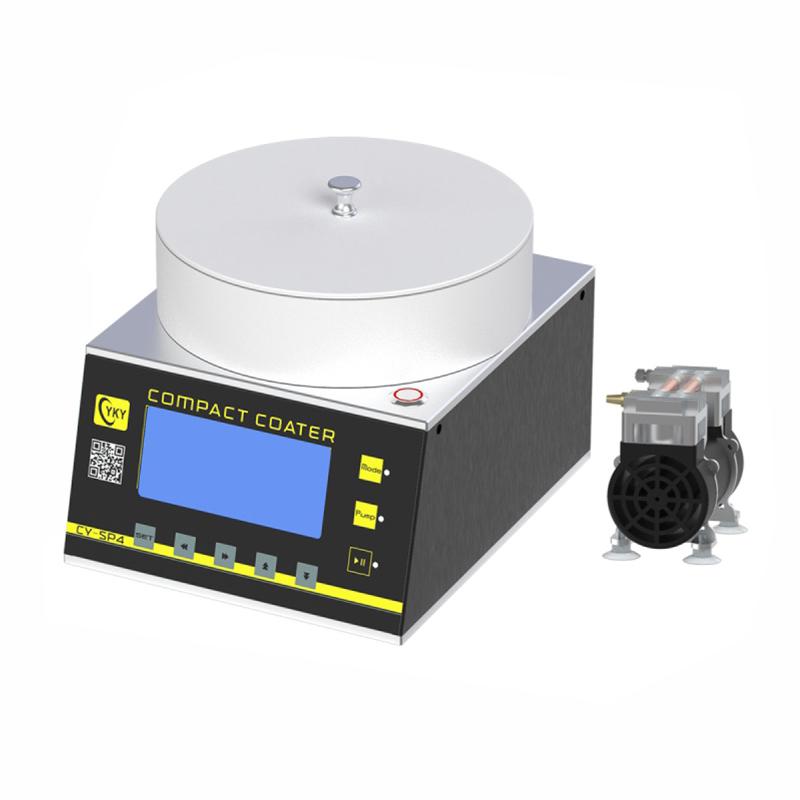

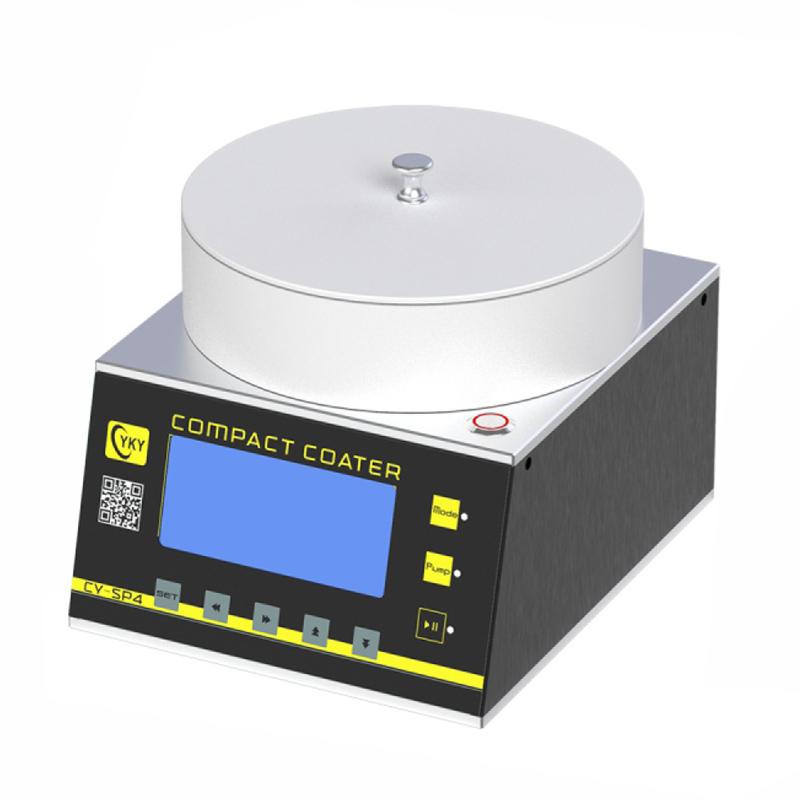

This model of spin Coater has been miniaturized design, the whole adopts aluminum alloy structure, polytetrafluoroethylene cavity, Appearance is beautiful and sturdy. The instrument adopts advanced precision motor, the maximum Rotation speed can reach 8000 rpm; the control relies on buttons and high-brightness LCD screen, in addition to direct homogenization, it can also pre-store Linear dispersion for program-controlled homogenization. This instrument effectively guarantees the performance and function of the instrument under the premise of greatly reducing the volume, which is very suitable for laboratory purchase.
Features
1. Miniaturized design, the overall use of aluminum alloy structure, PTFE cavity, Appearance beautiful and strong
2. Using advanced precision motor, the maximum Rotation speed can reach 8000 rpm
3. Control relies on buttons and highlight LCD screen, easy to operate
4. Support direct homogenizing and pre-stored homogenizing Linear dispersion for programmable homogenizing
5. Guarantee instrument performance and functionality while reducing volume
6. Suitable for laboratory purchase
Principle
Spin Coaters can coat liquid or colloidal materials on silicon wafers, crystals, quartz, ceramics and other substrates to form films.
Applications
Photoresist spin coating, bio-foster base fabrication, sol-gel method of polymer film fabrication
Steps
1. Prepare the substrate and coating materials
2. Manually drop glue or use a precision syringe pump
3. Rotation speed parameter or select Linear dispersion
4. Start the homogenizing process
5. Wait for the homogenization to complete.
Notice
• Only suitable for substrates with a diameter of ≤ 4 inches (100mm)
• Make sure the vacuum pump is connected normally before use
• Pay attention to safety during operation and avoid contact with high-speed swirling/spinning parts
• Regularly clean the PTFE cavity to maintain performance
• Follow the equipment operating specifications to avoid overloading
