Overview

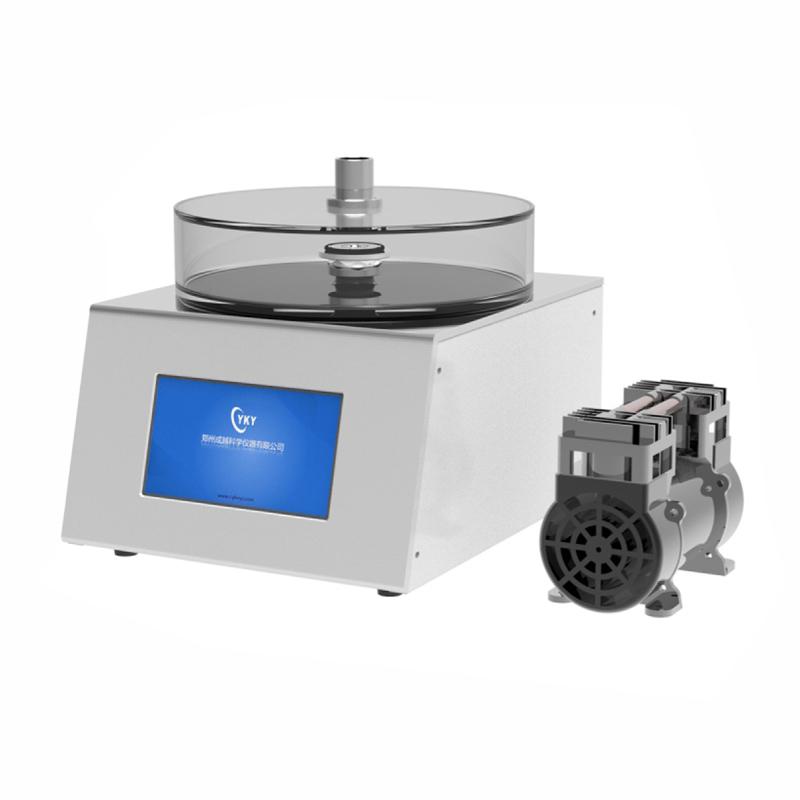

CY-SPC8-A spin Coater adopts miniaturized design, the whole is aluminum alloy structure with acrylic cavity, Appearance is beautiful and sturdy. The instrument is equipped with advanced precision motor, the maximum Rotation speed can reach 10000 rpm, to ensure the uniformity of film formation, and supports preset uniform glue through touch screen control Linear dispersion, simplifies the operation process, and is suitable for laboratory use.
Features
1. Miniaturized design, aluminum alloy structure combined with acrylic cavity, beautiful and sturdy
2. Precision motor drive, Rotation speed up to 10000 rpm, ensure uniform film formation
3.7 inch high definition LCD touch screen control, easy to operate
4. Linear dispersion can be preset, each Linear dispersion 5 segments, a total of 5 storage, simplify the use process
5. Support manual glue drop, optional precision injection pump
6. Equipped with dry mechanical vacuum pump, pumping rate 50L/min
7. Suitable for substrate diameter ≤ 8 inches (200mm), strong compatibility
Principle
The spin Coater drives the substrate at high speed swirl/spin through a precision motor, and uniformly coats the liquid or colloidal material on the surface of the substrate under the action of centrifugal force to form a film. The instrument can preset the Linear dispersion to control the Rotation speed and Acceleration to ensure the uniformity of film formation, and assist in fixing the substrate through a vacuum system.
Applications
Photoresist spin coating, bio-foster base fabrication, sol-gel method of polymer film fabrication
Steps
1. Prepare the substrate and coating materials
2. Place the substrate in the spinning Coater cavity
3. Preset or select Linear dispersion via touch screen
4. Manually drop glue or use a syringe pump to add materials
5. Start the device, the motor press the setting Linear dispersion swirl/spin
6. Remove the substrate after completing the homogenization
Notice
• Power supply voltage AC220V 50/60Hz
• Substrate diameter must not exceed 8 inches (200mm)
• Check the vacuum pump and air extraction interface connection before operation
Avoid use in humid or vibrating environments
• Regularly clean the cavity to keep the transparent acrylic clean
• Rotation speed and Acceleration Range
