Overview

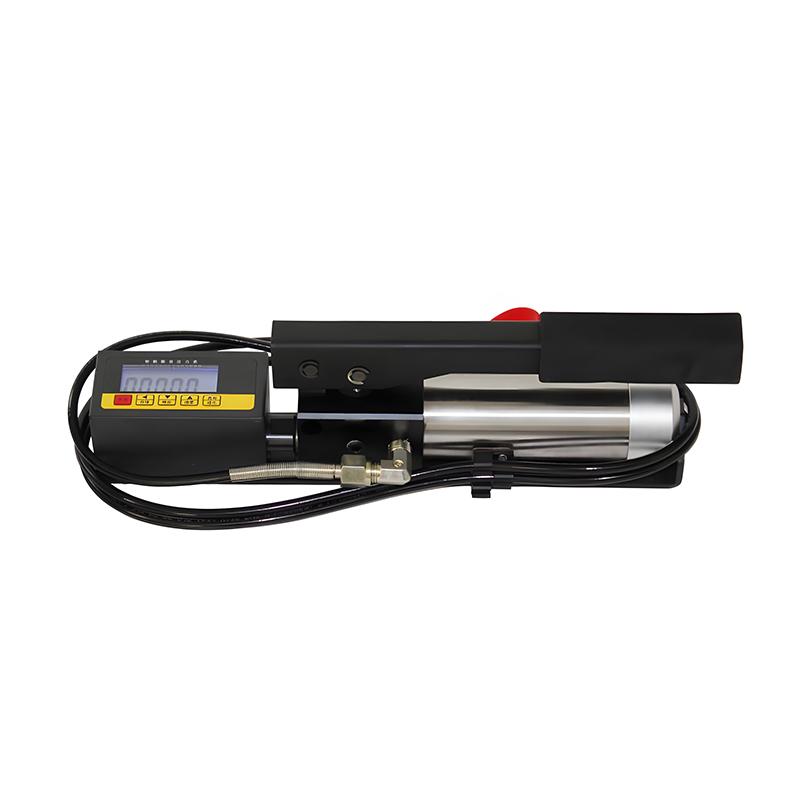

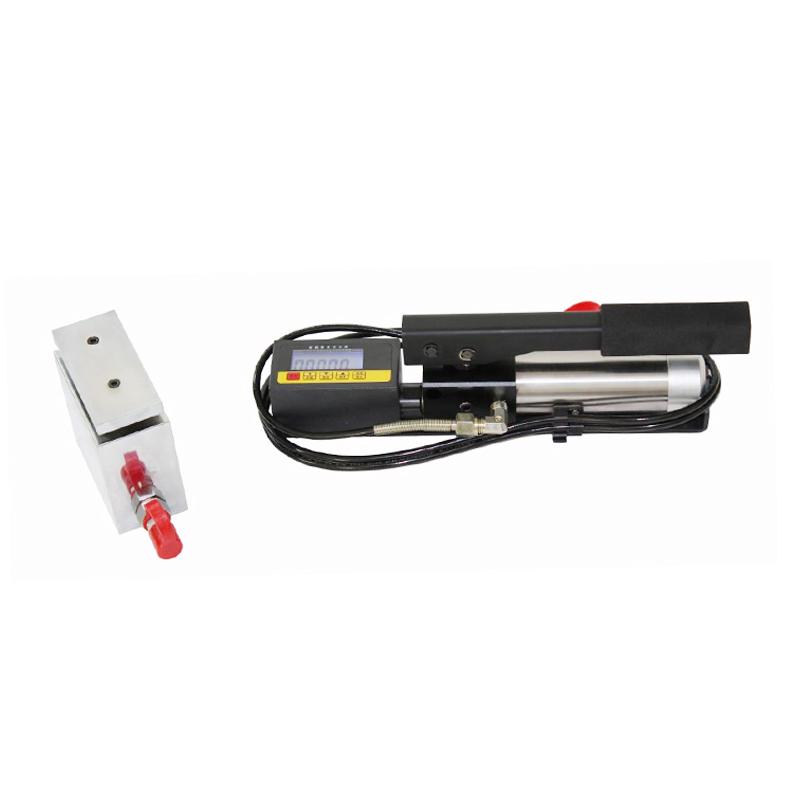

Smart in-situ double shearing instrument is a special instrument used to detect the shear strength of building masonry. The instrument is a small hydraulic device that uses the piston to rise to push the cover plate to generate force on the block to detect the shear strength of the masonry, so that the upper and lower surfaces of the block are shearing. The shear strength of the masonry is calculated by measuring the force when the block is shearing. The test results are intuitive and the detection part is partially damaged.
Features
1. Novel structure, small size, light mass and easy operation.
2. Adopting a manual pump loading cylinder, the operation is simple and convenient, and the interchangeability is strong.
3, intelligent digital display pressure gauge, can directly read the shear force.
4. Connectivity with computer, more intuitive view of detection data.
5. Equipped with Bluetooth printing, directly print the test results.
Principle
Press the manual pump to press the handle, the hydraulic oil is connected to the intelligent digital pressure gauge all the way through YouTube, and the other way enters the double shear meter to push the piston up, and the piston pushes the cover plate to apply thrust to the block. With the increase of the thrust on the block, the upper and lower sides of the block are shearing, and the oil pressure quickly decreases back to zero, and the piston returns to position under the action of spring force. The intelligent digital pressure gauge records the pressure value at this time, and the shear strength of the masonry can be calculated by calculating.
Steps
1. Press the manual pump to press the handle, and the hydraulic oil enters the system.
2. Observe the reading of the intelligent digital pressure gauge.
3. Record the pressure value when the block shears.
4. Calculate the shear strength of the masonry.
Notice
• Local damage will occur at the detection site
• Pay attention to the pressure change of the hydraulic system during operation
• Make sure the equipment has sufficient power supply before use
