Overview

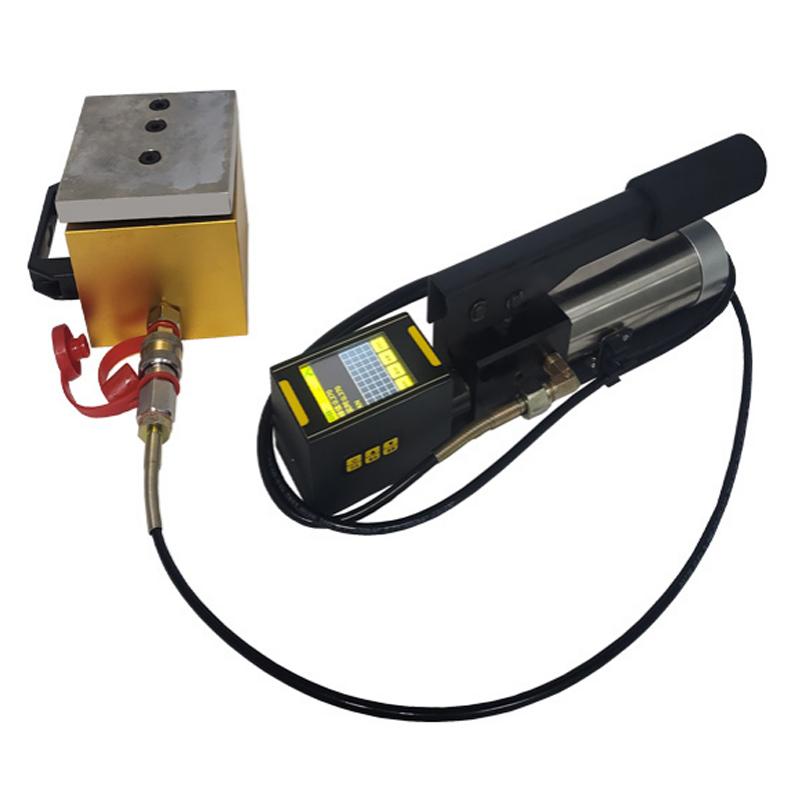

The smart in-situ single shear instrument is a KS-150S model product of the KOSON brand, which is a special instrument for detecting the shear strength of building masonry. The instrument is a small hydraulic device that detects the shear strength of the masonry by pushing the cover plate to generate force on the block by the piston rising, so that the upper and lower surfaces of the block are shearing. The shear strength of the masonry is calculated by measuring the force when the block is shearing. The test results are intuitive and the detection part is partially damaged.
Features
1. The instrument has novel structure, small size, light mass and convenient operation.
2. Adopting a manual pump loading cylinder, the operation is simple and convenient, and the interchangeability is strong.
3, intelligent digital display pressure gauge, can directly read the shear force.
4. Connectivity with computer, more intuitive view of detection data.
5. Equipped with Bluetooth printing, directly print the test results.
Principle
Press the manual pump to press the handle, the hydraulic oil is connected to the intelligent digital pressure gauge all the way through YouTube, and the other way enters the single shear meter to push the piston up, and the piston pushes the cover plate to apply thrust to the block. With the increase of the thrust on the block, the upper and lower sides of the block are shearing, and the oil pressure quickly decreases back to zero, and the piston returns to position under the action of spring force. The intelligent digital pressure gauge records the pressure value at this time, and the shear strength of the masonry can be calculated by calculating.
Steps
1. Press the manual pump to press the handle.
2. The hydraulic oil is connected to the intelligent digital pressure gauge all the way through YouTube, and the other way enters the single shear meter to push the piston up.
3. The piston pushes the cover plate to apply thrust to the block.
4. As the thrust increases, the upper and lower sides of the block shear.
5. The intelligent digital pressure gauge records the pressure value.
6. Calculate the shear strength of the masonry.
Notice
• The detection site is partially damaged.
• Pay attention to the smooth hydraulic oil circuit during operation.
• Make sure the equipment has sufficient power supply before use.
