Overview

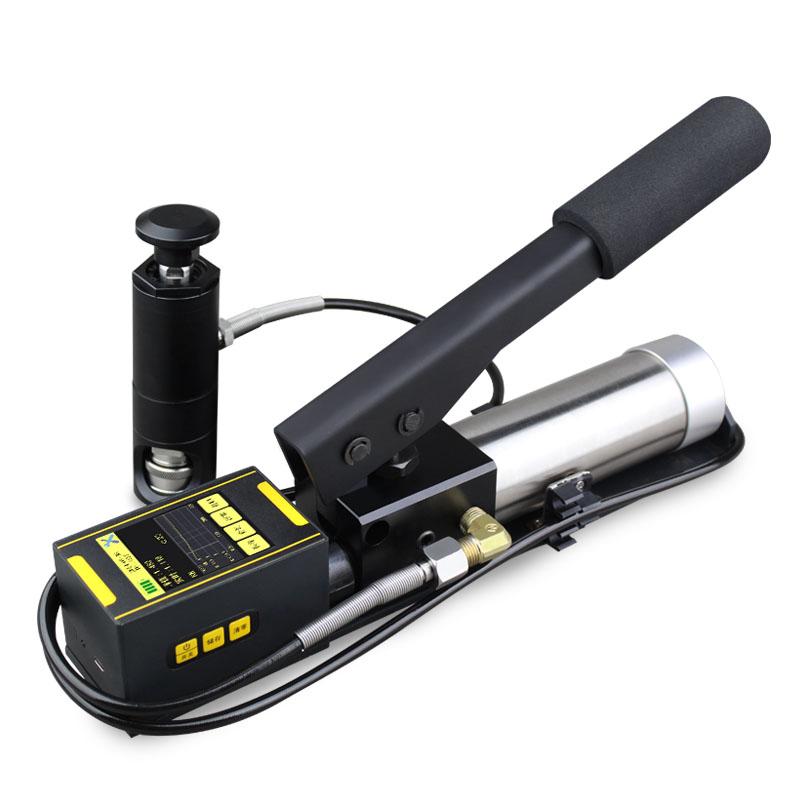

Smart Pull Adhesion Tester can measure the adhesion of metal, paints, spraying, Water proofer, Adhesive, chrome, nickel, concrete and Miscellaneous coatings. The instrument uses a hydraulic system to remove a certain diameter coating on the surface of the tested substrate to measure coating adhesion. The multi-function digital display shows the results in MPa, KN and PSI units, which is intuitive and reliable, reducing human observation errors. The product is designed and manufactured according to international and national relevant standards, with advanced technology and stable performance.
Features
1. Portable design, built-in rechargeable lithium battery, no external power supply, suitable for construction, production site and laboratory use;
2. U-disk storage technology, equipped with Type-c interface, connects to a computer to directly copy data without additional driver software;
3. Built-in real-time clock, saving data corresponding to the experimental date and time, convenient for summary management;
4. Available in different pull-off kit sizes: 10, 14, 20 and 50mm;
5. Pressure and display system by standard Force Gauge calibrated, accuracy +/- 1% (full scale);
6. Self-positioning kit, smooth and rough surfaces have no effect on measurement results;
7. High quality hydraulic pump, quality assurance 1 year;
8. High-grade industrial pressure sensors ensure High Accuracy;
9. The pull-off unit uses affordable and high-quality aluminum kits that meet international standards;
10. Portable instrument box with alloy and stainless steel main body, rainproof, dustproof and impact-proof;
11. LCD display, optional MPa, KN or PSI units;
12. With drawing force Linear dispersion display function, clear observation of drawing force changes;
13. The Bluetooth printer can print directly on site (optional);
14. Full Touchscreen design, one-click switch between Chinese and English, easy to operate.
Principle
The tester uses a hydraulic system to detach coatings of a certain diameter from the surface of the tested substrate, and evaluates the adhesion of the coatings by measuring the force required during the detachment process. The multi-function digital display displays the adhesion size in real time, and presents the results visually in MPa, KN and PSI units.
Applications
Metal, paints, spray, Water proofer, Adhesive, Chrome, Nickel, concrete and Miscellaneous coatings
Standards
ISO 4624、ASTM D4541、ASTM D7234、GB/T5210-2006、TB-T2965-2011、ISO4624/16276-1
Steps
1. Prepare the coating under test and the pull-off kit of the corresponding size;
2. Turn on the instrument power and select the appropriate unit (MPa, KN, or PSI).
3. Position the kit on the coating surface to ensure that the self-positioning function adapts to smooth or rough surfaces;
4. Manually pressurize and disengage the coating through the hydraulic system;
5. Observe the display and record the adhesion value and Linear dispersion.
6. Save the data, you can connect to the computer through the Type-c interface to copy or print with a Bluetooth printer (optional);
7. After the experiment is completed, turn off the instrument's power supply.
Notice
Make sure the instrument is fully charged before use, and the built-in lithium battery has been charged.
- When selecting the kit size, it needs to be matched according to the adhesive strength of the coating;
The pressurization process requires manual operation to avoid excessive force.
- Pay attention to date and time records when saving data for subsequent management.
- When used in humid or dusty environments, pay attention to the rainproof and dustproof characteristics of the instrument;
- Regularly calibrate the instrument to ensure accuracy within +/- 1%;
- Bluetooth printer is an optional function, please confirm the configuration if you need to print;
- Follow relevant safety regulations during operation to prevent accidental damage.
