Overview

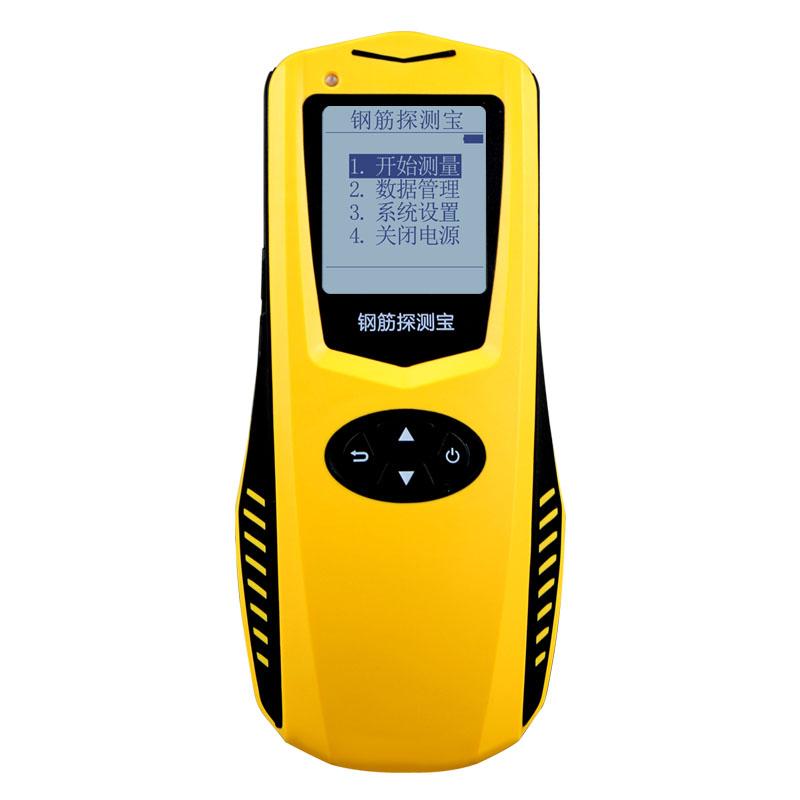

Rebar Detection Treasure KS-70 is a portable Handheld product that integrates steel bar positioning, protective layer thickness, diameter measurement, Data storage, output and analysis. It adopts professional high-strength magnetic Induction detector, combined with the actual characteristics of the project, the data is accurate and reliable, durable, easy to operate, and can be carried around. Mainly used to detect the position of steel bars inside concrete structures, the thickness of protective layers, estimate the diameter of steel bars, the spacing between steel bars, test detection pipelines and metal embedded parts, and provide High Accuracy and High Speed detection data.
Features
1. High resolution LCD screen is 128 × 128 pixels
2. Handheld ergonomic design, simple operation
3. Steel bars are precisely positioned, delicate and durable
4. Drilling avoids steel bars, pipelines and embedded parts to prolong the life of the drill bit
5. Multi-coil structure design, fast speed, high accuracy and strong resolution
6. Built-in large-capacity lithium battery, low design power consumption, normal standby work not less than 20h
Principle
The product adopts multi-coil structure design, combined with high-strength magnetic Induction detector, through electromagnetic induction method to detect the thickness of steel protective layer and steel diameter, to achieve fast and accurate steel positioning and measurement.
Applications
Building concrete components (such as beams, slabs and columns) accurately locate steel bars, protective layer thickness, measurement of steel bar diameter, steel bar spacing; steel bar engineering acceptance, drilling steel bar positioning, furniture wall installation, Wire and cable detection; drilling core to avoid steel bars, reinforcement Perforating to avoid steel bars, steel hidden engineering acceptance, air conditioning installation, pole steel bar detection, Wire and cable detection, metal pipe detection and embedded parts
Standards
"Reinforcement detection technology in concrete" JGJ/T152-2019, "concrete structure engineering construction mass acceptance code" GB 50204-2015, "building structure detection technology standard" GB/T50344-2004, "concrete structure design code" (2015 edition) GB50010-2010, "electromagnetic induction method to detect the thickness of steel protective layer and steel diameter technical specification" DB11/T365-2016, "concrete structure site detection technology standard" GBT/50784-2013, "steel protective layer thickness measurement instrument, floor thickness measurement instrument Measurement calibrated specification" JJF1224-2009
Steps
The data does not mention the specific operation steps, please refer to the product manual.
Notice
The information does not mention specific precautions, please refer to the product manual.
