Overview

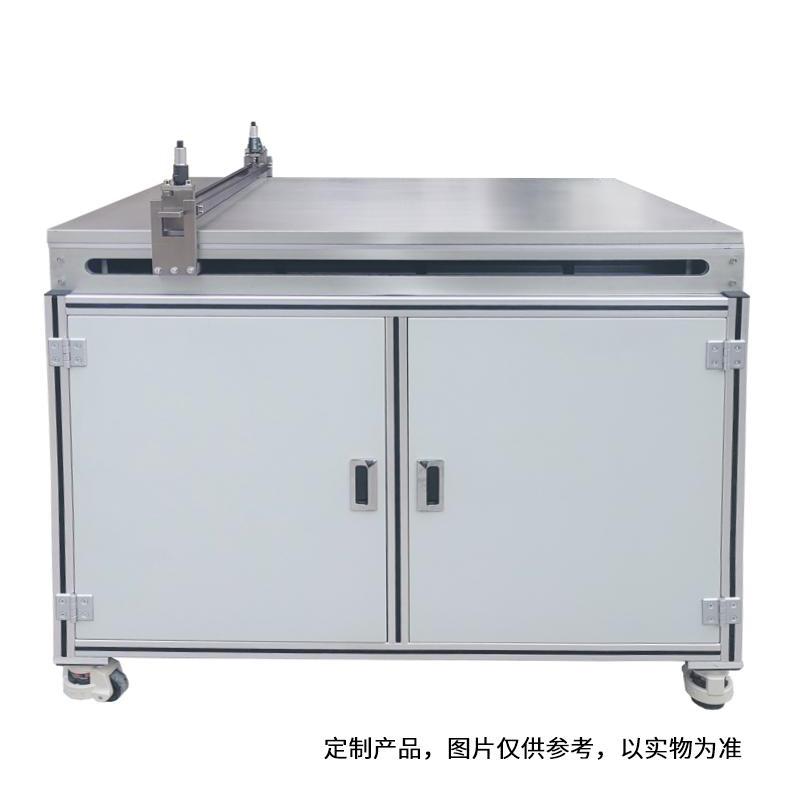

TBJ-A1-DJ9 Floor-Standing wire-rod film applicator adopts bar coating method, Coating size is 600 * 800mm, Floor-Standing structure design, suitable for Coating inks, film, Gloss oil, New material and other film applications.
Features
1. Wide coating speed range, support 5~ 200mm/s stepless speed change, speed accuracy up to 1mm/s
2. Large effective coating area, up to 800 * 600mm
3. meyer rod coating thickness range, 1~ 571.5μm, accuracy +/- 0.005mm
4. The coating table is made of aluminum alloy, with strong durability
5. Support a variety of customization functions, such as automatic lame plating, UV curing, automatic inking system, etc
Principle
The device uses the bar coating method to film at an adjustable rate on the Spreader stage, and the bar model determines the thickness of the Spreader to achieve accurate coating control.
Applications
Coating inks, Films, Gloss oils, New materials
Steps
1. Spreader materials and bars
2. Set coating speed and parameters
3. Start the equipment for film operation
4. Optional automatic lame plating or drying function as required
Notice
• Make sure the power supply is 220V 50Hz before use
• Spreader thickness should be determined according to the bar model
• Customized functions need to be confirmed in advance
• Pay attention to safety during operation and avoid contact with moving parts
