Overview

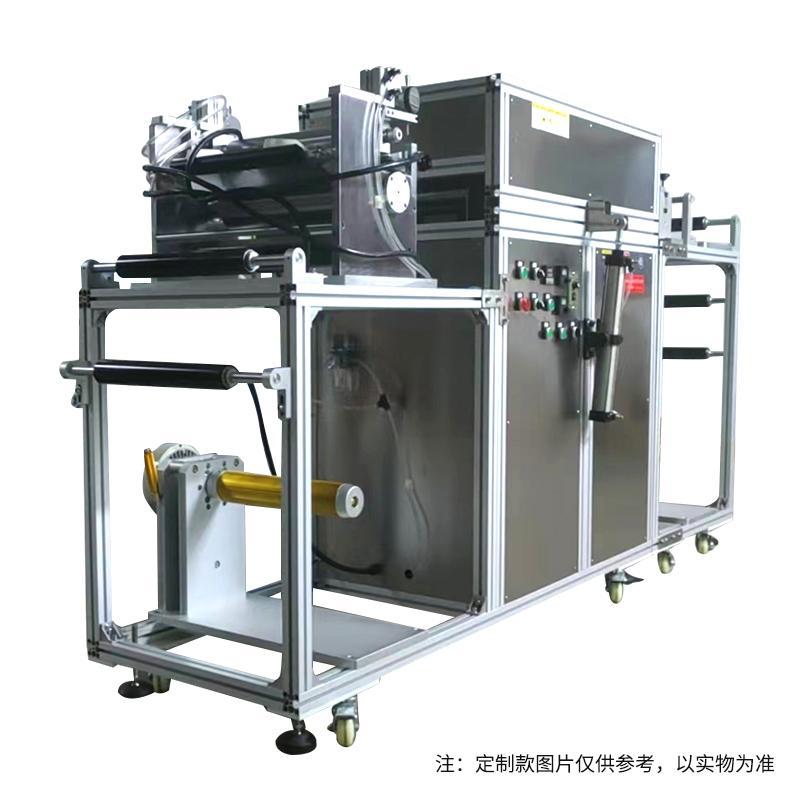

Oven coil automatic composite Coater (model: Rgdwg-01/500 pro) is a small Spreader composite machine, suitable for water-based adhesive Spreader paper, film, aluminum foil, plastic, non-woven fabrics and other non-elastic materials. The equipment integrates the functions of unwinding, scraping, drying, overlaying, and rewinding to realize the automatic composite Spreader process.
Features
1. Adopt drawdown blade + roller coating double coating method, which can be freely switched;
2. Spreader thickness range is wide, 0.005-3mm;
3. Adjustable bonding speed, range 1~ 10m/min, high servo control accuracy;
4. Equipped with a deviation correction device to automatically adjust material alignment.
5. Drying tunnel temperature adjustable, range RT +~ 200 ℃, to ensure fast drying;
6. Dual Spreader Head Device for Improved Operational Flexibility;
7. The body adopts aluminum alloy + high electrostatic spray plate, and the structure is sturdy and durable.
Principle
The equipment provides the base material through the discharge rack, and scrapes or roller coatings are carried out by the coating roller group. The thickness of the Spreader is adjusted by the dial meter. After the Spreader, the base material is smoothly transferred to the drying tunnel through the transmission platform, and then pulled to the cladding process through the traction roller group to realize the automatic alignment and compounding of the material, and finally the winding completes the Spreader process.
Applications
Paper, film, aluminum foil, plastic, non-woven fabric
Steps
1. Place the substrate on the discharge rack.
2. Adjust the glue width and thickness to the required parameters.
3. Start the equipment, and the substrate is coated with a rubber roller group Spreader;
4. The substrate is dried through a drying tunnel;
5. The traction roller group pulls the substrate to the laminating process.
6. Automatic deviation correction device ensures material alignment.
7. Winding completes the Spreader compounding process.
Notice
- Applicable only to non-elastic materials.
- Spreader thickness adjustment should be operated according to the indicator;
The bonding speed should be controlled within the range of 1 to 10 m/min.
- The drying tunnel temperature shall not exceed 200 ° C.
- Power supply voltage is 220V;
- Pay attention to material alignment during operation to avoid deviation.
