Overview

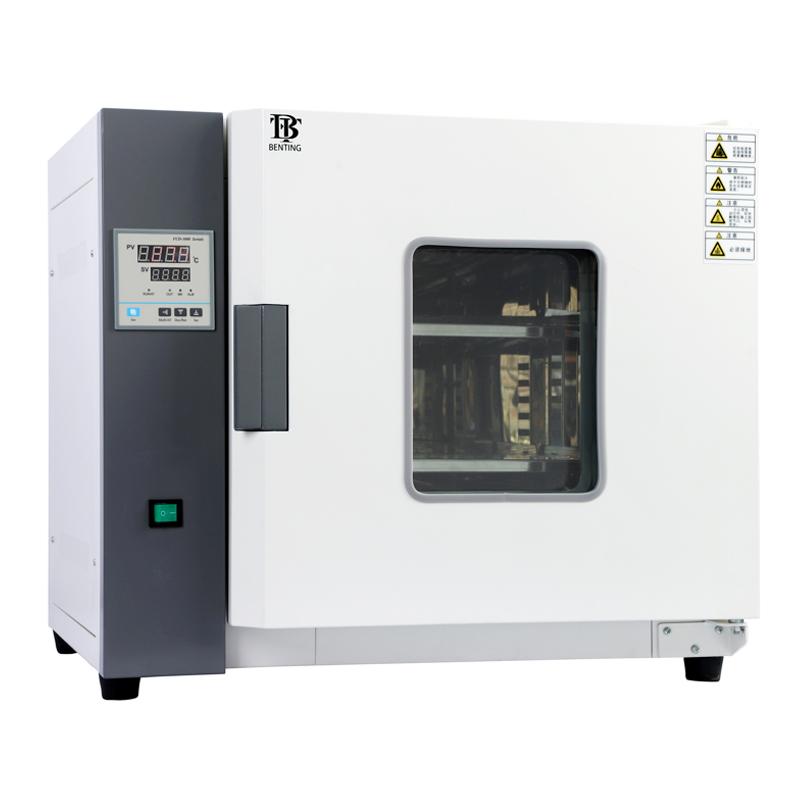

CBGL-160B horizontal blast drying oven is a kind of equipment used for drying articles. It accelerates the drying process through heating and circulating air. It is suitable for drying experimental samples, chemicals and other items that need precise control of temperature and Humidity. The horizontal design provides uniform drying effect and is suitable for long-term drying. It is widely used in industrial and mining laboratories and R & D institutions for drying, baking, melting wax, sterilizing and curing.
Features
1. The shell is made of high-quality Cold rolled steel plate, the surface is treated by lame plating process, the studio is made of stainless steel or Cold rolled steel plate, and treated by anti-corrosion process.
2. Dial or intelligent thermostat can be selected. The intelligent thermostat adopts PID control program, digital display, and timing function.
3. The middle of the box door is equipped with a double-decked tempered Glass observation window, which can observe the situation of the heating items in the working room at any time.
4. The box door is sealed with silicone rubber strip, and the sealing effect is good.
5. Blow type is equipped with low noise fan, single air duct design, to ensure good Temperature Uniformity in the studio.
Principle
Accelerate the drying process of the goods by heating and circulating air, and use the blast system to achieve uniform temperature distribution to ensure efficient drying of the goods at the set temperature.
Applications
Industrial and mining enterprise laboratories, R & D institutions
Steps
1. Connect the power supply and ensure that the voltage is 220V/50Hz.
2. Open the box door and place the items on the shelf, the shelf load does not exceed 15kg/piece.
3. Close the box door and ensure that the silicone rubber strip is well sealed.
4. Set the temperature controller parameters, including temperature and timing functions.
5. Start the equipment and monitor the drying process through the observation window.
6. After drying, turn off the power and take out the items.
Notice
• Power supply voltage check before use 220V/50HZ requirements.
• When placing items, ensure that the shelf load does not exceed 15kg/block.
• Avoid opening the door frequently during operation to maintain a stable temperature.
• Make sure the equipment is powered off during cleaning and maintenance.
• Regularly check the sealing strip and fan to ensure normal operation.
