Overview

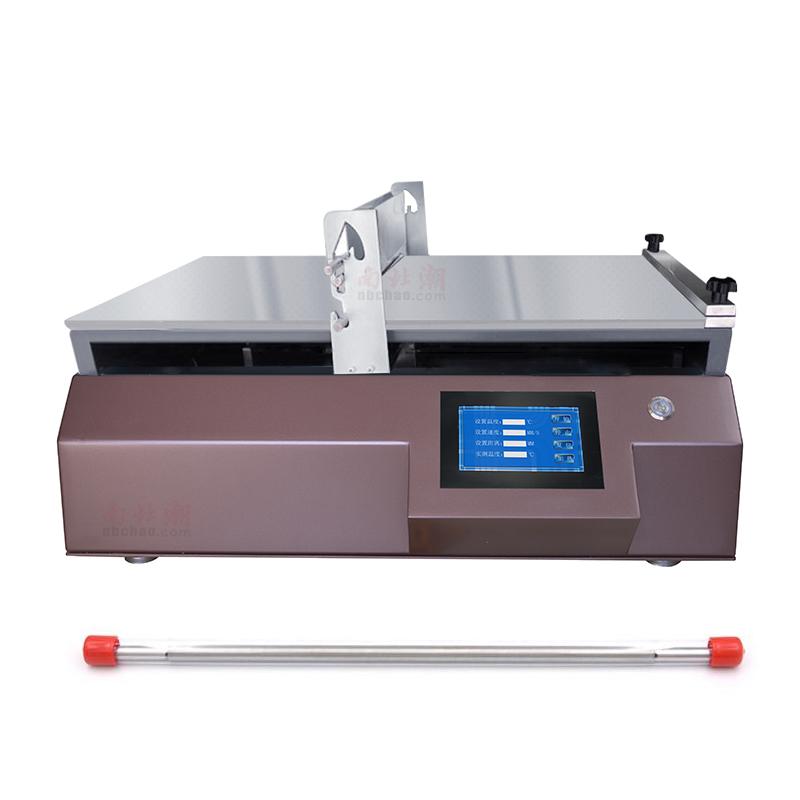

TBJ-X4-ZB1 Automatic Film Applicator adopts imported accessories, which are cheap and favored by multinational R & D institutions, universities and scientific research institutions at home and abroad. The uniformity and smoothness of Spreader's glue application are guaranteed by controlling the speed and stable pressure. The equipment is designed to solve the problem of artificial film inconsistency, improve film reproducibility, and facilitate the operator to Spreader accurate wet-film on different substrates.
Features
1. Imported accessories, cost-effective; 2. Wide coating speed range (5~ 180mm/s, < 5mm/s can be customized); 3. Effective coating area 400 * 300mm; 4. Vacuum chuck function, size 400 * 300mm (can be customized); 5. Meyer rod coating thickness range 1~ 571.5μm, accuracy +/- 0.001mm; 6. Infinitely variable speed control; 7. Heating Temperature range RT +~ 200 ℃, uniformity +/- 3 ℃; 8. Accessories are rich, such as leakage tank, substrate fixing fixture, etc.; 9. Customizable features include an air jet system, a UV inclusion device, and an automatic inking system.
Principle
Automatic Film Applicator ensures the uniformity and smoothness of the Spreader coating by controlling the speed of the Spreader and the stable pressure applied to the film applicator. Vacuum chuck is used to fix the substrate, combined with the bar coating method, to achieve accurate wet-film Spreader, reduce the difference caused by human factors, and improve film reproducibility.
Applications
Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions
Steps
1. Prepare the substrate and place it on the Spreader stage; 2. Select the bar type and set the thickness of the Spreader as needed; 3. Adjust the speed and pressure parameters of the Spreader; 4. Start the Vacuum chuck to fix the substrate; 5. Start the automatic Spreader process; 6. Remove the sample for subsequent processing after completion.
Notice
• Ensure that the power supply is 220V 50Hz; • Check the bar model before Spreader to match the thickness of Spreader; • Smoothness of the substrate when Vacuum chucking; • Avoid burns during heating operation; • Regularly clean the coating table and Accessories to maintain accuracy; • Customized functions need to be confirmed in advance.
