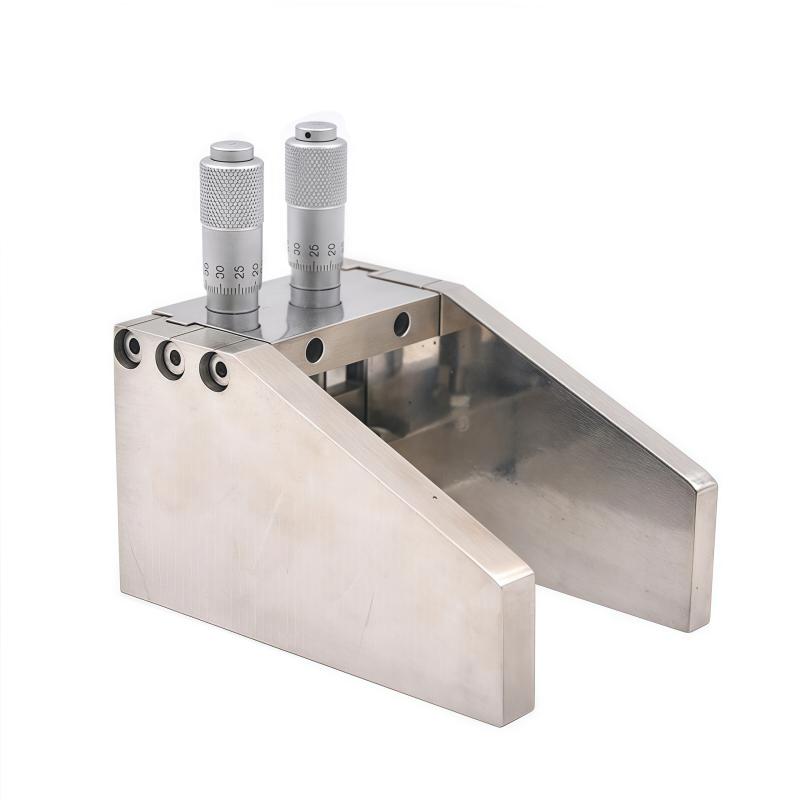

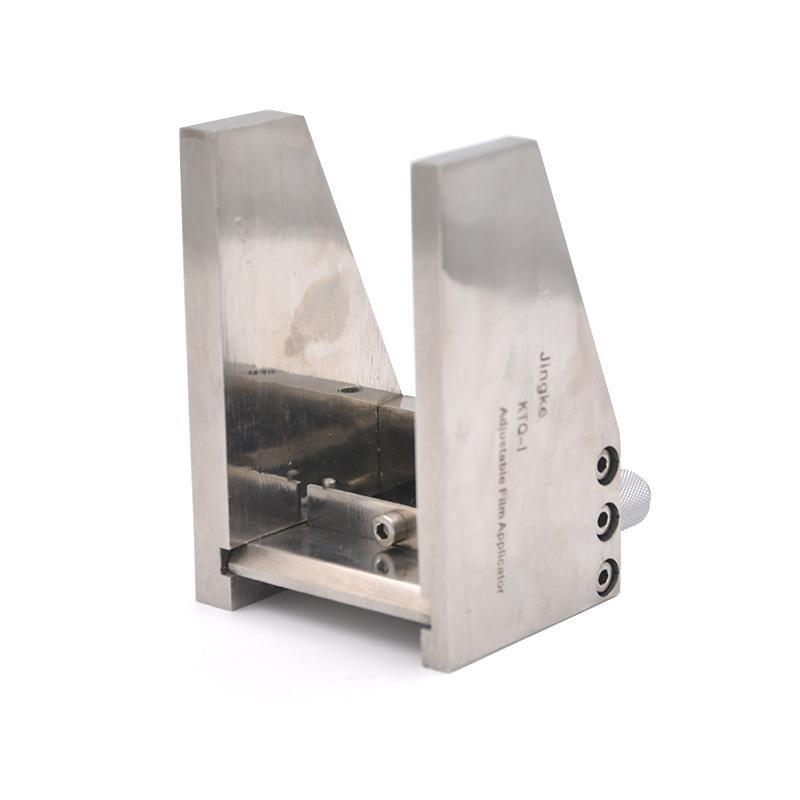

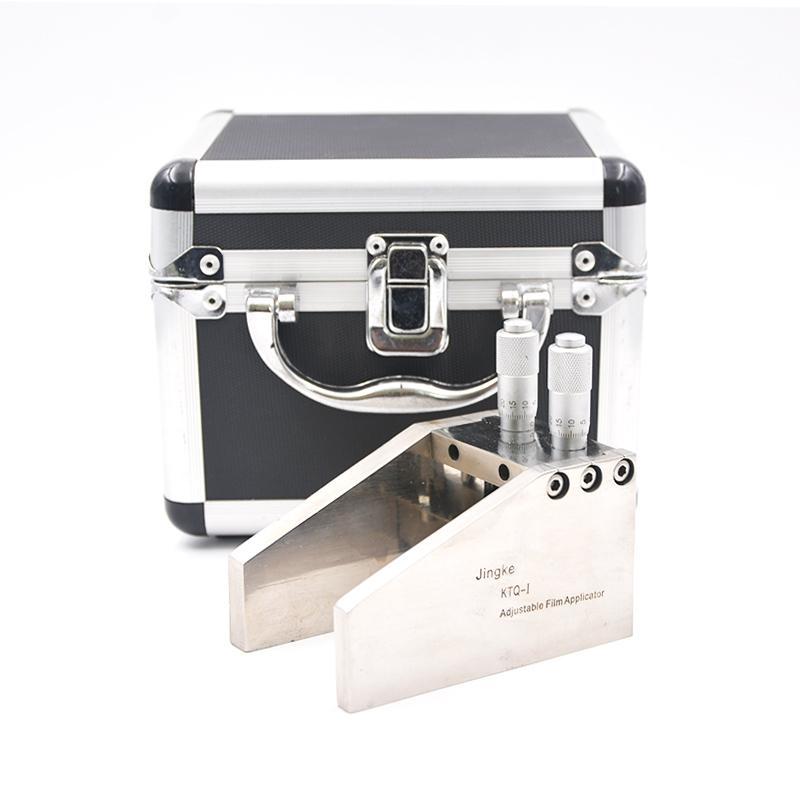

JINGKELIAN KTQ-II 100 Adjustable coating Applicator Magnetic suction model 0-3500μm film thickness +/- 2μm accuracy

Name: JINGKELIAN KTQ-II 100 Adjustable coating Applicator Magnetic suction model 0-3500μm film thickness +/- 2μm accuracy
Brand: JingKeLian
SKU: NB046339
Price: 256.0 USD
Availability: InStock

$ 256.00Ex works

Film thickness range of 0~ 3500 μ m, accuracy +/- 2 μ m, by differentiator adjustment drawdown blade gap control Coating thickness, every 10 microns to adjust the unit.

Model

KTQ-II 100

Get Quote

Category : Film Applicator

Brand : JingKeLian

SKU : NB046339

Service :The delivery and service By NBCLab.Com

Overview

JINGKELIAN KTQ-II 100 adjustable coating applicator (magnetic suction model) is a precision Spreader device with an application width of 100mm and belongs to the KTQ series adjustable coating applicator. The film accuracy of this product is +/- 2 μm, which can be freely adjusted in the film thickness range of 0~ 3500 μm, and the drawdown blade gap can be adjusted every 10 μm.

Features

1. Up to +/- 2μm film accuracy 2. The film thickness range is 0~ 3500μm, which can be adjusted freely 3. Precise adjustment of drawdown blade clearance per 10 microns 4. Adopt magnetic suction design 5. Made of stainless steel 6.The application width 100mm

Principle

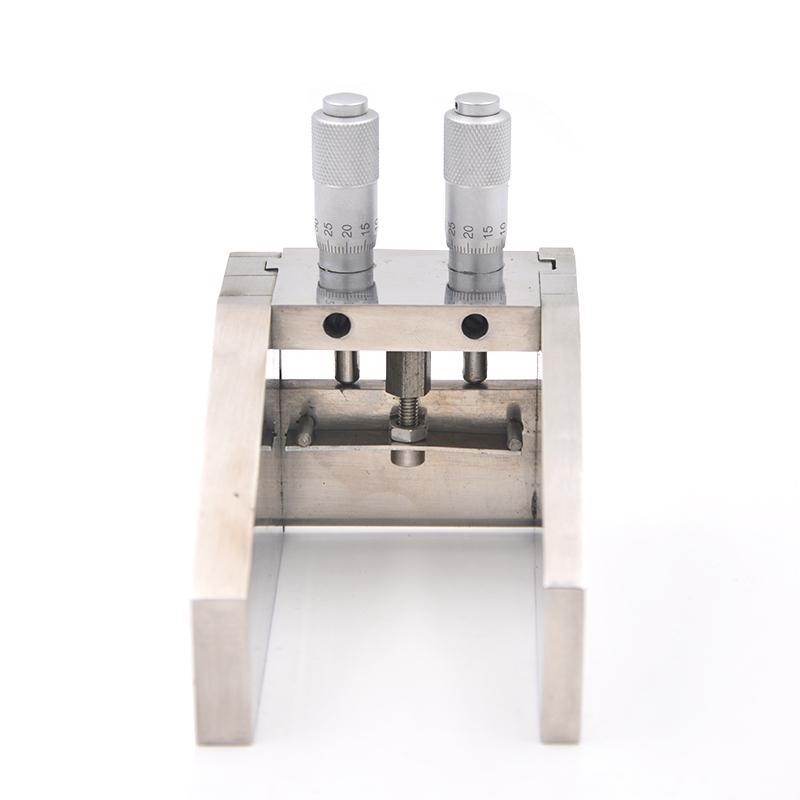

Adjustable coating applicator by adjusting the film applicator above the two differentiators, can be adjusted in the direction below the drawdown blade to control the gap, i.e. the thickness of the final coating.

Specifications

Type: adjustable magnetic suction model, wet film thickness: 0~ 3500μm, application width: 100mm, accuracy ： +/- 2μm, material: stainless steel, Dimension: 120 * 115 * 105mm, Net weight: 450g

Type
Adjustable magnetic model
wet film thickness
0~3500μm
application width
100mm
accuracy
±2μm
material
stainless steel
Size
120*115*105mm
Net weight
450g
