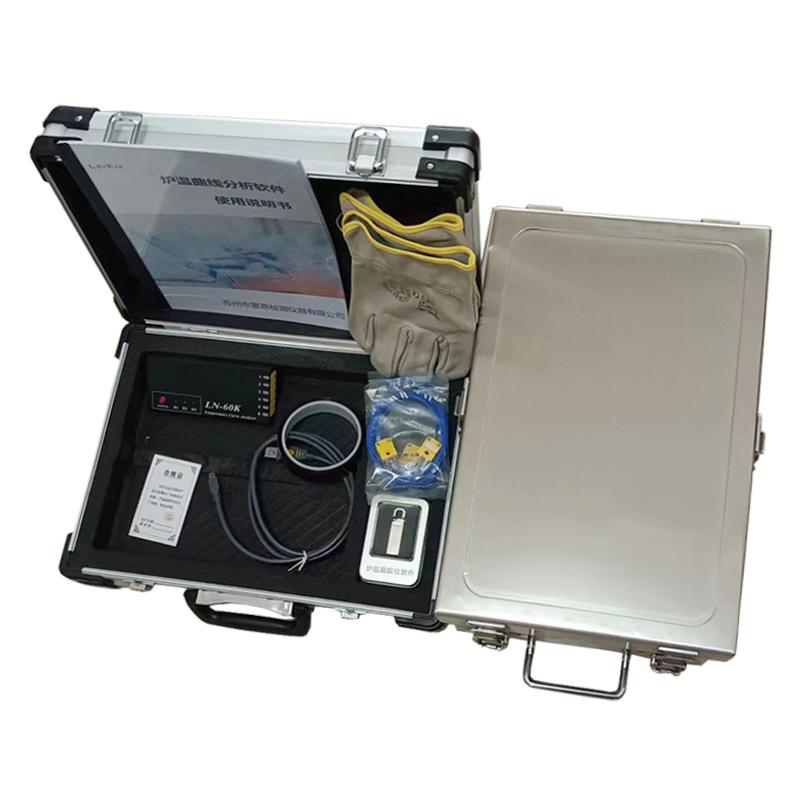

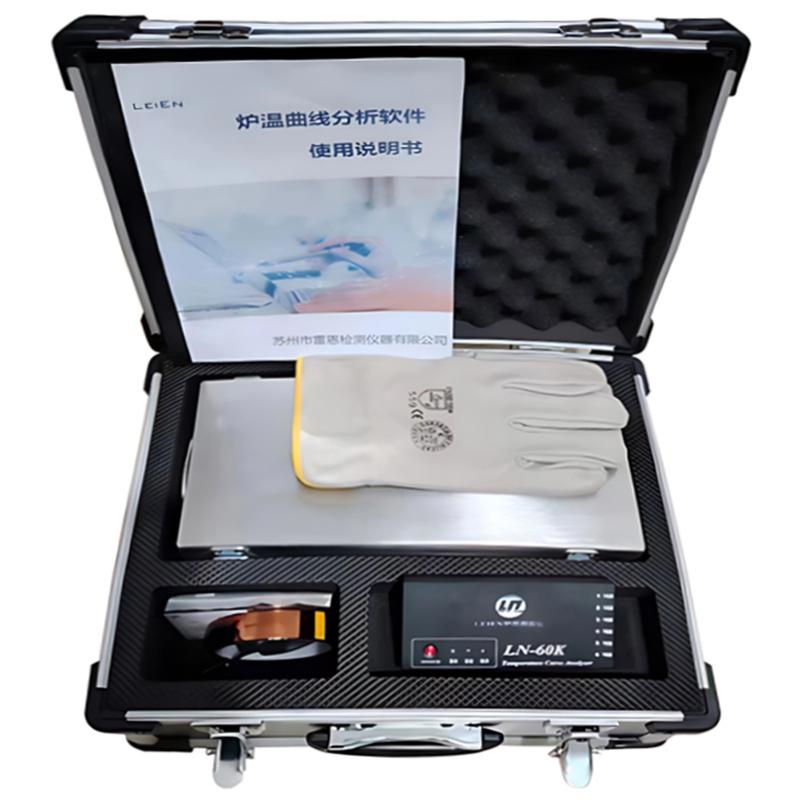

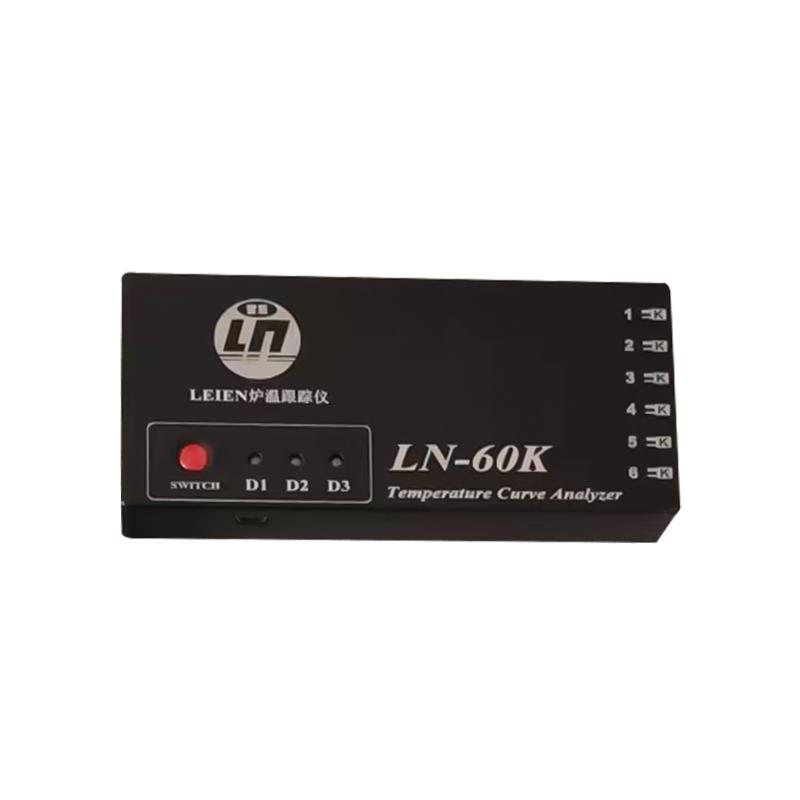

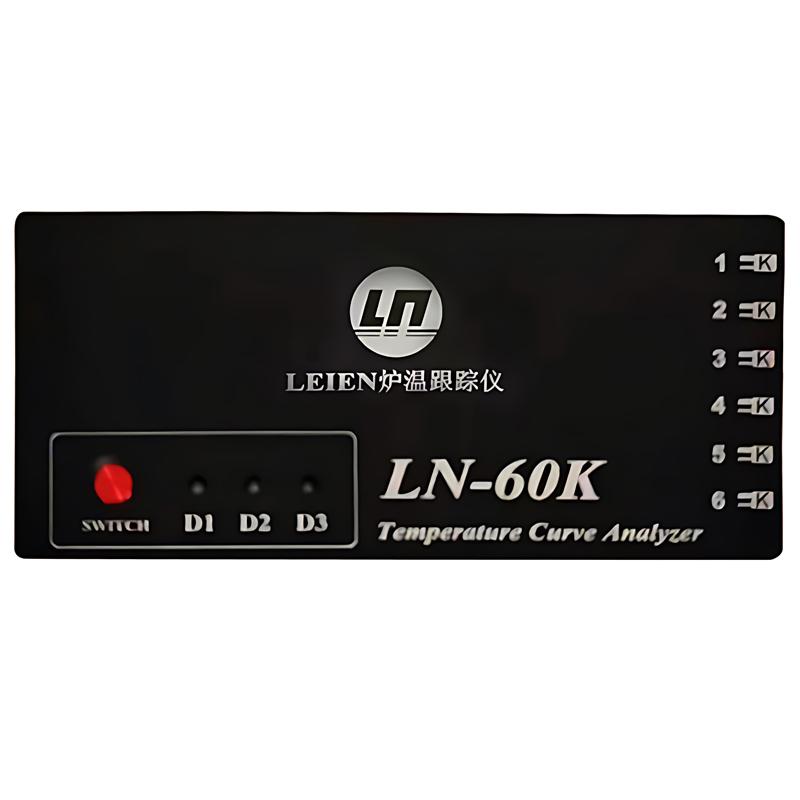

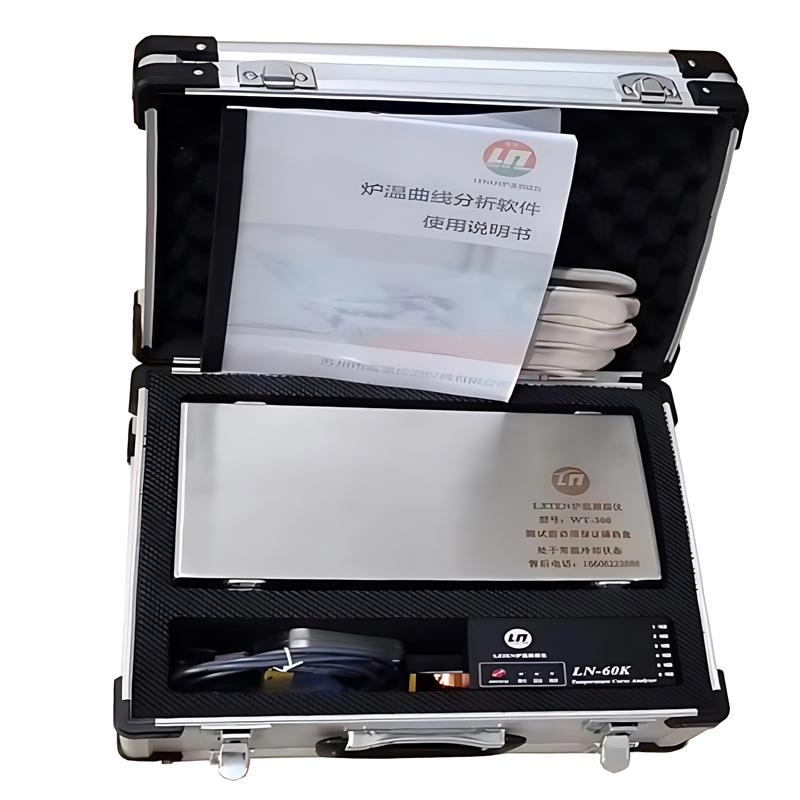

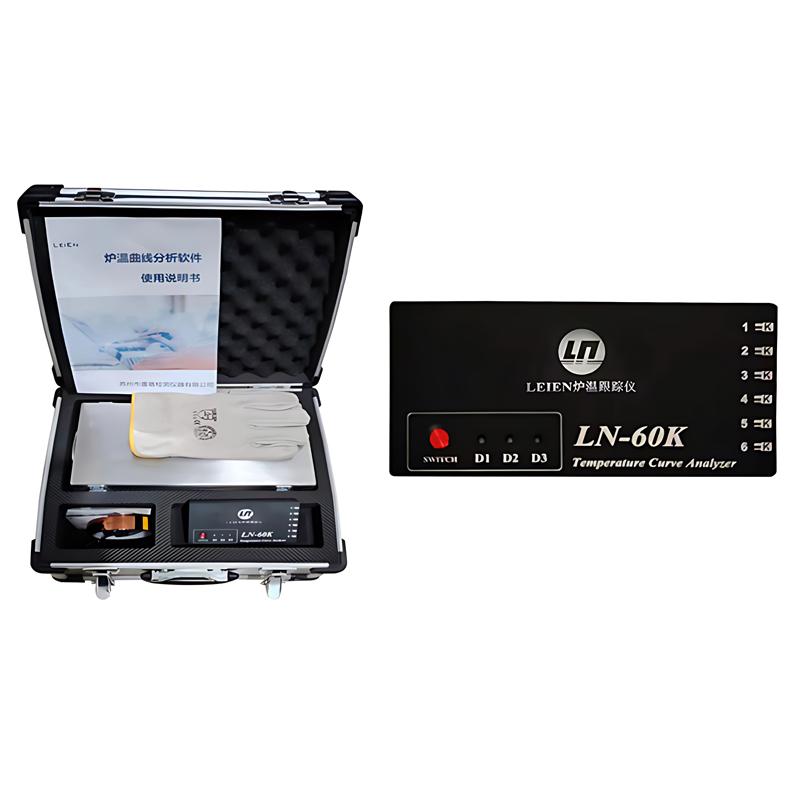

LeiEn LN-60K Furnace Temperature Profiler 6 channels Linear dispersion recorder

Name: LeiEn LN-60K Furnace Temperature Profiler 6 channels Linear dispersion recorder
Brand: LeiEn
SKU: NB046348
Price: 3330.0 USD
Availability: InStock

$ 3330.00Ex works

6 channel temperature recording, 700 ℃ environment can work for 90 minutes, using nano aerospace environmental protection insulation material, support 1-30 seconds adjustable Sampling rate, real-time tracking Furnace temperature Linear dispersion, to ensure the stability of the brazing mass.

Model

Get Quote

Category : Temperature Profiler

Brand : LeiEn

SKU : NB046348

Service :The delivery and service By NBCLab.Com

Overview

LN-60K Furnace temperature tracker for aluminum brazing has excellent thermal insulation performance, can operate safely and stably in high temperature environment, and carry out multi-directional temperature Linear dispersion tracking and mapping. The instrument can track and record the temperature status of the heating furnace and products throughout the process, obtain accurate data and form a temperature Linear dispersion analysis report. Data analysis and calculation through LeiEn analysis software can accurately optimize the parameters of the heating furnace to achieve the goal of improving product quality, achieving stable and high yield and saving energy.

Features

1. Superior thermal insulation performance, support stable operation in high temperature environment; 2. Multi-channel temperature tracking records, providing all-round data; 3. Customizable insulation box size and recording time; 4. High Accuracy measurement, accuracy up to +/- 0.3 ℃; 5. Flexible sampling rate, user choice; 6. Compatible with ordinary computers, support Linear dispersion printing and report analysis; 7. High temperature resistant stainless steel and nano aerospace environmental protection materials.

Principle

The instrument and the product pass through the heating furnace together, track and record the temperature status of the heating furnace and the product throughout the process, obtain multi-directional accurate data and form a temperature Linear dispersion analysis report. LeiEn furnace temperature tester analysis software analyzes and calculates the data, and accurately optimizes the heating furnace parameters through the results.

Applications

Aluminum brazing furnace temperature test tracking, water tank brazing, radiator brazing, evaporator condenser brazing temperature test monitoring tracking

Standards

Not mentioned

Steps

Not mentioned

Notice

Not mentioned

Number of channels
6 channel
Insulation box performance
700 ° C for 90 minutes, 600 ° C for 100 minutes, 500 ° C for 120 minutes
Insulation box Range
700 ° C; 1-30 hours (customized according to the actual situation of the user)
Memory
1 second record can be recorded for 4.5 hours, 2 seconds record can be recorded for 9 hours, and so on
sampling rate
1S, 2s, 3s, 4s, 5s, 6s, 10s, 20s, 30s, etc., can be selected by the user
Computer requirements
Linear dispersion and various analytical reports can be printed by computer without special requirements
Heat box Size
375 * 238 * 175mm is customized according to the actual situation of the user
Heat insulation box material
Shell and steel column structure: high temperature resistant 310S stainless steel; thermal insulation material: nano aerospace environmental protection material
instrument Size
Height 20mm (Miscellaneous data, confirmed according to the actual situation of the user)
Sensor
Thermocouple K
Temperature measurement Range
-200-1370℃
accuracy
±0.3℃
