Overview
The HC-4 Furnace temperature tracker is a Furnace temperature tracker specially designed for dacromet coating paintings, designed to effectively test the stoving temperature of dacromet products. Its excellent thermal insulation performance enables temperature mapping in harsh thermal environments, ensuring the Reliability of the test system. It can track and monitor the Heat Treatment Furnace and product temperature throughout the process without tedious tests, and obtain valuable data. Linear dispersion analysis reports help engineers understand the true temperature status and optimize operations to improve production line speed and product mass.
Features
1. High Accuracy, High Stability, Equipped with Powerful Software Analysis System.
2. Data can be saved for the collected temperature value, and the functional temperature can be synchronized with parameters such as length, time, and product function.

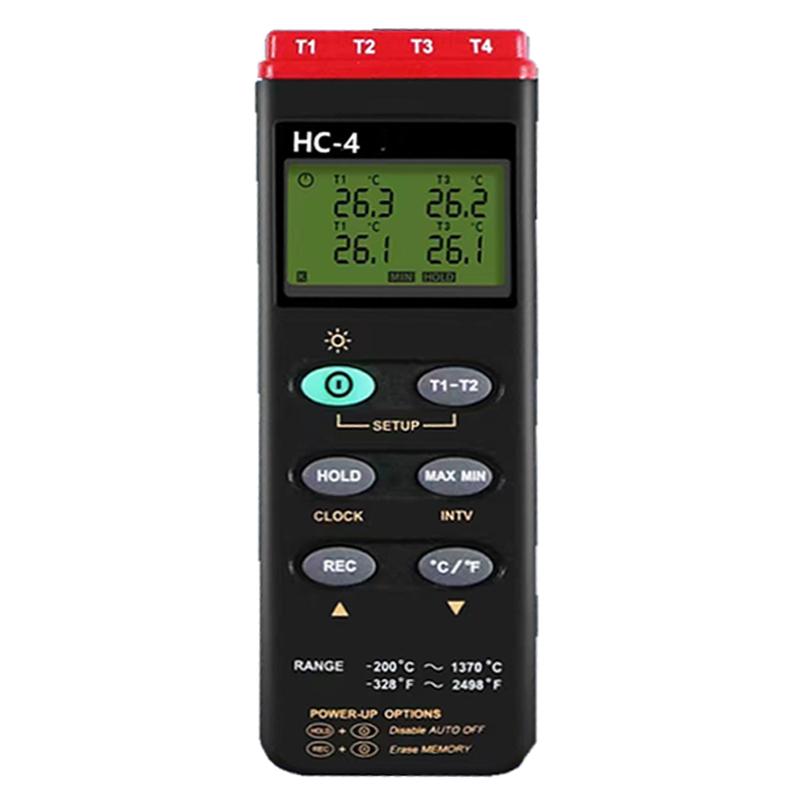

3. It can be tested multiple times, downloaded once, and the digital display makes the status of each temperature measurement line clear at a glance.
4. Parameter prefabrication can be completed with only two-button operation.

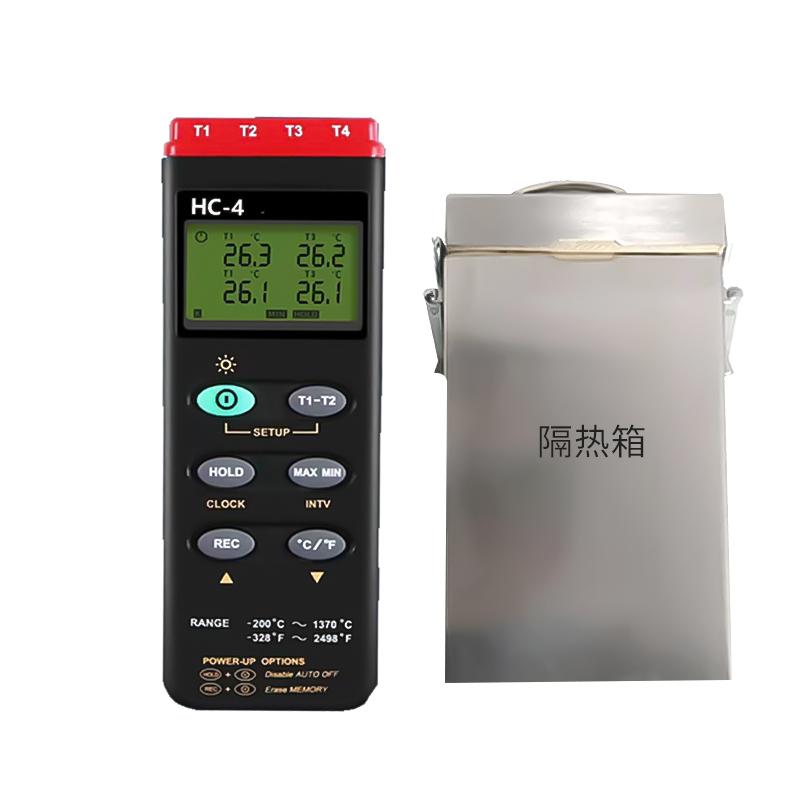

5. The performance of the insulation box is good, exceeding the imported products to ensure the stable operation of the system.
Principle
Collect temperature data through K-type Thermocouple Sensor, use High Accuracy Recording System for temperature mapping in harsh thermal environment, track and monitor Heat Treatment Furnace and product temperature throughout the process, obtain data and form Linear dispersion report through software analysis system to help engineers understand the true temperature status and optimize operating parameters.
Applications
Dacromet coated paintings
Steps
1. Preform parameters and set the sampling rate.
2. Use the two-button operation to start the tracker.
3. Place the equipment in a heat treatment environment for temperature monitoring.
4. Download the data once after multiple tests.

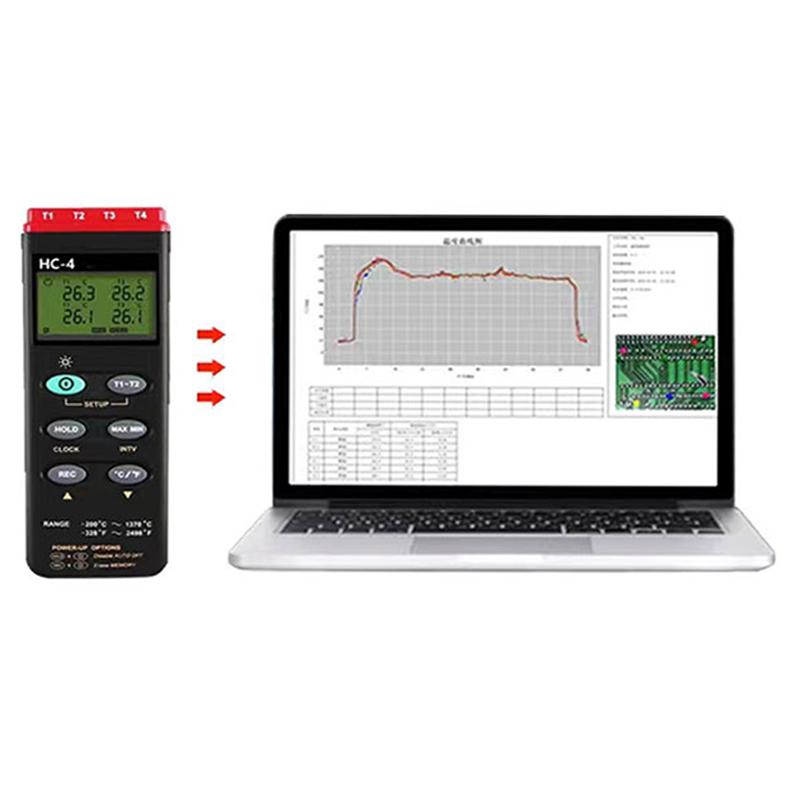

5. Process data and generate reports through a software analysis system.
Notice
• Ensure that the insulation box is used within the specified temperature and time range, such as 400 ° C for 60 minutes or 300 ° C for 90 minutes.
• Customize the use time of the heat insulation box according to the actual situation of the user.
• Pay attention to parameter prefabrication and sampling rate selection during operation.
• Regularly Check Equipment Status to Ensure High Accuracy and Stability.
