Overview

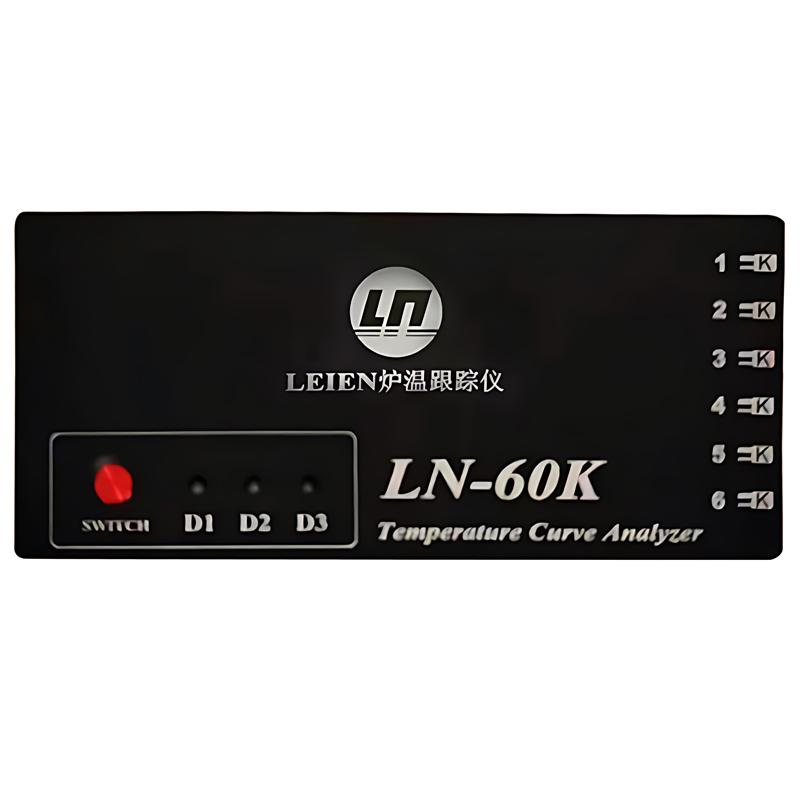

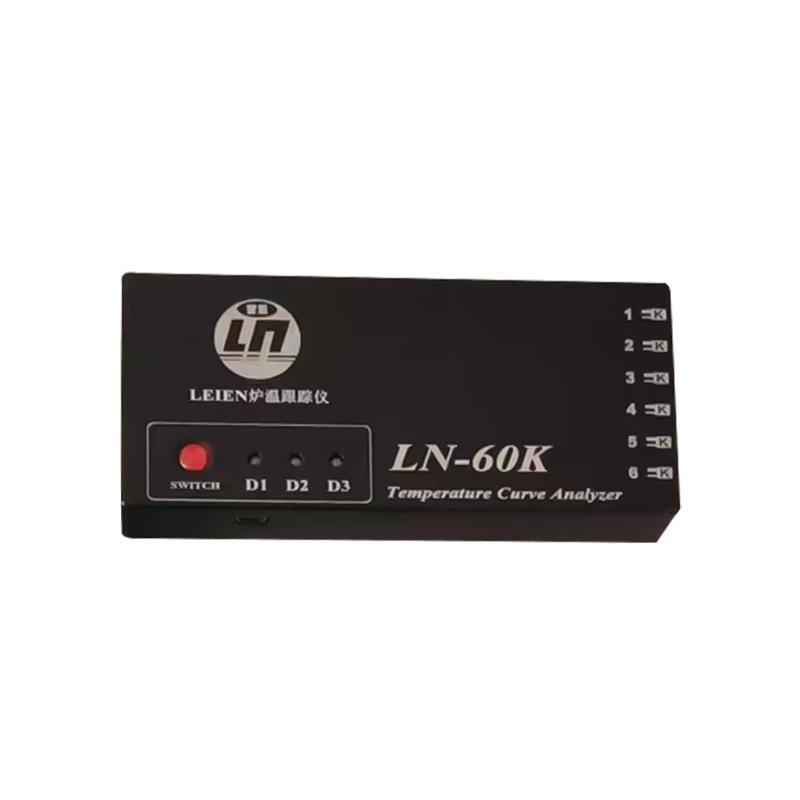

LN-60K Dacromet Furnace temperature tracker is a LeiEn brand product specially designed for Dacromet coating paintings, which can effectively track the temperature change during the stoving process and provide accurate and reliable temperature data. The instrument has excellent thermal insulation performance to ensure safe and stable operation in high temperature environments. It can track and map multi-directional temperature Linear dispersion, and provide optimization suggestions with analysis software to help improve product quality and achieve stable production and energy saving goals.
Features
1. Specially designed for Dacromet coating painting, highly targeted; 2. Excellent thermal insulation performance to ensure safe and stable operation in high temperature environment; 3. Support multi-directional temperature Linear dispersion tracking and mapping; 4. Analysis software can comprehensively analyze and calculate the collected data and provide optimization suggestions; 5. High performance price ratio, small size and light weight; 6. Flexible memory, user can choose the sampling rate; 7. Measurement range, accuracy up to +/- 0.3 ℃.
Principle
LN-60K Furnace temperature tracker collects temperature data in real time through K-type Thermocouple Sensor, and records the temperature status of the heating furnace and products throughout the process with the heating furnace. The instrument uses heat insulation box and nano aerospace environmental protection materials to ensure Stability in high temperature environment. The collected data is comprehensively analyzed and calculated by analysis software to generate temperature Linear dispersion and various analysis reports to provide users with optimization suggestions.
Applications
Dacromet coating stoving, powder stoving, paints stoving, motor stator dipping paint curing stoving, non-stick pan Coating stoving, vacuum display welding, water chill down aluminum brazing, metal heat treatment temperature test
Steps
1. Connect the K-type Thermocouple Sensor; 2. Set the sampling rate (such as 1s, 2s, etc.); 3. Start the instrument for temperature data collection; 4. Record the temperature status throughout the process with the heating furnace; 5. Export the data through the computer and print the temperature Linear dispersion and analysis report; 6. Use the analysis software for comprehensive data analysis and calculation.
Notice
* The instrument is suitable for the Temperature range below 800 ℃, please do not use it beyond the limit; * The performance of the thermal insulation box can be maintained for 60 minutes at 400 ℃, and 90 minutes at 300 ℃, and the time limit should be paid attention to when using it; * The sampling rate can be selected by the user, but the memory recording time is related to the rate and needs to be set reasonably; * The computer has no special requirements, but it is necessary to ensure that the connection is normal to derive data; * The instrument size and thermal insulation box range can be customized according to the actual situation of the user, please confirm the specifications before use; * Sensor is K-type Thermocouple, which needs to be connected correctly to ensure Measurement accuracy.
