Overview

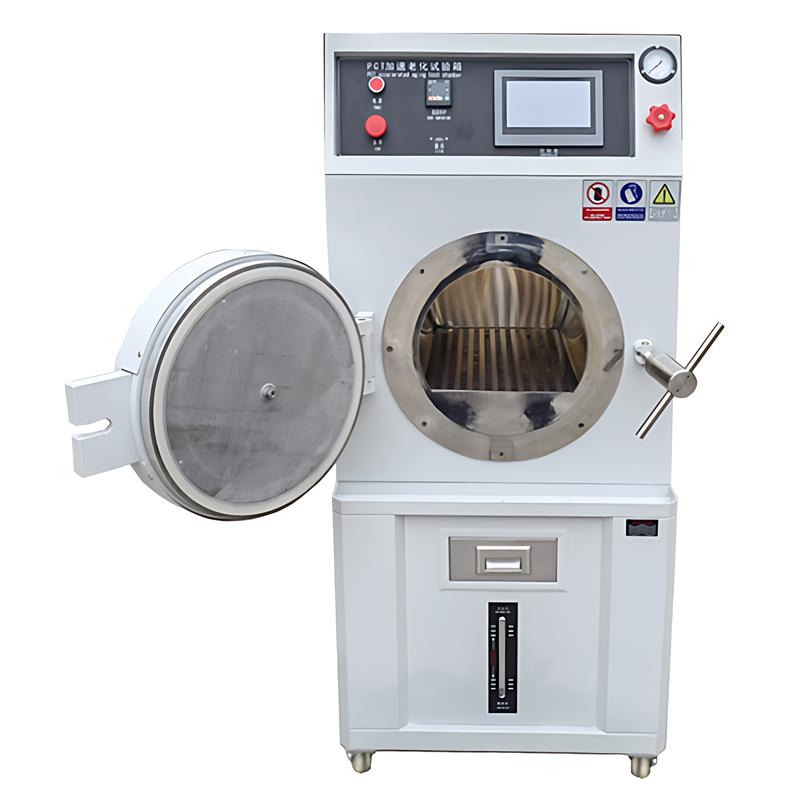

The NBC-PCT accelerated weathering test box is an efficient test equipment, mainly used in the industrial field to verify the durability and Stability of products. The equipment adopts a round stainless steel inner box structure, which meets the industrial safety container standard, which can prevent condensation and dripping during the test, and avoid the direct impact of steam overheating. Equipped with copper pipe + bell mouth water pipe design, good air tightness and low water consumption. The special high temperature resistant rubber foam forming packing material enhances pressure resistance and life. At the same time, it has air cleanliness technology, timing drying function and 16L large-capacity water tank active automatic water replenishment system to effectively prevent the heating pipe from dry burning.
Features
1. The round inner box is made of stainless steel structure, which meets the industrial safety container standards and can prevent condensation and dripping during the test
2. Round liner design to avoid direct impact of steam overheating
3. The water pipe adopts copper pipe + bell mouth, precision design, good air tightness, and low water consumption
4. The special packing material is high temperature resistant foam molding. When the pressure of the inner box increases, the backpressure of the packing makes it more closely combined with the box and prolongs the life.
5. Increase air cleanliness technology to ensure the purity of the box
6. Critical point LIMITED automatic Safety protection, provide abnormal causes and fault tips
7. The machine has a timing drying function, so that the test product is in the drying state
8. The water tank adopts 16L large capacity, is placed at the bottom of the box, and adopts an active automatic water replenishment system to effectively prevent the heating pipe from dry burning, the test is not broken, and the pressure is automatically drained at the end of the test
Principle
The test chamber is controlled by microcomputer + P.I.D. + S.S.R automatic calculation of saturated steam temperature degree to achieve accurate temperature and pressure adjustment. The internal structure of circular stainless steel, combined with air cleanliness technology, ensures the pure environment in the box. During the test, the equipment automatically controls the temperature rise, pressure and Humidity to achieve the set saturated steam conditions to simulate the aging environment, and maintains the product drying state through the timing drying function.
Applications
Industrial field
Standards
Industrial Safety Container Standard
Steps
1. Set the time range from 0 to 999 hours
2. Temperature range 105 ℃~ 132 ℃
3. Set pressure range 0.2Kg/cm2~ 2.0 Kg/cm2 or 2.2 Kg/cm2
4. Start the equipment, and the microcomputer automatically calculates and controls the saturated steaming temperature
5. The equipment is automatically raised and pressurized, and the pressure is automatically drained at the end of the test
Notice
- Make sure the power supply is AC380V 50Hz 4kw
- Control point pressure safety capacity of 3.5Kg/cm2, do not exceed the limit
- Heating time from room temperature to 135 ° C in about 40 minutes, pressurization time from 0.0Kg/cm2 to 2.2Kg/cm2 in about 45 minutes
- Note temperature distribution ≤ +/- 2.0 ℃, control accuracy ≤ +/- 0.5 ℃
- The automatic water replenishment system of the water tank needs to operate normally to prevent the heating pipe from dry burning
- Observe abnormal prompts during the test and deal with faults in a timely manner
