Overview

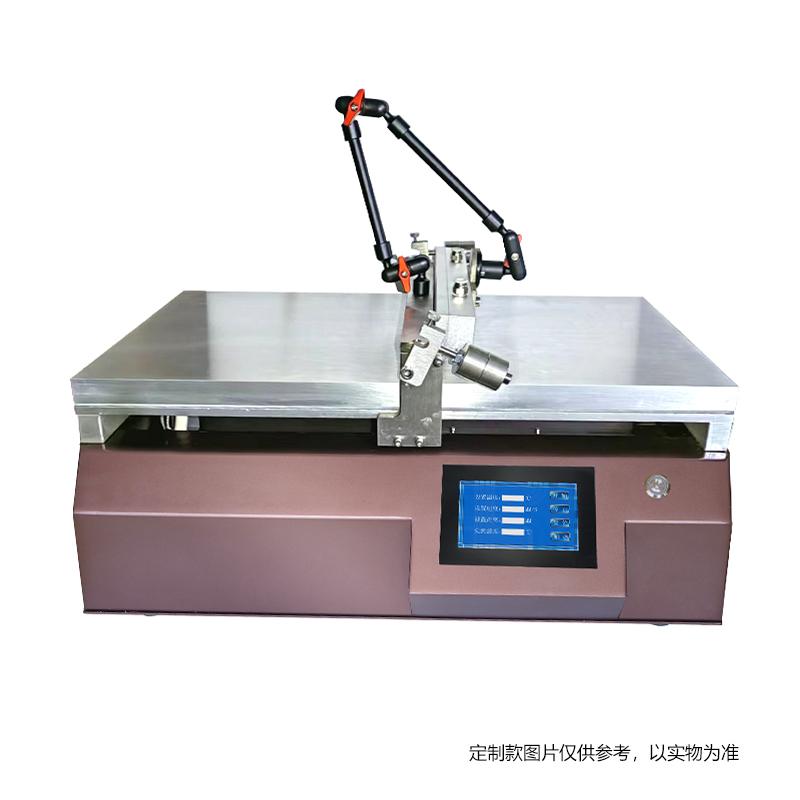

The TBJ-X3-ABO5 Automatic Film Applicator for Perovskites is equipped with imported High Accuracy Mayer Rods, which has heating and Vacuum chuck functions. It uses a nitrogen gas source to accelerate the drying of the perovskite solution, and realizes 360-degree angle adjustment of the air knife. Dry-Film can be as thin as nano-level. The device solves the problem of artificial film inconsistency through automated Spreader, which significantly improves film reproducibility. Spreader can produce accurate wet-film on different substrates.
Features
1. Equipped with Imported High Accuracy Mayer Rods, Spreader accuracy up to +/- 0.001mm
2. With heating function, Temperature range RT +~ 180 ℃, uniformity +/- 3 ℃
3. Vacuum chuck fixed substrate, adsorption size 400 * 300mm
4. Equip the air knife and air knife bracket, and use nitrogen to accelerate the drying solution
5. Air knife supports 360-degree angle adjustment
6. Coating speed 5~ 200mm/s, stepless speed control
7. dry-film thickness up to nano level
8. Touchscreen control, easy to operate
Principle
The Automatic Film Applicator unifies the perovskite solution of the Spreader on the surface of the substrate through Mayer Rods, and uses the Vacuum chuck system to fix the substrate to ensure the flatness of the Spreader. In the Spreader process, Platen Heating and nitrogen gas knife are used to accelerate drying, and the preparation of nano-thick Dry-Film is realized by precisely controlling the speed, pressure and temperature parameters of the Spreader.
Applications
Perovskite materials preparation, photovoltaic device development, new material Spreader, laboratory sample preparation
Steps
1. Place the substrate on the Vacuum chuck table to fix
2. Set Spreader parameters (Speed, Travel, Temperature, etc.) through Touchscreen
3. Install the right Mayer Rods
4. Adjust the angle and position of the air knife
5. Start the Spreader
6. Wait for Spreader and drying to finish
7. Remove the sample completed by Spreader
Notice
• Make sure the equipment is placed horizontally before use
• Spreader check bar model matches the required thickness
• Vacuum chuck system needs to be kept clean and unobstructed
• Air knives use nitrogen as a gas source
• The heating temperature must not exceed 180 ° C
• Spreader speed setting should be within the range of 5~ 200mm/s
• Regularly clean coating tables and bars
• Customized functions need to confirm technical parameters in advance
