Overview

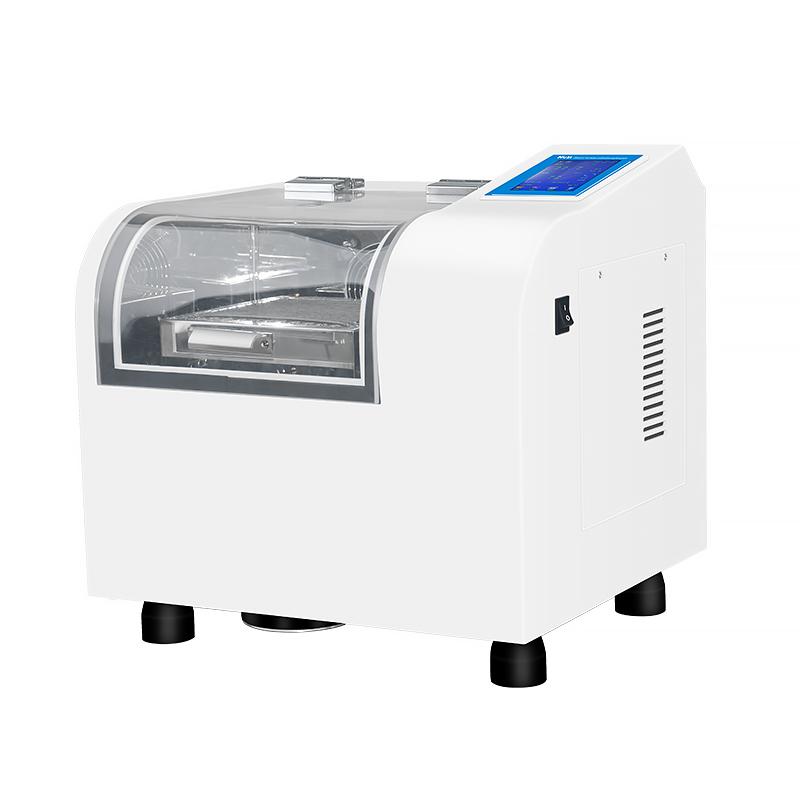

HT-20TG thermostatic gas bath Shaker is a HUXI brand of thermostatic foster and oscillation function in one of the experimental equipment, suitable for universities, medical, Petrochemicals, health and epidemic prevention, environment monitoring and other scientific research departments, for biological, biochemical, cell, strains and other liquid, solid compound oscillation foster, especially suitable for temperature, Oscillation Frequency have higher requirements of experimental samples.
Features
1. Integrate thermostatic incubator and Shaker into one, saving space, small footprint, more functions and less investment
2. Silent design of the whole machine, the outer box adopts Cold rolled steel plate electrostatic spray box, strong corrosion resistance
3. Tilt humanized control panel, large screen backlit LCD screen, with good visual effect
4. The entire working status of the large viewing window is clear
5.304 electropolished mirror stainless steel liner
6. The tray and fixture are made of stainless steel, which is resistant to corrosion and easy to disassemble and clean
7.50Mm thick thermal insulation layer, good thermal insulation effect
8. DC brushless motor design, wide speed regulation, constant torque, constant Rotation speed, brushless, maintenance-free
9. Three-dimensional integrated partial three-wheel drive, smooth, stable, durable and reliable operation
Principle
The device drives a three-dimensional integrated partial three-wheel system through a brushless DC motor to achieve stable oscillation, and at the same time uses a thermostatic Control system to maintain the set temperature, combined with a 50mm thick thermal insulation layer to ensure uniform and stable temperature, and realizes the thermostatic oscillation foster function.
Applications
Universities, medical, Petrochemicals, health and epidemic prevention, environment monitoring
Steps
1. Connect the AC220V 50HZ power supply
2. Set Temperature, Oscillation Frequency, Timing and other parameters through 5 inch Touchscreen
3. Select set or programmed mode
4. Set forward or reverse mode
5. Place the experimental sample on a stainless steel tray
6. Start the device and start running
7. Monitor working status through a large viewing window
Notice
• Ambient Temperature should be kept within 5 ℃~ 40 ℃
• Power supply voltage AC220V 50HZ before use
• Regularly clean stainless steel pallets and fixtures
• Note that the maximum configuration capacity of the device: 250ml * 6 pcs or 100ml * 10 pcs or 50ml * 12 pcs
• Net weight of equipment 42kg, pay attention to safety when handling
