Overview

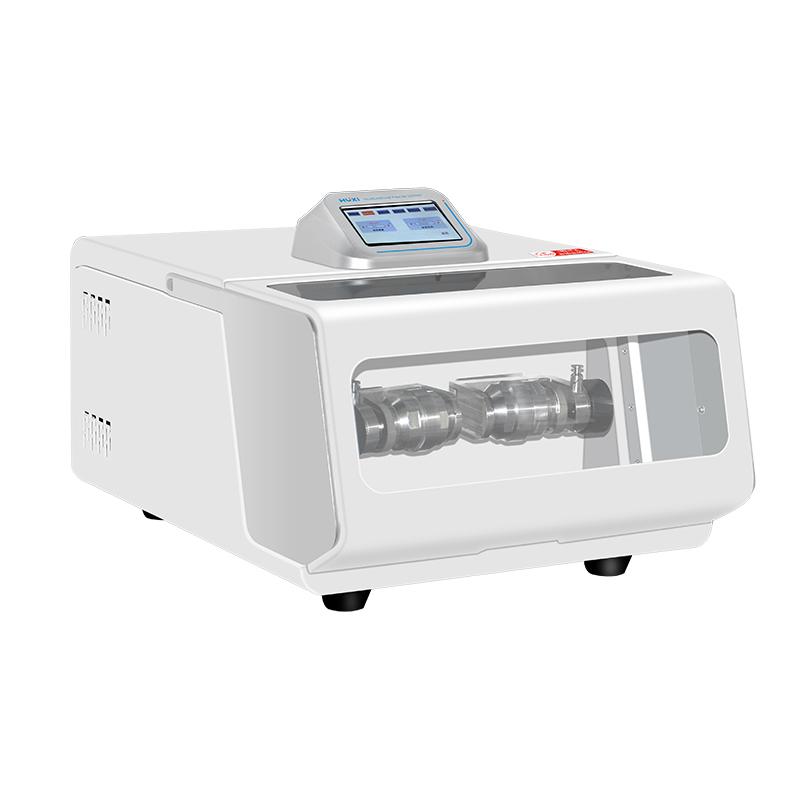

HMD-400 Multifunctional Freeze Grinding Instrument is HUXI brand fine grinding and fine grinding equipment specially for laboratory processing of hard, medium hard and brittle samples. The equipment is suitable for cereals, oilseed, soil, Tobacco, wood, animal feed, cheese, fruit, bone, hair, plant and animal tissue, fertilizer, electronic waste, sludge, alloy, coal, ore, chemicals, plastics, ceramics, Glass, DNA extraction and other samples.
Features
1. Adopt large-screen Touchscreen operation display, the operation settings are simple and easy to understand, and there is a memory function to store a variety of operation programs
2. Intelligent control, ground time controllable, time and speed can be set and displayed
3. High repeatability of ground results
4. Fast grinding and homogenization, short grinding time, fast sample for XRF analysis. Processing capacity is large
5. Dual tank grinding and provides high throughput grinding for biological samples
6. A variety of different materials, volume grinding tank to choose from, a wide range of applications, no loss of wet grinding, can be tightened, sealing type grinding tank design
7. Comfortable low temperature grinding, can be used for heat sensitive materials without long freezing process, very little liquid nitrogen consumption
8. Crushing of animal and plant cell tissue or suspension cells, can handle more than 10 samples at a time
9. Low temperature grinding prevents molecular degradation due to pressure and heat
10. For most materials, it only takes tens of seconds to grind, mix and homogenize the sample
Principle
The equipment realizes the crushing, grinding, mixing and homogenization of samples through vibration grinding, uses low temperature grinding technology to protect heat-sensitive materials, and controls the grinding effect through adjustable vibration speed and Frequency.
Applications
Grains, Soil, Cheese, Ceramics, Plastics, Wood, Tobacco, Fruits
Steps
1. Set up the grinding program through the large screen Touchscreen
2. Select and install the appropriate grinding tank
3. Set grinding time and speed parameters
4. Start the equipment for ground processing
5. Remove the sample after finishing grinding
Notice
• Sample feed size should not exceed 8mm
• Select the appropriate grinding method and grinding tank according to the sample characteristics
• Pay attention to the grinding time setting, the regular grinding time is 1-3 minutes
• Pay attention to the safety of liquid nitrogen when using low temperature grinding
• Regularly check the operating status of the equipment and the sealing of the grinding tank
