Overview

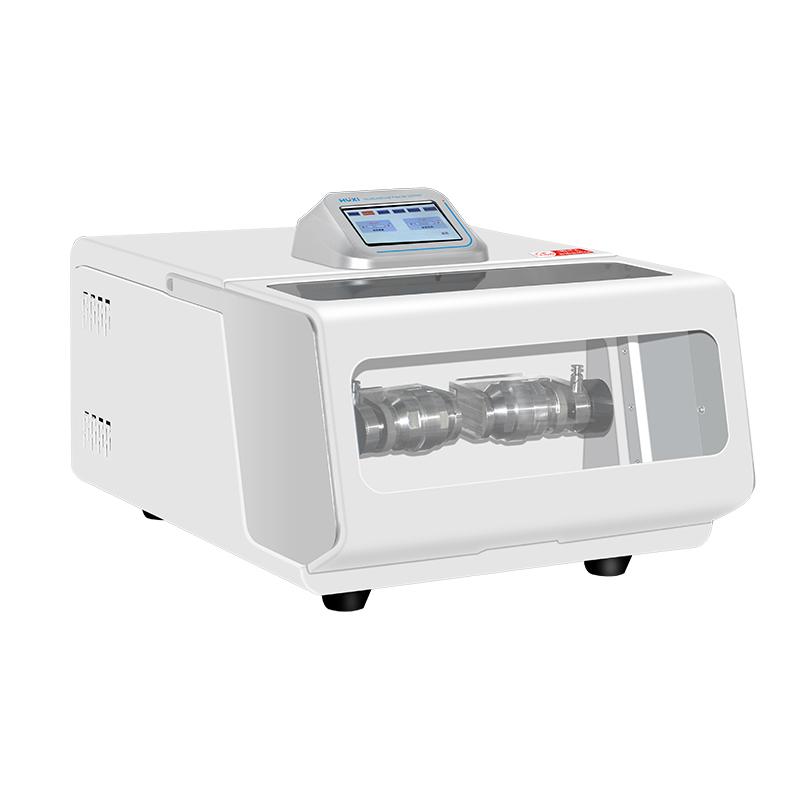

The HMD-400 Multifunctional Freeze Grinding Instrument is a HUXI brand equipment designed for laboratories, for fine grinding and fine grinding of hard, medium hard and brittle samples. Samples that can be processed include grains, oilseeds, soil, Tobacco, wood, animal feed, cheese, fruit, bone, hair, plant and animal tissue, fertilizer, electronic waste, sludge, alloy, coal, ore, chemicals, plastics, ceramics, Glass, DNA extraction, etc.
Features
1. Adopt large-screen Touchscreen operation display, the operation is simple and easy to understand, and it has a memory function to store a variety of operation programs
2. Intelligent control, ground time controllable, time and speed can be set and displayed
3. High repeatability of ground results
4. Fast grinding and homogenization, short grinding time, fast sample for XRF analysis. Processing capacity is large
5. Dual tank grinding and provides high throughput grinding for biological samples
6. A variety of different materials, volume grinding tank to choose from, a wide range of applications, no loss of wet grinding, can be tightened, sealing type grinding tank design
7. Comfortable low temperature grinding, can be used for heat sensitive materials without long freezing process, very little liquid nitrogen consumption
8. Crushing of animal and plant cell tissue or suspension cells, can handle more than 10 samples at a time
9. Low temperature grinding prevents molecular degradation due to pressure and heat
10. For most materials, it only takes tens of seconds to grind, mix and homogenize the sample
Principle
Sample Handling is achieved by vibrating the ground, with a vibration speed range of 60-1800r/min and a Frequency of 1-30Hz. By controlling the grinding time and speed parameters, combined with the optional grinding tank and adapter, the sample can be pulverized, ground, mixed and homogenized. Special support for low temperature grinding to protect heat sensitive materials.
Applications
Grains, Soil, Cheese, Ceramics, Plastics, Wood, Tobacco, Fruits
Steps
1. Set ground parameters (time, speed) through the large screen Touchscreen
2. Select and install the appropriate grinding tank or adapter
3. Place the sample in the ground container
4. Start the equipment for ground processing
5. Remove the sample after the grinding is completed
Notice
• Sample feed size should not exceed 8mm
• Grinding time can be set from 1 second to 99 minutes 59 seconds depending on sample characteristics
• Processing capacity does not exceed 2x20ml
• Dry grinding, wet grinding, low temperature grinding or high throughput grinding method can be selected according to sample characteristics
• Confirm that the grinding tank type is compatible with the sample before use
