Overview

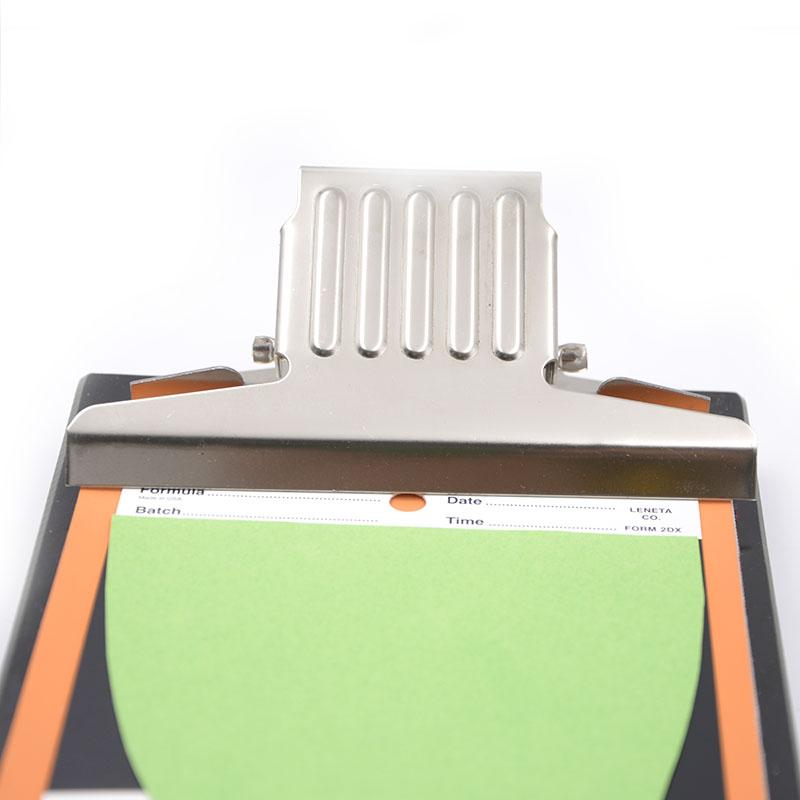

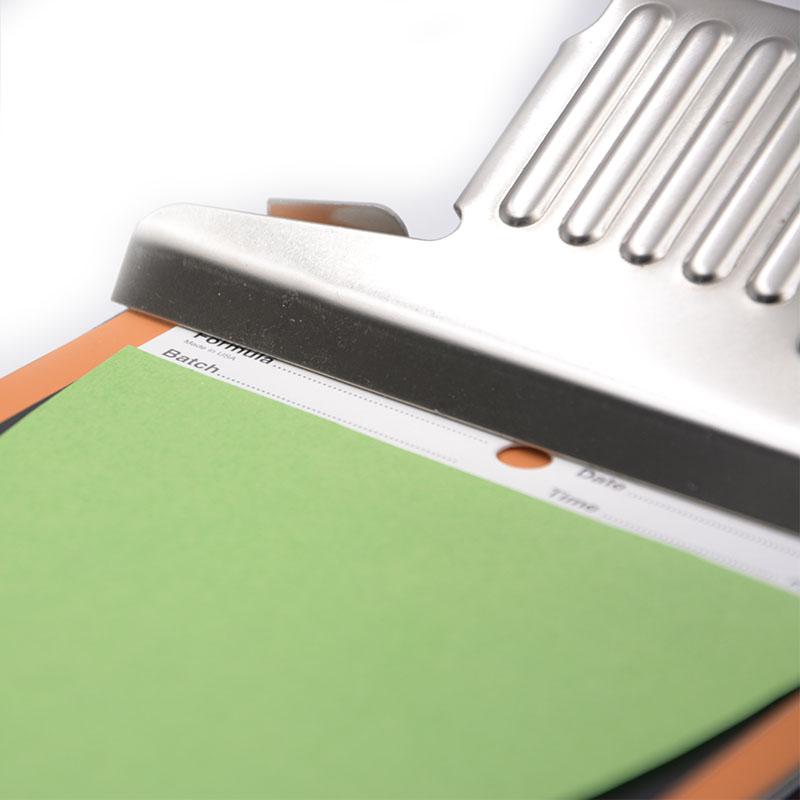

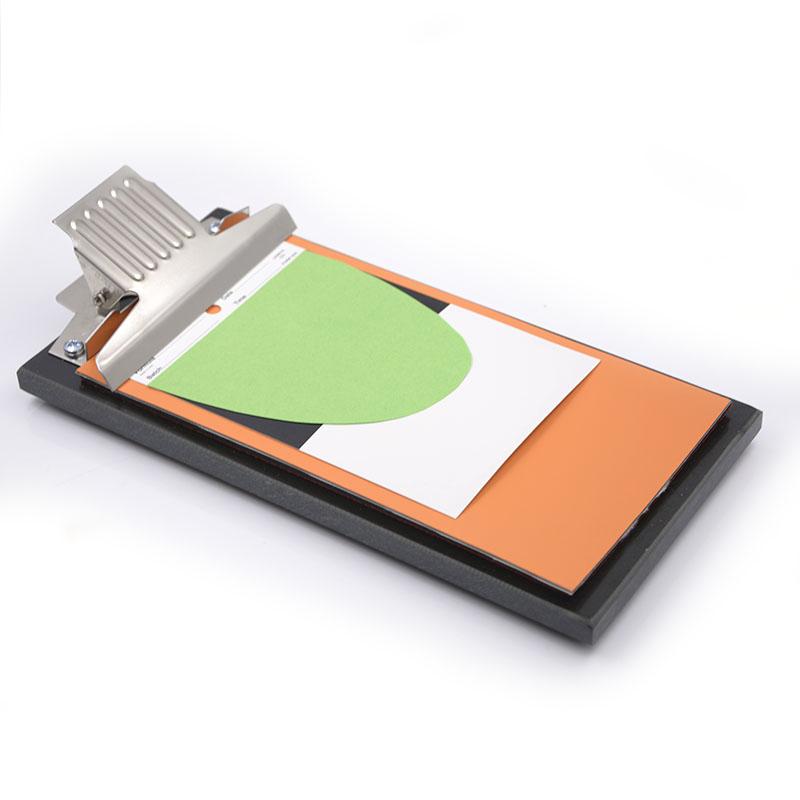

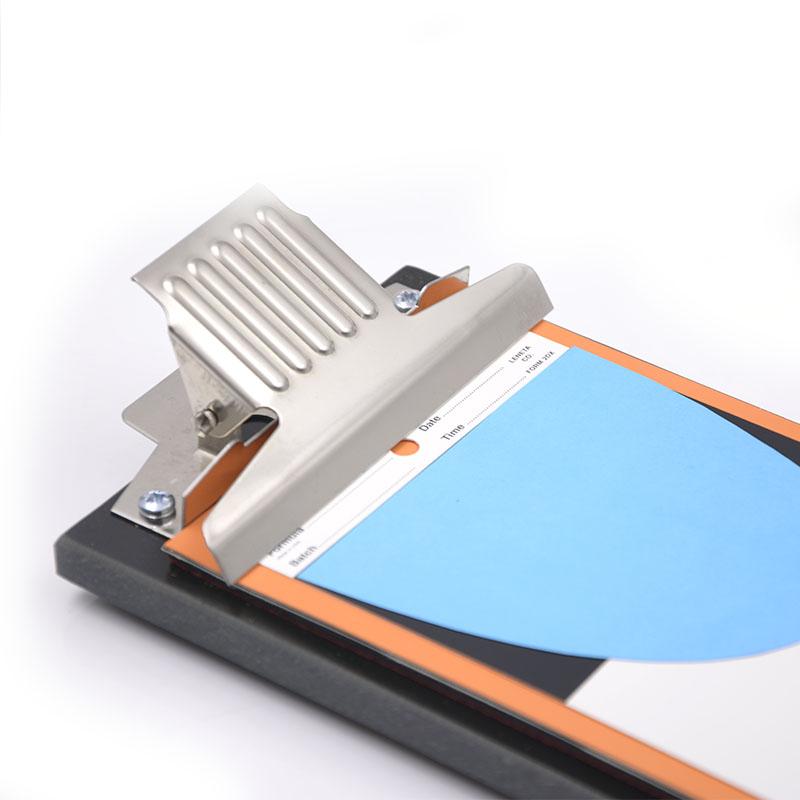

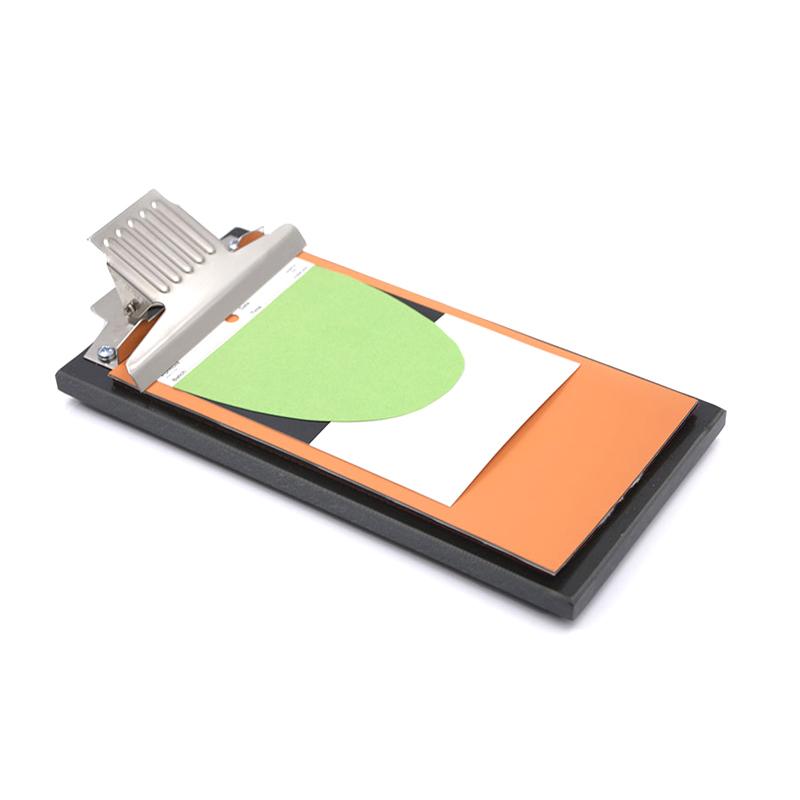

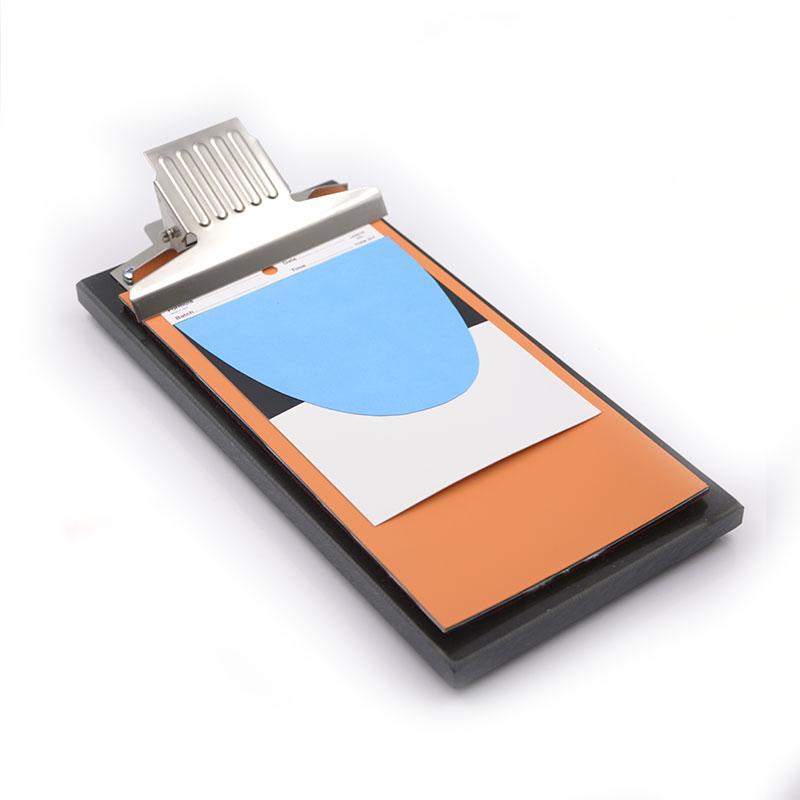

The RK KHC.20 Drawdown Plate is a small 11 × 18cm Drawdown Plate consisting of clips, rigid polyester sheets and foam/rubber cushions. Designed for proofing, this product absorbs operating pressure through a soft cushion, providing better Repeatability and proofing results than proofing directly on a hard substrate.
Features
1. Composed of clips, rigid polyester sheets and foam/rubber cushions, the structure is simple and practical
2. Soft foam/rubber liner can absorb operating pressure and improve proofing Repeatability
3. Compared with hard substrate direct proofing, the proofing effect is better
Principle
The Drawdown Plate absorbs the operator's applied proofing pressure through a soft foam/rubber pad, resulting in a more uniform pressure distribution during the Spreader process, resulting in better Repeatability and proofing results.
Applications
Research, testing, quality control, inks testing, Coating testing, Viscose testing, emulsion testing
Steps
1. Prepare the appropriate size substrate for proofing
2. Place the substrate on the embossing bed and clip it
3. Select the appropriate type of Spreader stick and place it near the clip on the embossing bed
4. Put the Proofing Coating or Gloss oil about 1cm below the Spreader stick
5. Hold both ends of the Spreader stick with both hands, pull in your own direction with constant speed and pressure, and do not turn the bar during operation
6. After proofing, put the Spreader stick into a suitable solvent to clean, wipe it dry with a cloth, and keep the bar drying
Notice
• Do not turn the bar during operation
• Spreader stick should be cleaned in time after proofing
• Spreader sticks should always be kept in a drying state
• Proofing paper and Spreader need to be purchased separately
