Overview

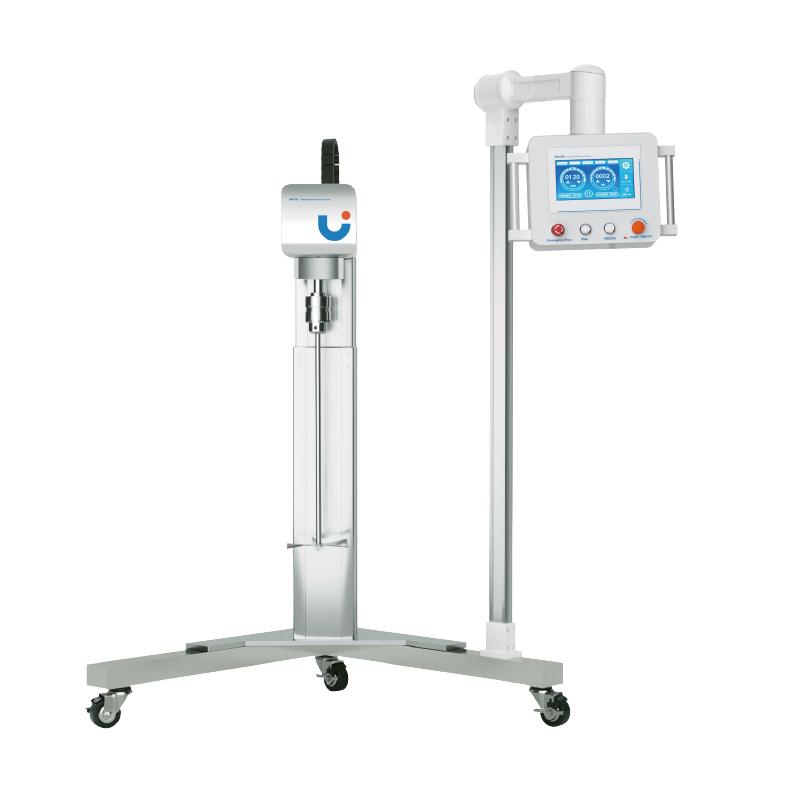

RWD500 high-power Stirrer is a high-performance equipment specially designed for laboratories, pilot workshops and industrial production. It consists of a drive motor, a distance increasing mechanism and a speed regulating controller. It is suitable for mixing and stirring large-capacity, low to medium and high viscosity materials, and is widely used in daily chemical, chemical, material and energy industries.
Features
1. Time setting range 0~ 9999min, can be adjusted arbitrarily
2. LCD screen real-time display of running time, Rotation speed and torque
3. Using brushless DC motor, high efficiency, large torque, no pollution, no spark, safe and reliable
4. Equipped with electric lifting function, Travel up to 500mm, can adjust the height according to experimental needs
5. The base is equipped with movable casters with brakes, which is convenient and fast to move
6. Built-in safety circuit, automatic overload and overheating protection, support worry-free continuous operation
7. Penetrating hole blade design, easy to operate, can run for a long time
8. Aluminum alloy lifting column, excellent material selection, stable operation, low noise, to ensure the mechanical lasting use and accuracy
Principle
The Stirrer is driven by a brushless DC motor, combined with a distance-increasing mechanism and a speed controller, to achieve precise Rotation speed and torque control. The motorized lift system allows users to adjust the mixing height according to experimental needs, ensuring efficient mixing of high-volume, different viscosity materials.
Applications
Daily chemicals, chemicals, materials, energy
Steps
1. Connect the power supply, ensure that the input voltage is 200~ 240V, Frequency 50~ 60HZ
2. Use keys, knobs or touch to set Speed range 100~ 1500rpm and Timer Range 0~ 9999min
3. Adjust the stirring height through the electric lifting function, the maximum Travel 500mm
4. Start the device, and the LCD screen monitors the operating parameters in real time
5. After the operation, turn off the power and perform cleaning and maintenance
Notice
• Ensure that the Ambient Temperature is within the range of 5~ 40 ° C, and the Humidity does not exceed 80%
• Power supply voltage is checked before use to avoid overload operation
• Maintain the equipment regularly to ensure the normal operation of the lifting mechanism and chuck
• Use brake casters to fix the position when moving to prevent accidental sliding
• In case of abnormality during operation, stop the machine immediately and check the safety circuit
