Overview

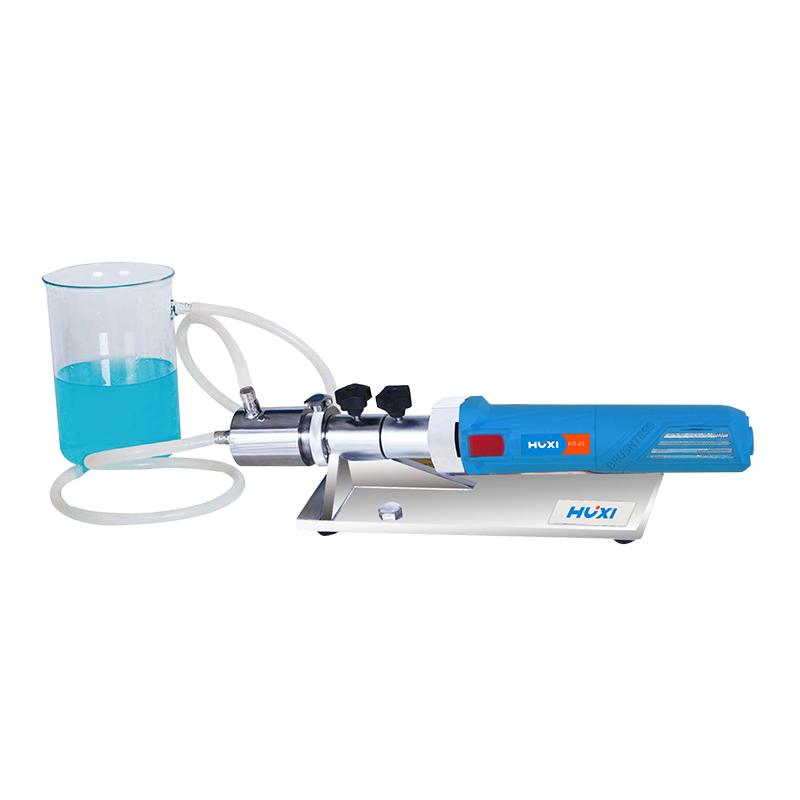

The HZR-25 online Mulser is a high-efficiency emulsification mixing equipment with a lightweight, Modular structure design, easy operation and support for long-term continuous operation. The equipment ensures that 100% of the material passes through the shearing cavity to achieve efficient homogenization without dispersion dead ends. It is suitable for cyclic or continuous processing in laboratory simulated online working conditions to complete online dispersion, emulsification, homogenization and mixing processes.
Features
1. Using brushless motor high-speed motor, long-life design, can run continuously for a long time
2. Rotation speed up to 30000rpm, providing shear line speed up to 27m2/s
3. The working head and machine base are made of stainless steel, which is resistant to corrosion
4. Excellent sealing effect, unique stator and rotor structure produces super shear force, rapidly reducing particle size, processing materials more finely, more evenly dispersed
Principle
Through the unique stator and rotor structure to generate super shear force, the material 100% through the shear cavity, quickly reduce the particle size under high-speed swirl/spin, to achieve efficient homogenization and dispersion, no dispersion dead angle.
Applications
Laboratory online processing
Steps
1. Connect the power supply (220V/50Hz)
2. Rotation speed according to material characteristics (7500~ 30000rpm range)
3. Adjust Rotation speed through gear adjustment and scale display
4. Start the equipment for cyclic or online continuous processing
5. Turn off the power after processing is completed
Notice
• Only allowed to use within the Ambient Temperature range of 5-40 ° C
• Environmental humidity shall not exceed 80%
• Maximum processing viscosity does not exceed 10000CP
• The stirring amount is controlled within the range of 1-30L/min
• Power supply voltage 220V/50Hz before use
